The MAM1Q00A-QSA-BCC is a Blue Cable Co QSFP+ to SFP+ adapter, compatible with NVIDIA Mellanox platforms. It enables an SFP+ or SFP transceiver to be installed directly into a QSFP+ port, providing a cost-effective solution for connecting 10GbE SFP+ or 1GbE SFP equipment to switches and NICs with QSFP+ ports. The adapter uses lane 1 of the QSFP+ connector and is plug-and-play with all major SFP+ transceivers, AOC, and DAC cables. Backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP+ to SFP+ adapter — accepts any SFP+ or SFP transceiver, AOC, or DAC
• Enables 10GbE SFP+ or 1GbE SFP connectivity on QSFP+ ports of Mellanox switches and NICs
• Uses lane 1 of the QSFP+ connector — single lane, not a 4x10G breakout
• SFF-8636 compliant I2C management interface — passes through SFP transceiver identity to the host
• Low insertion loss with matched impedance design
• Secure latching mechanism for reliable retention in the QSFP+ cage
• Compliant with QSFP+ MSA SFF-8436 and SFP+ MSA SFF-8418/8419
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 0.1W
• RoHS compliant

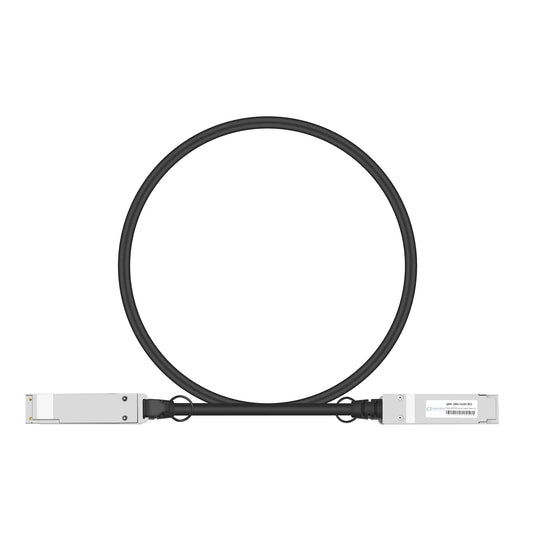

Blue Cable Co 100GbE QSFP28 passive direct attach copper (DAC) cables are a power-efficient, plug-and-play alternative to optical fibre for short-reach 100G connections between QSFP28 ports, compatible with NVIDIA Mellanox platforms. Available in lengths from 1m to 5m, cables up to 2m operate as CA-25G-N (no FEC required) for low-latency deployments, while 2.5m to 5m variants are CA-25G-L and require RS-FEC to be enabled on the host. All variants feature an LSZH jacket and halogen-free PCB construction, and are backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive DAC — no power supply or configuration required
• 100GbE QSFP28 to QSFP28 passive direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 1.5m, 2m, 2.5m, 3m, and 5m lengths — select your variant above
• 1m, 1.5m, and 2m variants: CA-25G-N compliant — no FEC required, low latency
• 2.5m, 3m, and 5m variants: CA-25G-L compliant — RS-FEC must be enabled on the host
• Four-lane passive copper construction, each lane operating at up to 25Gb/s
• SFF-8665 compliant QSFP28 connectors with SFF-8636 compliant I2C management interface
• LSZH (Low Smoke Zero Halogen) jacket with halogen-free, lead-free PCB
• BER better than 1E-15 with Mellanox systems
• Maximum power consumption: 0.1W
• Operating case temperature range: 0°C to +70°C
• RoHS compliant

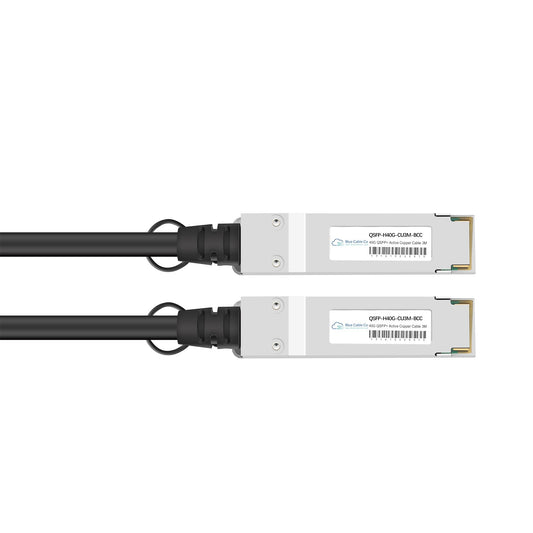

Blue Cable Co 40GbE QSFP+ passive direct attach copper (DAC) cables provide a power-efficient, plug-and-play alternative to optical fibre for short-reach 40G connections between QSFP+ ports, compatible with NVIDIA Mellanox platforms. Available in lengths from 1m to 5m, these passive copper cables require no additional power and deliver reliable 40Gb/s Ethernet connectivity across four lanes. Each cable is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility, stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive DAC — no power supply or configuration required
• 40GbE QSFP+ to QSFP+ passive direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 2m, 3m, 4m, and 5m lengths — select your variant above
• Four-lane passive copper construction operating at up to 40Gb/s aggregate
• SFF-8685 compliant QSFP+ connectors with SFF-8636 compliant I2C management interface
• BER better than 1E-15
• Maximum power consumption: 0.1W
• Operating case temperature range: 0°C to +70°C
• RoHS compliant
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

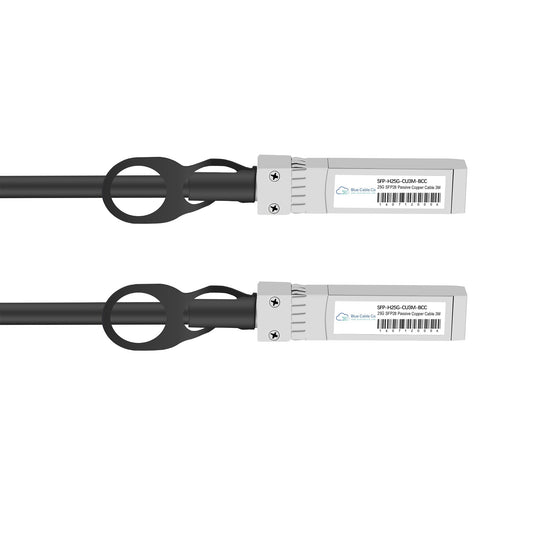

Blue Cable Co 25GbE SFP28 passive direct attach copper (DAC) cables are a power-efficient, plug-and-play alternative to optical fibre for short-reach 25G connections between SFP28 ports, compatible with NVIDIA Mellanox platforms. Available in lengths from 1m to 5m, cables up to 2m operate as CA-25G-N (no FEC required) for low-latency deployments, while 2.5m to 5m variants are CA-25G-L and require RS-FEC to be enabled on the host. All variants feature an LSZH jacket and are tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive SFP28 DAC — no power supply or configuration required
• 25GbE SFP28 to SFP28 passive direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 1.5m, 2m, 2.5m, 3m, 4m, and 5m lengths — select your variant above
• 1m, 1.5m, and 2m variants: CA-25G-N compliant — no FEC required, low latency
• 2.5m, 3m, 4m, and 5m variants: CA-25G-L compliant — RS-FEC must be enabled on the host
• SFF-8402 compliant SFP28 connectors with SFF-8636 compliant I2C management interface
• LSZH (Low Smoke Zero Halogen) jacket — suitable for data centre environments
• BER better than 1E-15 with Mellanox systems
• Maximum power consumption: 0.1W per end
• Operating case temperature range: 0°C to +70°C
• RoHS-6 compliant, halogen-free PCB
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

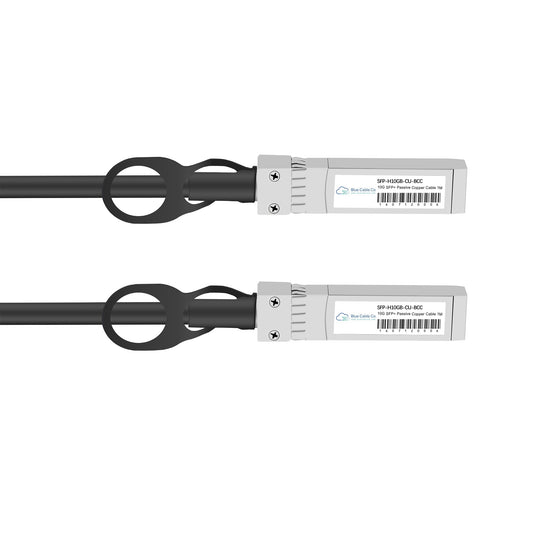

Blue Cable Co 10GbE SFP+ passive direct attach copper (DAC) cables provide a power-efficient, plug-and-play alternative to optical fibre for short-reach 10G connections between SFP+ ports. Compatible with NVIDIA Mellanox platforms, these passive copper cables require no additional power and deliver 10Gb/s connectivity with ultra-low crosstalk and low insertion loss. Available in lengths from 1m to 5m, each cable is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play passive DAC — no power supply or configuration required
• 10Gb/s SFP+ to SFP+ direct attach copper cable, NVIDIA Mellanox compatible
• Available in 1m, 1.5m, 2m, 3m, and 5m lengths — select your variant above
• Passive copper construction — no active components, lower power draw than optical alternatives
• Ultra-low crosstalk and low insertion loss for reliable 10GbE signal integrity
• Compliant with SFF-8418 and SFF-8419 specifications
• BER better than 1E-15
• Operating case temperature range: 0°C to +70°C
• RoHS-6 compliant
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMS1V70-CM-BCC is a Blue Cable Co 100GbE DR1 single-mode QSFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Using PAM4 modulation on a single 1310nm optical lane via a duplex LC connector, it supports reaches of 2m to 500m on single-mode fibre. Its primary application is bridging legacy 100GbE NRZ systems to emerging 400GbE PAM4 infrastructure — four MMS1V70-CM-BCC modules can connect to a single 400GbE QSFP-DD DR4 transceiver over a single-mode splitter cable. This plug-and-play module is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility, stocked and shipped from Sydney, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP28 form factor — no additional configuration required
• 100Gb/s DR1 single-lane PAM4 optical interface at 1310nm nominal wavelength
• Converts 4x25Gb/s NRZ electrical input to a single 100Gb/s PAM4 optical signal
• Single-mode fibre with duplex LC connector — no MPO cabling required
• Operating reach: 2m to 500m on single-mode fibre (per datasheet, depends on fibre and link conditions)
• Designed to bridge 100GbE NRZ and 400GbE PAM4 infrastructure
• Four units connect to a single 400GbE QSFP-DD DR4 transceiver via single-mode splitter cable
• SFF-8636 compliant digital diagnostic monitoring (DDM) via I2C management interface
• Hot-pluggable QSFP28 form factor for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Maximum power dissipation: 4W
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA1L10-CR-BCC is a Blue Cable Co 100GbE 100GBASE-LR4 single-mode QSFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Using four LAN-WDM DFB laser channels multiplexed over a duplex LC/UPC connector on G.652 single-mode fibre, it supports link lengths of up to 10km — making it well suited to inter-building and campus-scale 100G deployments. Per-lane digital diagnostic monitoring (DDM) is included for both transmit and receive paths. This plug-and-play module is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility, stocked and shipped from Sydney, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP28 form factor — no additional configuration required
• IEEE 802.3ba 100GBASE-LR4 compliant, 100Gb/s via 4x25.78Gb/s LAN-WDM channels
• Four DFB laser transmitters across LAN-WDM wavelengths (1294–1310nm range) multiplexed over duplex LC/UPC connector
• Single-mode fibre (G.652 compliant) — standard duplex LC infrastructure, no MPO cabling required
• Maximum link length of 10km (per datasheet, depends on fibre and link conditions)
• Per-lane DDM covering Rx/Tx optical power, Tx bias current, supply voltage, and case temperature
• Selectable retiming for both Tx and Rx; CDR enabled by default for 100G operation
• Hot-pluggable QSFP28 MSA form factor for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 3.5W
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA1B00-C100D-BCC is a Blue Cable Co 100GbE 100GBASE-SR4 multi-mode QSFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Operating at 850nm across four parallel channels via an MPO connector, it supports up to 100m on OM4 fibre and up to 70m on OM3 fibre at 100Gb/s. The module also supports 40GBASE-SR4 operation, offering dual-rate flexibility in mixed-speed environments. This plug-and-play module includes SFF-8636 compliant digital diagnostic monitoring (DDM) and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP28 form factor — no additional configuration required
• IEEE 802.3 100GBASE-SR4 compliant, 100Gb/s via 4x25.78125GBd parallel channels
• Also supports IEEE 802.3 40GBASE-SR4 operation for dual-rate flexibility
• 850nm VCSEL transmitter over parallel multi-mode fibre with MPO connector
• Up to 100m on OM4 MMF; up to 70m on OM3 MMF at 100Gb/s (per datasheet, depends on fibre and link conditions)
• Up to 100m on OM3 MMF at 40Gb/s (per datasheet, depends on fibre and link conditions)
• SFF-8636 compliant DDM — covers supply voltage, temperature, Tx/Rx optical power, and laser bias
• Selectable retiming for both Tx and Rx directions
• Hot-pluggable QSFP28 design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Power dissipation: 2.2W typical / 2.5W maximum (with retiming)
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MC2210511-LR4-BCC is a Blue Cable Co 40GbE 40GBASE-LR4 single-mode QSFP+ optical transceiver, compatible with NVIDIA Mellanox platforms. Using four CWDM DFB laser channels multiplexed over a duplex LC connection at 1310nm, it supports link lengths of up to 10km on single-mode fibre — making it a strong fit for inter-building and campus-scale 40G deployments. This plug-and-play module includes digital diagnostic monitoring (DDM) and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP+ form factor — no additional configuration required
• IEEE 802.3ba 40GBASE-LR4 compliant, up to 40Gb/s over four CWDM channels
• 1310nm CWDM DFB laser transmitters with high-sensitivity PIN receivers
• Single-mode fibre with duplex LC connector — no MPO cabling required
• Maximum link length of 10km (per datasheet, depends on fibre and link conditions)
• Digital diagnostic monitoring (DDM) via SFF-8636 compliant I2C management interface
• Hot-pluggable QSFP+ design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Power consumption: 2.8W typical (up to 3.5W depending on variant supplied)
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA1B00-B150D-BCC is a Blue Cable Co 40GbE 40GBASE-SR4 multi-mode QSFP+ optical transceiver, compatible with NVIDIA Mellanox platforms. Operating at 850nm across four parallel channels via an MPO connector, it supports up to 150m on OM4 fibre and up to 100m on OM3 fibre at 40Gb/s. This plug-and-play module includes digital diagnostic monitoring (DDM) covering temperature, voltage, and optical power levels, and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Stocked and shipped from Sydney, Australia, and backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play QSFP+ form factor — no additional configuration required
• IEEE 802.3 40GBASE-SR4 compliant, 40Gb/s via 4x10.3125Gb/s parallel channels
• 850nm VCSEL transmitter over parallel multi-mode fibre with MPO connector
• Up to 150m on OM4 MMF; up to 100m on OM3 MMF (per datasheet, depends on fibre and link conditions)
• Digital diagnostic monitoring (DDM) — covers supply voltage, temperature, Tx/Rx optical power, and VCSEL bias
• Hot-pluggable QSFP+ design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Power dissipation: 1.3W typical, 1.5W maximum
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Stocked in Sydney, Australia for fast local dispatch
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA2L20-AR-BCC is a Blue Cable Co 25GbE 25GBASE-LR single-mode SFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Operating at 1310nm with a DFB transmitter and duplex LC connector, it supports link distances of up to 10km over ITU-T G.652.D rated single-mode fibre — making it well suited to inter-building and campus-scale 25G deployments. This plug-and-play module includes SFF-8472 compliant digital diagnostic monitoring (DDM) and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Every unit is backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play SFP28 form factor — no additional configuration required
• IEEE 802.3cc 25GBASE-LR compliant, 25.78125 Gb/s data rate
• 1310nm DFB transmitter with high-sensitivity PIN receiver
• Single-mode fibre with duplex LC connector
• Up to 10km reach over ITU-T G.652.D rated SMF (per datasheet, depends on fibre and link conditions)
• SFF-8472 compliant digital diagnostic monitoring (DDM) for real-time performance visibility
• Hot-pluggable SFP28 MSA form factor for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 1.0W
• RoHS compliant
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MMA2P00-AS-BCC is a Blue Cable Co 25GbE 25GBASE-SR multi-mode SFP28 optical transceiver, compatible with NVIDIA Mellanox platforms. Operating at 850nm with a duplex LC connector, it supports up to 100m on OM4 fibre and up to 70m on OM3 fibre at 25Gb/s. The module also supports 10GBASE-SR operation, offering dual-rate flexibility in mixed-speed environments. This plug-and-play module includes SFF-8472 compliant digital diagnostic monitoring and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Every unit is backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play SFP28 form factor — no additional configuration required
• IEEE 802.3bm 25GBASE-SR compliant; also supports 10GBASE-SR operation
• 850nm wavelength over multi-mode fibre with duplex LC connector
• Up to 100m on OM4 MMF; up to 70m on OM3 MMF at 25Gb/s (per datasheet, depends on fibre and link conditions)
• Up to 100m on OM3 at 10Gb/s (per datasheet, depends on fibre and link conditions)
• Selectable retiming for both transmit and receive at 25Gb/s
• SFF-8472 compliant digital diagnostic monitoring (DDM) via I2C management interface
• Hot-pluggable design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Power dissipation: 0.7W typical (with retiming), 0.8W maximum
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MFM1T02A-LR-BCC is a Blue Cable Co 10GbE 10GBASE-LR single-mode SFP+ optical transceiver, compatible with NVIDIA Mellanox platforms. With a duplex LC connector and a maximum link length of 10km, it is well suited to inter-building and campus-scale fibre runs. This plug-and-play module is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility, and is backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play SFP+ form factor — no additional configuration required
• IEEE 802.3ae 10GBASE-LR compliant, 10.3125 Gb/s data rate
• Single-mode fibre with duplex LC connector
• Maximum link length of 10km (per datasheet, depends on fibre and link conditions)
• Hot-pluggable design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 1W
• SFF-8431 and SFF-8432 compliant
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

The MFM1T02A-SR-BCC is a Blue Cable Co 10GbE 10GBASE-SR multi-mode SFP+ optical transceiver, compatible with NVIDIA Mellanox platforms. Operating at 850nm with a duplex LC connector, it delivers up to 300m on OM3 fibre and up to 400m on OM4 fibre at 10Gb/s. This plug-and-play module includes SFF-8472 compliant digital diagnostic monitoring (DDM) and is tested in our state-of-the-art lab in Sydney, Australia to ensure NVIDIA Mellanox platform compatibility. Every unit is backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play SFP+ form factor — no additional configuration required
• IEEE 802.3ae 10GBASE-SR compliant, up to 10.3125 Gb/s data rate
• 850nm wavelength over multi-mode fibre with duplex LC connector
• Up to 300m on OM3 MMF; up to 400m on OM4 MMF at 10Gb/s (per datasheet, depends on fibre and link conditions)
• SFF-8472 compliant digital diagnostic monitoring (DDM) for real-time performance visibility
• Hot-pluggable design for live insertion without system downtime
• Operating case temperature range: 0°C to +70°C
• Maximum power consumption: 1W
• RoHS compliant and Class 1 laser safe
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

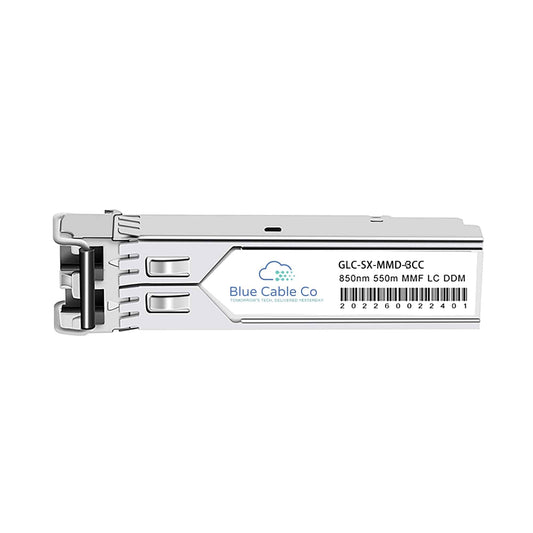

The MC3208011-SX-BCC is a Blue Cable Co 1GbE multi-mode SFP optical transceiver, compatible with NVIDIA Mellanox platforms. Using an 850nm VCSEL laser transmitter and duplex LC connector, it supports reaches of up to 550m on 50/125um MMF or up to 300m on 62.5/125um MMF. This plug-and-play module is tested in our state-of-the-art lab in Sydney, Australia to verify NVIDIA Mellanox platform compatibility, and is backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play SFP form factor — no additional configuration required
• 850nm oxide VCSEL laser transmitter for reliable short-range multi-mode operation
• Up to 550m reach on 50/125um MMF, up to 300m on 62.5/125um MMF (per datasheet, depends on fibre and link conditions)
• Duplex LC connector for standard multi-mode fibre patch leads
• Hot-pluggable design for live insertion without system downtime
• Operating case temperature range: -20°C to +85°C
• Single 3.3V power supply, low power dissipation
• RoHS compliant and lead free
• Tested in Blue Cable Co's Sydney lab for NVIDIA Mellanox platform compatibility
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty

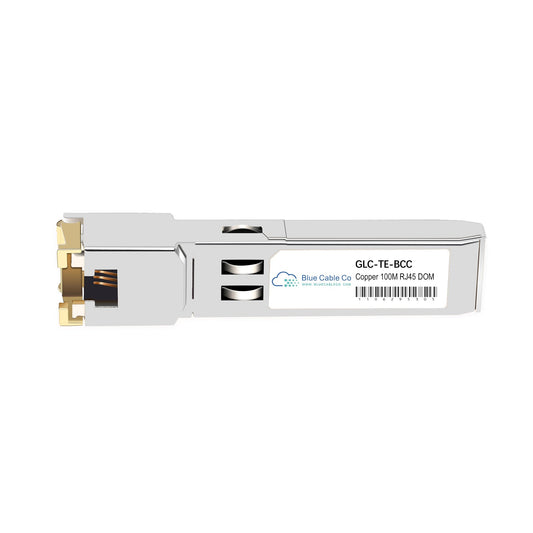

The MC3208411-T-BCC is a Blue Cable Co 1GbE 1000BASE-T copper SFP transceiver, compatible with NVIDIA Mellanox platforms. Designed for Gigabit Ethernet over standard Cat 5 cable at distances up to 100m, this plug-and-play module fits any SFP-equipped host system with an SGMII interface. Each unit is tested in our state-of-the-art lab in Sydney, Australia to ensure compatibility, and is backed by Blue Cable Co's 5-year advanced hardware replacement warranty.

• Plug-and-play SFP form factor — no additional configuration required
• Supports 10/100/1000BASE-T operation over Cat 5 copper cable
• Maximum reach of 100m (per datasheet, depends on cable and link conditions)
• Hot-pluggable design for live insertion without system downtime
• RJ-45 connector for direct connection to standard copper infrastructure
• Operating case temperature range: 0°C to +85°C
• RoHS compliant and lead free
• Fully metallic enclosure for low EMI
• Tested in Sydney, Australia for NVIDIA Mellanox platform compatibility
• Backed by Blue Cable Co's 5-year advanced hardware replacement warranty
