Aruba

Aruba R7J38A | AP-655 Wi-Fi 6E Tri-Radio Access Point, 4x4:4, Internal Antennas

Aruba R7J38A | AP-655 Wi-Fi 6E Tri-Radio Access Point, 4x4:4, Internal Antennas

Authorised Aruba Partner

SKU:R7J38A

Stock Status: Enquire

$1,987.81 inc. GST
$1,807.10 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

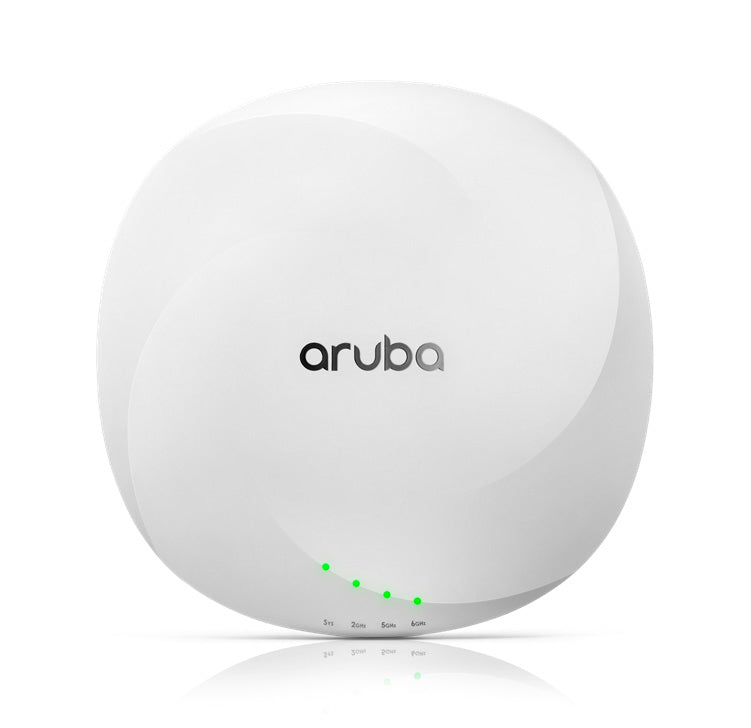

The Aruba AP-655 is an indoor tri-radio Wi-Fi 6E (802.11ax) campus access point with 4x4:4 MU-MIMO on the 2.4GHz, 5GHz and 6GHz bands. This RW regional variant uses integrated downtilt omni-directional antennas, delivering up to 1.147Gbps, 2.4Gbps and 4.8Gbps across the three radios, with support for up to 512 clients per radio.

Two multi-gigabit RJ-45 ports (up to 5GBASE-T) support 802.3af/at/bt PoE, and SmartPOE allows both ports to be used as power sources. BLE 5.0, Zigbee, a GNSS receiver, a USB 2.0 host port and a built-in TPM make the AP-655 well suited to high-density campus, office and education deployments. It forms part of the Aruba 650 Series and requires ArubaOS or InstantOS 8.10.0.1 or later, or ArubaOS 10.4.0.0 or later.

Features

- Ultra Tri-Band (UTB) flexible 5GHz/6GHz channel selection
- Zero-Wait DFS for faster channel changes
- OFDMA, TWT, transmit beamforming, MRC, STBC and LDPC
- Advanced Cellular Coexistence (ACC) and Advanced IoT Coexistence (AIC)
- SmartPOE dual-source power combining and LACP between ports
- Wi-Fi CERTIFIED 6E with WPA3 (CNSA option), Enhanced Open (OWE) and Passpoint R2
- UL2043 plenum rated
- 802.11mc FTM for precision ranging

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Tri-radio 802.11ax 4x4:4 MU-MIMO on 2.4GHz, 5GHz and 6GHz (concurrent)
- Data rates up to 1.147Gbps (2.4GHz), 2.4Gbps (5GHz) and 4.8Gbps (6GHz)
- 2 x 100/1000/2500/5000BASE-T RJ-45 ports (802.3bz)
- PoE-PD 802.3af/at/bt (class 3 or higher), 48Vdc nominal; 12Vdc DC power input
- Integrated downtilt omni-directional antennas: 4.8dBi (2.4GHz), 5.3dBi (5GHz), 5.4dBi (6GHz)
- Up to 512 clients per radio; up to 16 BSSIDs per radio (4 on 6GHz)
- Max transmit power per radio: +24 dBm aggregate (18 dBm per chain)
- BLE 5.0 and Zigbee (802.15.4) radio, GNSS L1 receiver, USB 2.0 host (Type A)
- Built-in TPM
- Max power consumption: 36.0W/42.5W (DC), 40.3W/46.5W (PoE), without/with USB device
- Dimensions (W x D x H, without bracket): 260 x 260 x 60 mm; weight 1,800 g
- Operating temperature 0 to 50 C, humidity 5% to 95%
- Regulatory model: APIN0655

FAQs

Q: Which Wi-Fi bands does the AP-655 support?
A: It is a tri-radio access point with 4x4:4 802.11ax radios operating concurrently on the 2.4GHz, 5GHz and 6GHz bands, with flexible 5GHz/6GHz channel selection through Ultra Tri-Band.

Q: Does this model have internal or external antennas?
A: This is the internal antenna model. It uses integrated downtilt omni-directional antennas with a peak gain of 4.8dBi on 2.4GHz, 5.3dBi on 5GHz and 5.4dBi on 6GHz.

Q: How is the AP-655 powered?
A: It can be powered by 802.3af/at/bt PoE (class 3 or higher) or by a 12Vdc power supply. SmartPOE lets the two Ethernet ports accept power from two sources and combine them. Power draw is higher with a USB device attached, so check your switch PoE budget.

Q: What Ethernet speeds do the uplink ports support?
A: Both RJ-45 ports are auto-sensing 100/1000/2500/5000BASE-T (802.3bz), so a multi-gigabit switch port can carry the full wireless throughput. LACP can be used between the two ports.

Q: What software does the AP-655 require?
A: The minimum supported software is ArubaOS or InstantOS 8.10.0.1, or ArubaOS 10.4.0.0.

Q: Does the AP-655 support IoT devices?
A: Yes. It includes a BLE 5.0 and Zigbee (802.15.4) radio, a USB 2.0 host port and a GNSS receiver. Advanced IoT Coexistence (AIC) helps the radios operate alongside each other.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
