APC

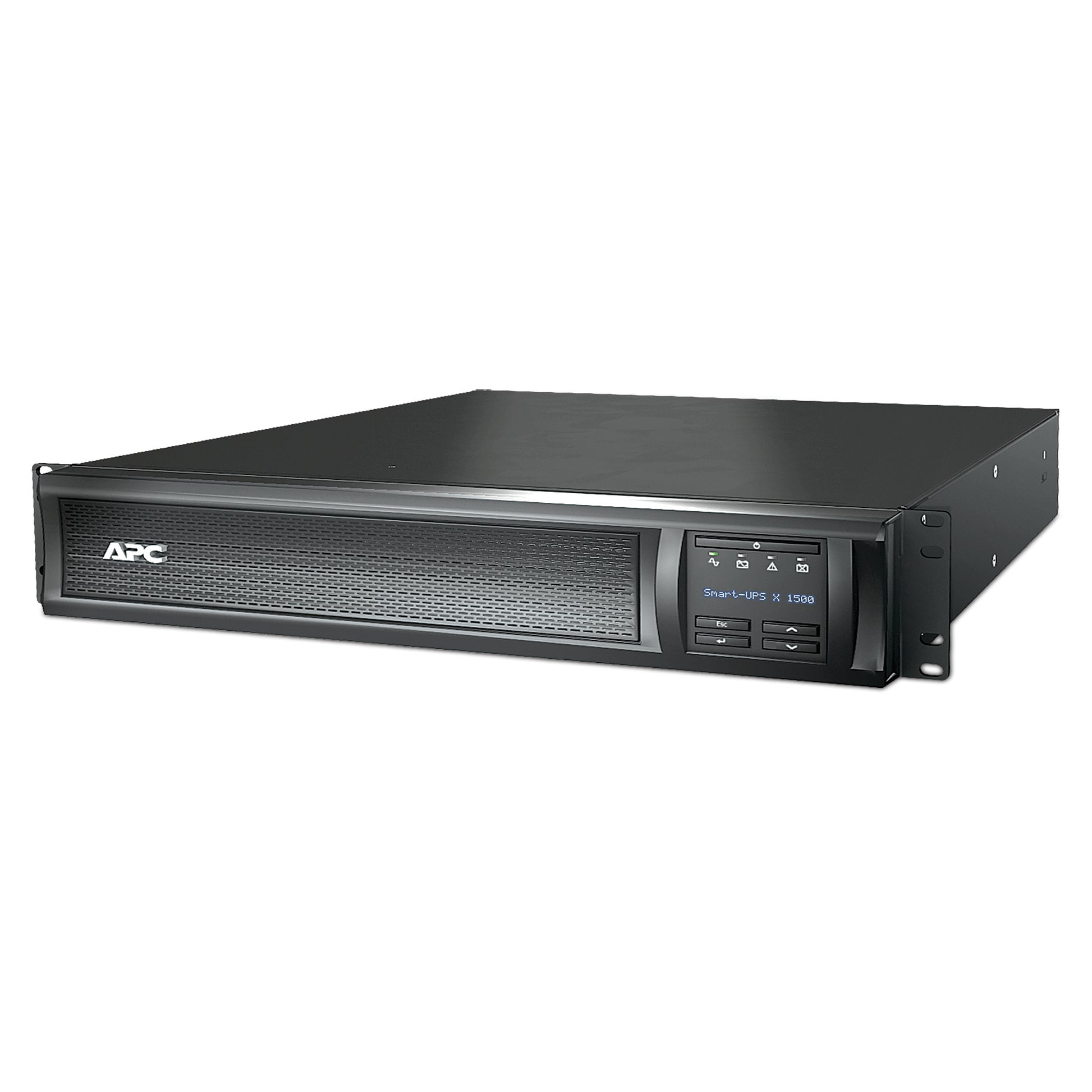

APC SMX1500RMI2U | Smart-UPS X Rack/Tower UPS, 1500VA, 230V, 8x C13, LCD

APC SMX1500RMI2U | Smart-UPS X Rack/Tower UPS, 1500VA, 230V, 8x C13, LCD

Authorised APC Partner

SKU:SMX1500RMI2U

In stock:75

$2,359.23 inc. GST
$2,144.75 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Smart-UPS X SMX1500RMI2U is a line-interactive rack/tower convertible 2U UPS rated 1500VA/1200W at 230V, with pure sine wave output on battery. It provides eight IEC C13 outlets, an LCD interface and a SmartSlot for network management cards, making it a practical choice for protecting servers, switches and storage in a small rack or on the floor.

Runtime can be scaled with plug-and-play external battery packs that are automatically recognised, and hot-swappable internal batteries simplify maintenance. USB and RJ45 serial communications, Automatic Voltage Regulation and temperature-compensated battery charging support dependable day-to-day operation.

Features

- Pure sine wave output on battery for compatibility with active PFC servers
- Cold-start capable
- Temperature-compensated battery charging to prolong battery life
- Green mode for high operating efficiency
- Multi-language LCD interface
- Predictive replace-battery date
- SmartSlot for management cards such as a Network Management Card
- Energy meter showing kWh usage
- Scalable runtime with plug-and-play external battery packs and automatic recognition
- Rack/Tower convertible design
- Multiple switched outlet groups
- Hot-swappable batteries

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 1500 VA / 1200 W output capacity
- Line-Interactive topology with pure sine wave output
- 230 V nominal input and output, IEC-320 C14 input
- 8 x IEC-320 C13 outlets
- Input voltage adjustable range: 151 to 302 V
- Input frequency: 50/60 Hz ± 3 Hz (auto sensing)
- Automatic Voltage Regulation (AVR)
- Surge energy rating: 645 J
- Efficiency: 98.5%
- Circuit breaker rating: 20 A
- Lead-acid battery, 5 minutes runtime at full load
- USB and RS-232 (RJ45) serial communications
- 1 x SmartSlot interface
- Emergency Power Off (EPO) support
- Rack/Tower convertible, 2U
- Dimensions (W x D x H): 432 x 490 x 89 mm
- Weight: 24.8 kg

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Can this UPS be mounted in a rack and used as a tower?
A: Yes. The SMX1500RMI2U is a rack/tower convertible design that occupies 2U in a standard rack or can stand upright as a tower unit.

Q: What outlets does it provide?
A: It has eight IEC-320 C13 outlets arranged in multiple switched outlet groups, with a single IEC-320 C14 input.

Q: Can I extend the runtime?
A: Yes. Runtime can be extended by connecting external battery packs, which the UPS recognises automatically. The internal batteries alone provide around 5 minutes at full load.

Q: Does it support a network management card?
A: Yes. It has one SmartSlot that accepts compatible management cards such as an APC Network Management Card for remote monitoring and control.

Q: Is the output suitable for servers with active PFC power supplies?
A: Yes. It delivers a pure sine wave output on battery, which is compatible with active PFC server power supplies.

Q: What communication ports are included?
A: It includes USB and an RJ45 serial port, plus the SmartSlot for optional network management.
