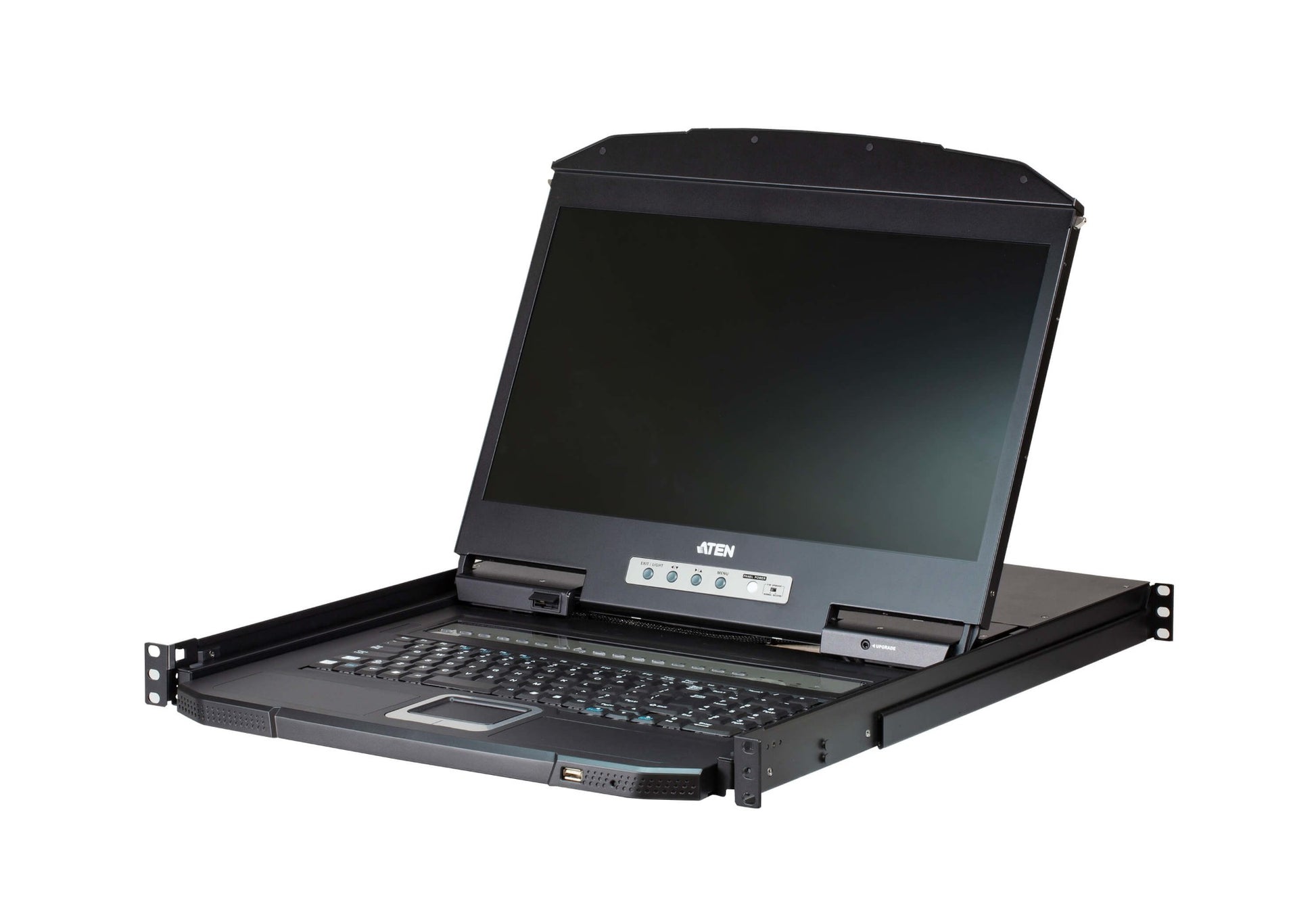

ATEN CL3108NX-ATA-AU | 8-Port VGA LCD KVM Switch, 18.5in, Short Depth

ATEN CL3108NX-ATA-AU | 8-Port VGA LCD KVM Switch, 18.5in, Short Depth

Authorised ATEN Partner

SKU:CL3108NX-ATA-AU

$2,250.43 inc. GST
$2,045.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The ATEN CL3108NX is a short-depth 8-port VGA LCD KVM switch that combines an 18.5" widescreen LCD (1366 x 768), keyboard and touchpad in a single 1U rack-mount drawer. It controls up to 8 computers directly and up to 128 through a 2-level cascade with compatible ATEN CS1308 and CS1316 switches, making it a space-saving console for server rooms and narrow racks.

The console supports both PS/2 and USB computers with automatic detection, and ports can be selected via the on-screen display, hotkeys or front-panel pushbuttons. An LED illumination light for the keyboard and touchpad, a lockable drawer, two-level password security and firmware upgrades without software round out the feature set. A standard rack mount kit is included.

Features

- Short-depth design suits narrow rack spaces
- Integrated 18.5" widescreen LCD, keyboard and touchpad in a 1U drawer
- LED illumination light for keyboard and touchpad in low light
- Console lock keeps the drawer securely closed when not in use
- DDC2B support
- Dual PS/2 and USB interface with auto detection
- Keyboard and mouse emulation for booting multiple computers at once
- Broadcast mode sends commands to all connected computers
- Auto Scan mode for continuous monitoring
- Two-level password security
- Multilingual on-screen display (OSD)
- Firmware upgradable, no software required
- Standard rack mount kit included

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 direct computer ports (8 x SPHD-18 female KVM ports)
- Up to 128 computers via 2-level cascade with compatible CS1308/CS1316 switches
- 18.5" TFT-LCD, 1366 x 768 @ 60Hz, 16.7M colours
- Contrast ratio 1000:1, 5 ms response time
- Viewing angle 170° (H) / 160° (V), pixel pitch 0.3 mm
- Keyboard/mouse interface: PS/2 and USB with auto detection
- Port selection via OSD, hotkeys and pushbuttons
- 1 x front-panel USB Type-A port for a mouse (HID device)
- 1U single-rail housing, metal and plastic
- Dimensions (L x W x H): 48.06 x 63.10 x 4.28 cm
- Weight: 10.50 kg
- Input voltage: 100-240V AC
- Power consumption: approx. 14.1W at 110V, 14.9W at 220V

FAQs

Q: How many computers can the CL3108NX control?
A: It controls 8 computers directly and up to 128 computers through a 2-level cascade with compatible ATEN CS1308 or CS1316 KVM switches.

Q: What video resolution does the built-in LCD support?
A: The 18.5" TFT-LCD has a native resolution of 1366 x 768 at 60Hz with 16.7 million colours.

Q: Does it support both PS/2 and USB computers?
A: Yes. The keyboard and mouse interface supports both PS/2 and USB, with automatic detection.

Q: How does the CL3108NX differ from the CL3116?
A: The CL3108NX provides 8 KVM ports, while the CL3116 is the 16-port model in the same LCD KVM family.

Q: Is it suitable for short-depth racks?
A: Yes. The short-depth housing is designed for narrow rack spaces, and it mounts in 1U using the included standard rack mount kit.

Q: How are computer ports selected?
A: Ports can be selected using the on-screen display, keyboard hotkeys or the front-panel pushbuttons.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
