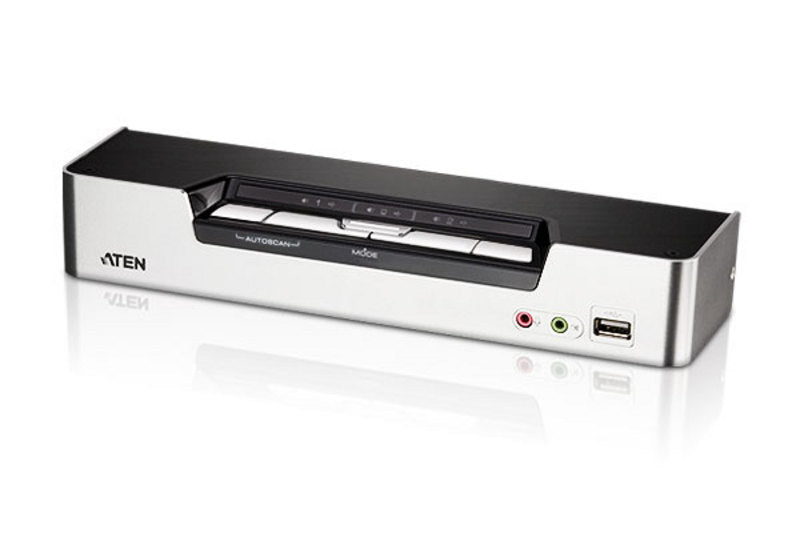

ATEN CS1794-AT-U | CubiQ 4-Port HDMI KVMP Switch, USB 2.0, Audio, Cables

ATEN CS1794-AT-U | CubiQ 4-Port HDMI KVMP Switch, USB 2.0, Audio, Cables

Authorised ATEN Partner

SKU:CS1794-AT-U

$454.14 inc. GST
$412.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The ATEN CS1794-AT-U is a 4-port HDMI KVMP switch that lets one USB keyboard, mouse and HDMI monitor control four HDMI computers. This AT-U kit includes custom KVM cables, so it is ready to connect out of the box. A built-in 2-port USB 2.0 hub and digital audio support (Dolby TrueHD and DTS-HD Master Audio) make it well suited to desks, control rooms and test benches where several systems share one workstation.

Ports can be selected from the front-panel pushbuttons or by hotkey, with independent switching of KVM, USB peripheral and audio focus. Video DynaSync stores the monitor EDID to optimise resolution, and the switch supports resolutions up to 1920 x 1200 at 60Hz. It works with Windows, Linux and Mac systems, with Mac keyboard emulation, and is firmware upgradable.

Features

- One USB console controls four HDMI computers and two additional USB devices
- Built-in 2-port USB 2.0 hub, fully USB 2.0 compliant
- Independent switching of KVM, USB peripheral and audio focus via front-panel pushbuttons and hotkeys
- HDMI and HDCP compliant
- Dolby TrueHD and DTS-HD Master Audio support
- Supports 480i, 480p, 720p, 1080i, 1080p (HDTV) and 1920 x 1200
- Power-on detection automatically switches to the next powered-on computer
- Video DynaSync stores monitor EDID to optimise resolution
- Windows, Linux and Mac support, with Mac keyboard emulation
- Auto Scan Mode
- Firmware upgradable

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 4 computer connections (4 x HDMI Female, 4 x USB Type B Female)
- 1 x HDMI console output
- 2-port USB 2.0 hub (1 front panel, 1 rear panel)
- Console ports: 2 x USB Type A Female (rear panel)
- Console audio and mic: 2 x 3.5 mm jacks each (1 front, 1 rear)
- KVM port audio and mic: 4 x 3.5 mm jacks each
- Video: 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz
- Port selection: hotkey and pushbutton
- Scan interval: 1-99 seconds (default 5 seconds)
- Emulation (keyboard / mouse): USB
- Power: DC jack, 5.3V DC, 4.88W, 38 BTU/h
- Operating temperature: 0-50°C
- Storage temperature: -20-60°C
- Humidity: 0-80% RH, non-condensing
- Housing: metal and plastic
- Weight: 0.53 kg
- Dimensions (L x W x H): 26.23 x 7.24 x 4.40 cm

FAQs

Q: Are KVM cables included with the CS1794-AT-U?
A: Yes. The AT-U kit includes custom KVM cables so you can connect your computers to the switch straight away.

Q: How many computers and monitors can it control?
A: It connects four HDMI computers and shares a single HDMI monitor, USB keyboard and USB mouse across them.

Q: Does it support audio?
A: Yes. It provides audio and mic jacks on the console and each KVM port, with Dolby TrueHD and DTS-HD Master Audio support.

Q: What is the 2-port USB hub for?
A: The built-in USB 2.0 hub (one front, one rear port) lets you share two extra USB devices, such as a printer or storage drive, between the connected computers.

Q: How do I switch between computers?
A: Use the front-panel pushbuttons or keyboard hotkeys. KVM, USB peripheral and audio focus can be switched independently.

Q: What maximum resolution does it support?
A: Video resolutions up to 1920 x 1080 at 60Hz and 1920 x 1200 at 60Hz are supported, and Video DynaSync stores the monitor EDID to help optimise resolution.
