ATEN

ATEN US3310-AT | 2-Port USB-C KVM Dock Switch, 4K HDMI@30Hz, USB 3.2, 85W PD

ATEN US3310-AT | 2-Port USB-C KVM Dock Switch, 4K HDMI@30Hz, USB 3.2, 85W PD

Authorised ATEN Partner

SKU:US3310-AT

$217.58 inc. GST
$197.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 1

Description

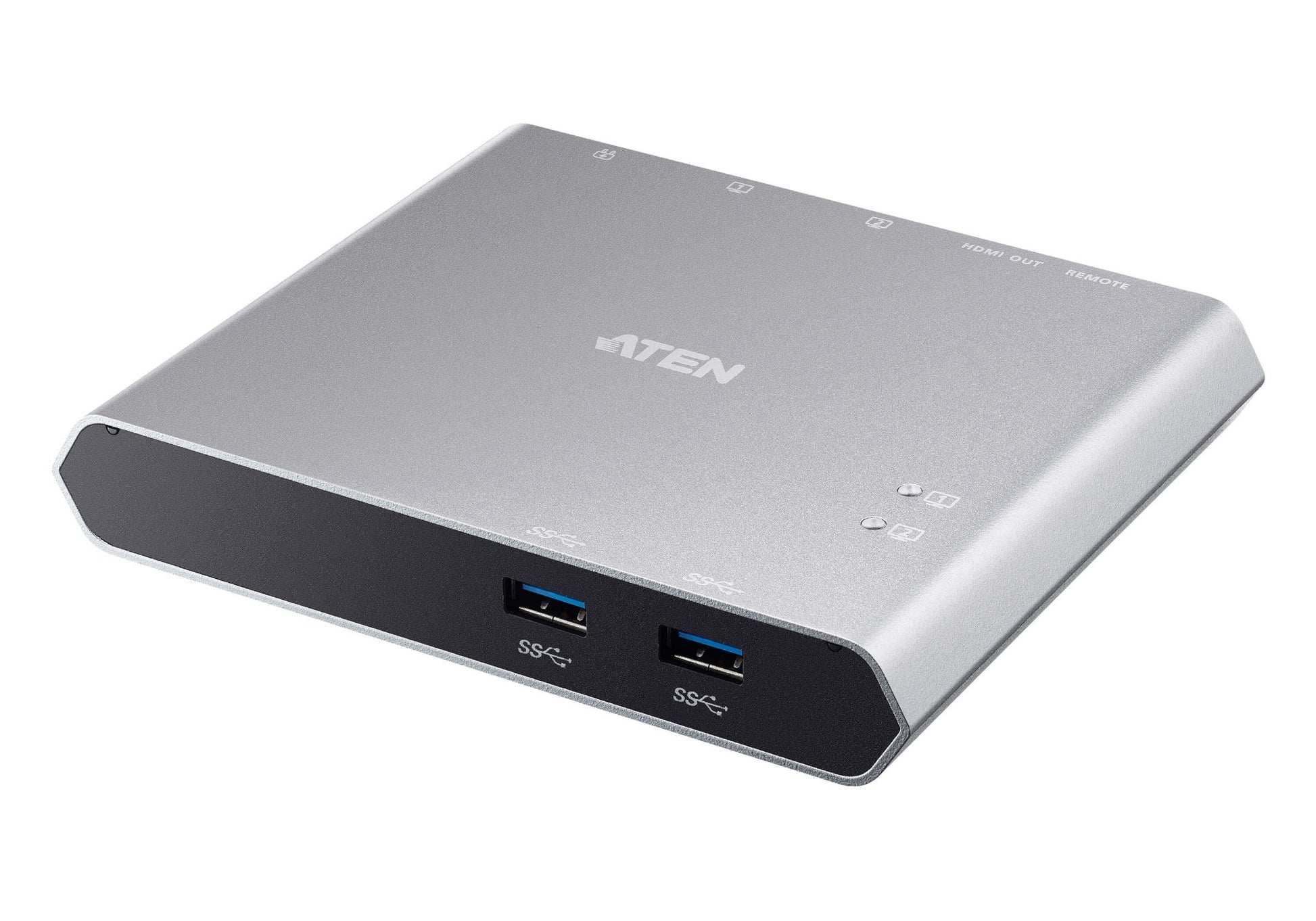

The ATEN US3310 is a 2-Port USB-C KVM dock switch that lets a USB-C laptop and an Android smartphone share one HDMI monitor and a set of USB peripherals. It outputs 4K (3840 x 2160) at 30 Hz over HDMI, provides USB 3.2 Gen 1 (5 Gbps) peripheral connectivity, and passes through up to 85 W of USB Power Delivery 3.0 charging, so a single dock keeps the connected device powered while it works.

Switching between the two connected devices is handled by a remote port selector that can sit within easy reach or be mounted out of sight under the desk. Video DynaSync supports EDID and HDCP compatibility for fast, reliable display switching, and the dock supports Samsung DeX and Huawei Desktop modes as well as Apple M1 and M2 devices. It is plug and play with no drivers required, in a compact silver aluminium housing.

Features

- Lets a USB-C laptop and an Android smartphone share one HDMI monitor and all connected USB peripherals
- Video DynaSync for EDID/HDCP compatibility and fast switching
- Supports Samsung DeX and Huawei Desktop modes
- Compatible with Apple M1 and M2 devices
- Plug and play, no drivers needed
- Remote port selector can be placed at a convenient location or hidden under the desk
- USB 3.2 Gen 1 data sharing of external storage between two systems
- 85 W USB Power Delivery 3.0 pass-through for charging a connected device

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x USB-C computer/device ports
- 1 x HDMI output, up to 4K (3840 x 2160) @ 30 Hz
- USB 3.2 Gen 1 (up to 5 Gbps) peripheral ports
- USB Power Delivery 3.0 pass-through up to 85 W (additional USB-C power adapter required)
- Switching: remote port selector (button)
- Number of computers controlled: 2
- Supported OS: Windows 10 or above, macOS X 10.12 or above, Android 8.0 or later, iPadOS 13 or later
- Housing: aluminium, silver
- Dimensions (L x W x H): 143 x 119 x 23.8 mm
- Weight: 0.33 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 60 C
- Humidity: 0 to 80% RH, non-condensing
- Compliance: RoHS

FAQs

Q: What is the maximum video resolution of the ATEN US3310?
A: The single HDMI output supports up to 4K (3840 x 2160) at 30 Hz.

Q: How much power can the US3310 pass through to a connected device?
A: It supports USB Power Delivery 3.0 pass-through of up to 85 W. An additional USB-C power adapter is needed to supply that power.

Q: How do I switch between the two connected devices?
A: Switching is done with the remote port selector, which can be placed within easy reach or hidden under the desk.

Q: Does it need drivers or software?
A: No. The dock is plug and play and does not require any drivers.

Q: Which operating systems and devices are supported?
A: It supports Windows 10 or above, macOS X 10.12 or above, Android 8.0 or later and iPadOS 13 or later, including Apple M1 and M2 devices, Samsung DeX and Huawei Desktop modes.

Q: Can I share USB storage between two systems?
A: Yes. The USB 3.2 Gen 1 (5 Gbps) peripheral ports let you share external storage and other USB devices between the two connected systems.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
