Blue Cable Co

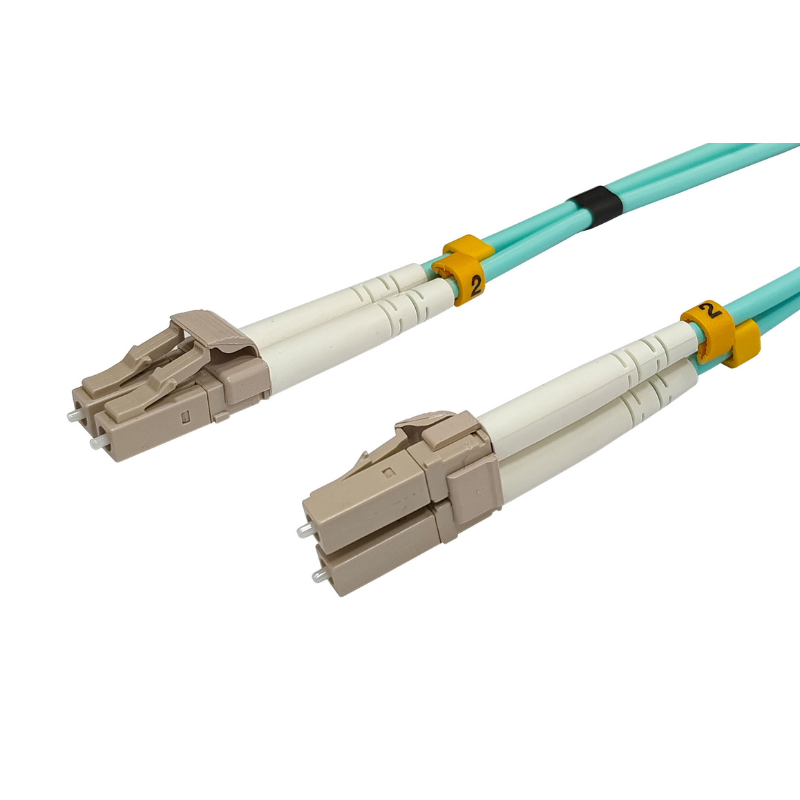

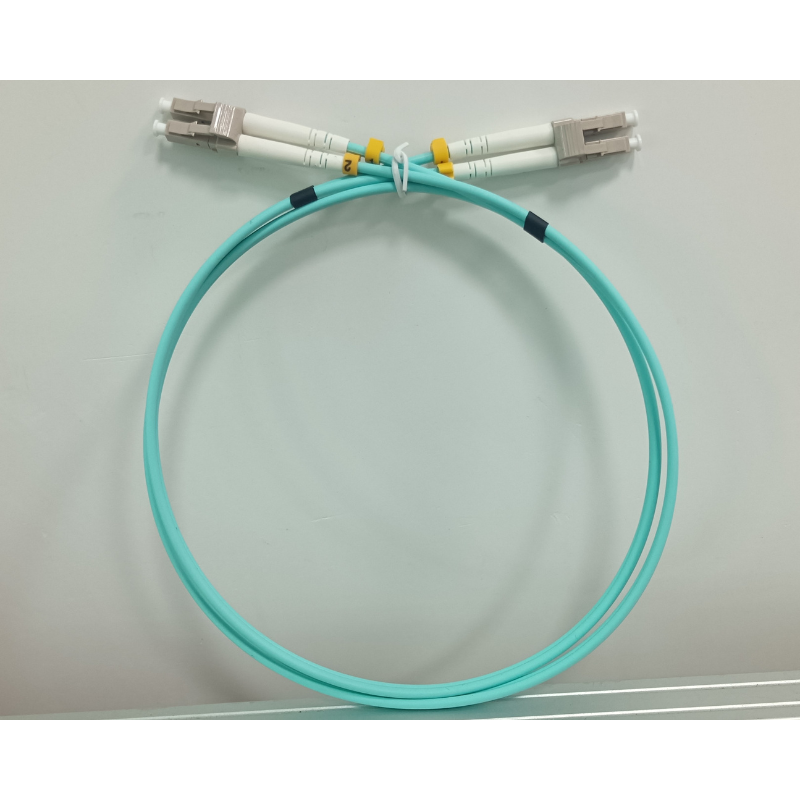

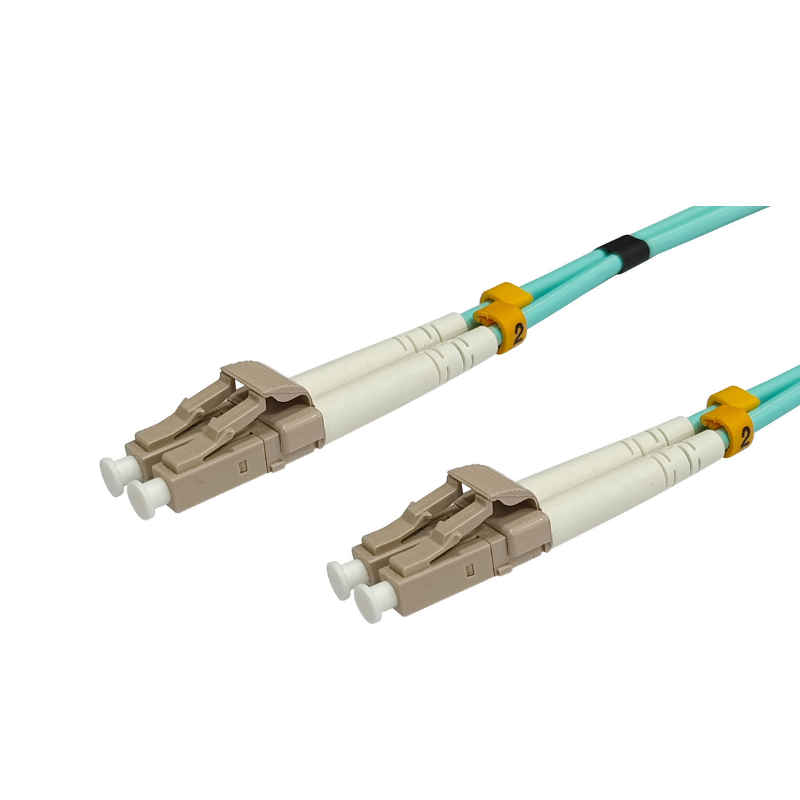

OM4 Multimode Fibre Optic Cable | Duplex LC to LC | LSZH Aqua | 0.25 to 10 Meter

OM4 Multimode Fibre Optic Cable | Duplex LC to LC | LSZH Aqua | 0.25 to 10 Meter

SKU:CAB0.25FOM4.LC

In stock:100

Regular price $6.60 AUD
Regular price
$6.60 AUD
$6.60 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Upgrade your network with the OM4 Multimode Fibre Optic Cable from Blue Cable Co. Designed for superior performance and reliability, this cable ensures seamless data transmission for high-speed networks while maintaining compatibility with legacy systems.

Key Features:

  • RCM Compliant & AS/CA S008:2020 Certified: Manufactured to meet Australian standards, ensuring safe and reliable operation in your network environment.
  • Backwards Compatibility: Fully compatible with OM3, OM2, and OM1 systems, making it easy to integrate into existing networks.
  • Optimised for Transceivers: Perfectly suited for use with our transceivers, ensuring top-tier performance and seamless integration.
  • Durable LSZH Aqua Jacket: Built with a low-smoke, zero-halogen (LSZH) outer jacket for enhanced safety in enclosed environments.

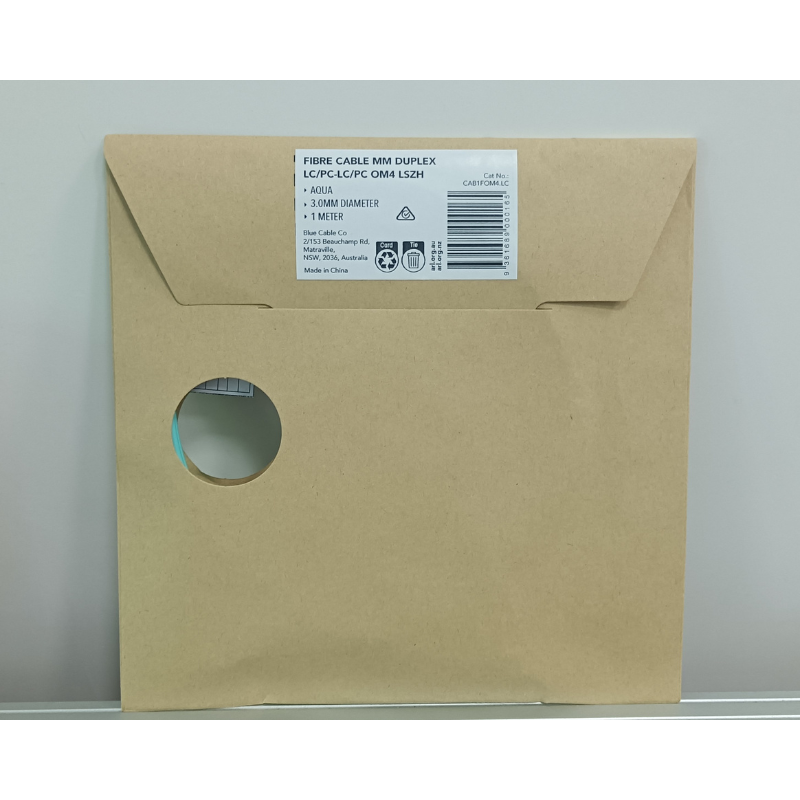

  • Eco-Friendly Packaging: Each cable is packaged in recyclable cardboard, eliminating the need for single-use plastic zip-lock bags often used by other suppliers.

Available in lengths ranging from 0.25m to 10m, this Duplex LC to LC cable is the ideal choice for data centers, enterprise networks, and other high-speed networking applications.

Choose Blue Cable Co for quality, compliance, and a commitment to sustainability.

Features

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Replaces (older part #)

Datasheet

Find the Right Cable

Technical Specifications

Technical specifications

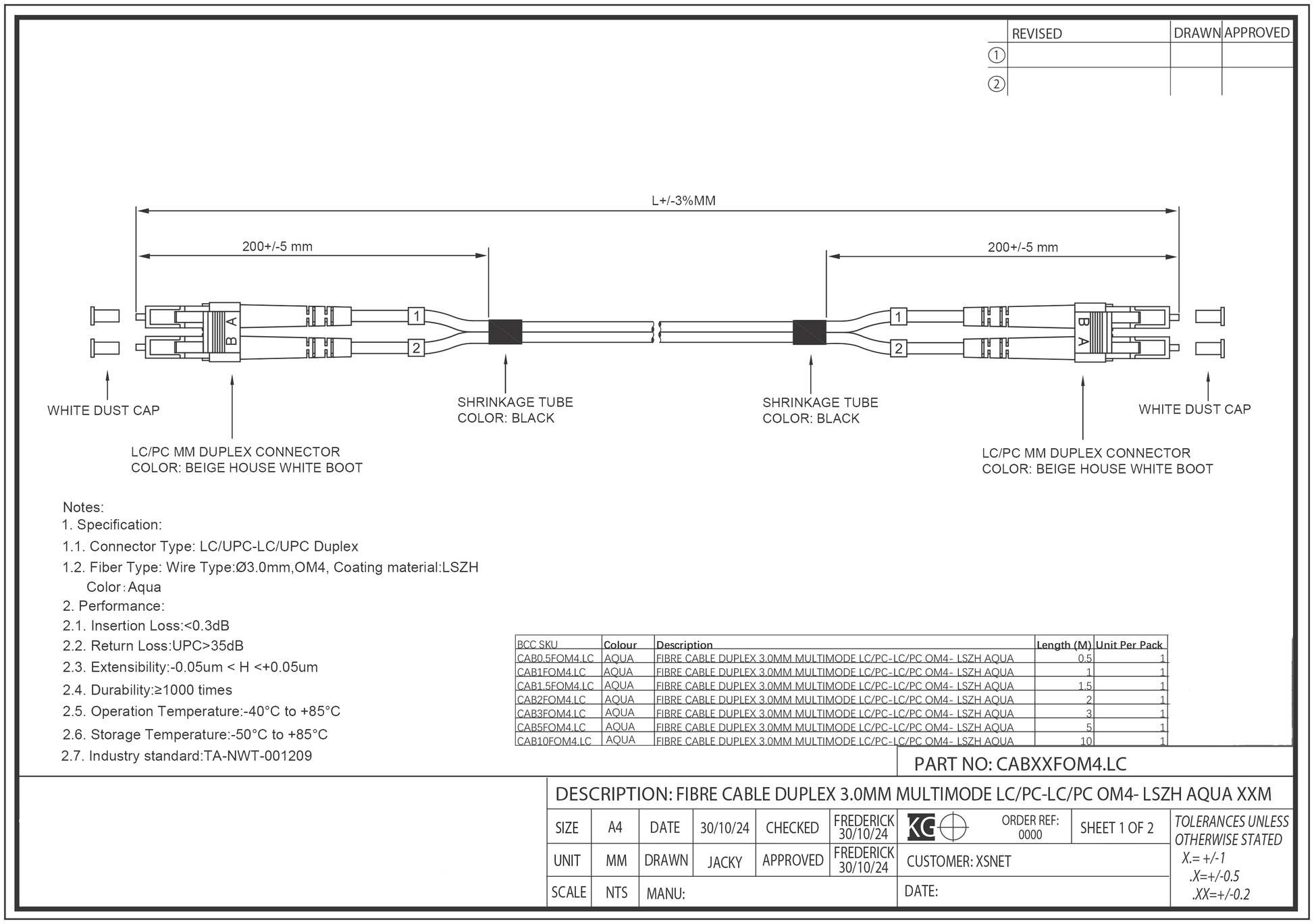

OM4 Duplex LC/UPC to LC/UPC Fibre Cable (Aqua)
Cable type: Duplex multimode fibre patch cable (zipcord)
Fibre type: OM4 multimode, 3.0 mm duplex cable
Connector type: LC/UPC to LC/UPC duplex
Connector polish: UPC (ultra physical contact)
Connector body/boot: Beige LC housing with white boot
Dust caps: White protective dust caps fitted
Jacket material: LSZH (Low Smoke Zero Halogen)
Jacket colour: Aqua
Insertion loss: < 0.3 dB
Return loss: UPC > 35 dB
Interchangeability / repeatability: 0.05 µm < H < +0.05 µm
Durability: ‚1000 mating cycles
Operating temperature: ‚40C to +85C
Storage temperature: ‚50C to +85C
Industry standard: TA-NWT-001209
Available lengths: 0.25m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 10 m

Replaces (older part #)

Works anywhere OM1, OM2, or OM3 fibre is specified (backward compatible).
