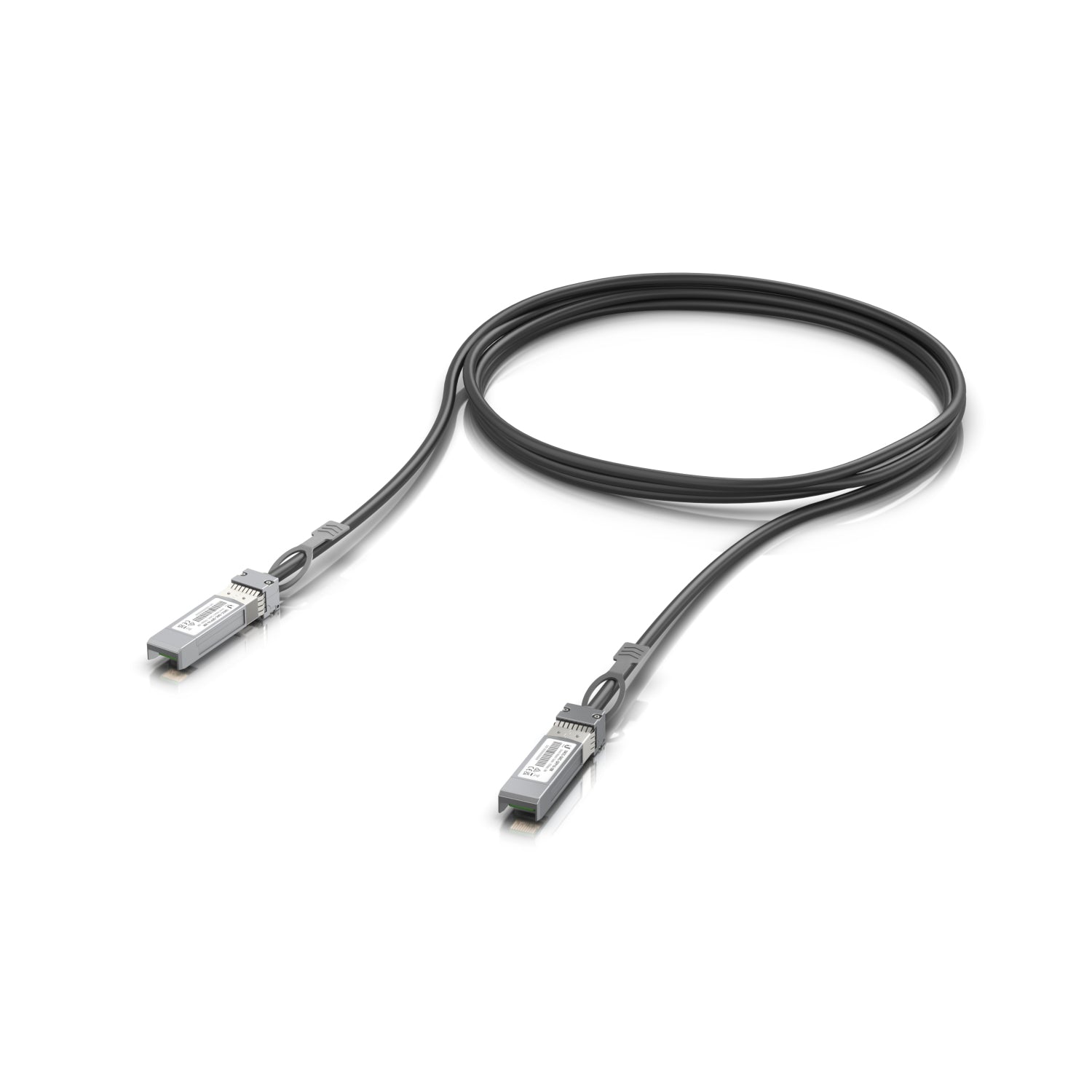

• Ubiquiti UACC-DAC-SFP10-3M 3m 10Gbps SFP+ black cable with gray connectors
1 1

Ubiquiti

Ubiquiti UACC-DAC-SFP10-3M | UniFi 10G SFP+ Direct Attach Cable, Passive Copper, 3m

Ubiquiti UACC-DAC-SFP10-3M | UniFi 10G SFP+ Direct Attach Cable, Passive Copper, 3m

Authorised Ubiquiti Partner

UACC-DAC-SFP10-3M

In stock:76

$46.59 inc. GST
$42.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The UniFi 10G SFP+ Direct Attach Cable is a 3m passive copper DAC for short-reach 10 Gbps links between SFP+ equipment. It terminates in SFP+ connectors at both ends, which makes it a simple, cost-effective way to connect switches, servers and other SFP+ ports within a rack or between adjacent racks.

This 3m version of the UACC-DAC-SFP10 family supports 10 Gbps and 1 Gbps data rates and uses a flexible black PVC jacket with 24 AWG copper conductors. As a passive cable, it needs no extra optics or power, and it suits UniFi and other SFP+ based network deployments.

Features

- Supports 10 Gbps and 1 Gbps data rates
- Passive copper SFP+ to SFP+ design for short-reach links
- Flexible PVC jacket
- No separate optics required, with SFP+ connectors fitted at both ends
- Part of a family available in 0.5 m, 1 m and 3 m lengths

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- SFP+ to SFP+ connectors
- Cable length: 3 m (9.8 ft)
- Supported data rates: 10 / 1 Gbps
- Passive copper (EQ: Passive)
- 24 AWG (3 m)
- PVC jacket, black
- Jacket outer diameter (3 m): 6 mm (0.24")
- Bend radius (3 m): Min. 32 mm (1.26")
- Operating temperature: 0 to 70 °C (32 to 158 °F)
- Pack option: Single Unit

FAQs

Q: What length is the UACC-DAC-SFP10-3M?
A: This SKU is the 3 m (9.8 ft) version of the UACC-DAC-SFP10 direct attach cable family. The same family is also available in 0.5 m and 1 m lengths.

Q: What data rates does this DAC support?
A: It supports 10 Gbps and 1 Gbps data rates over a passive copper SFP+ to SFP+ connection.

Q: Is this an active or passive cable?
A: It is a passive copper cable (EQ: Passive), so it does not use active electronics in the connectors.

Q: What connectors does it use?
A: Both ends use SFP+ connectors, so it connects SFP+ port to SFP+ port.

Q: Do I need separate transceivers to use this cable?
A: No. The SFP+ connectors are built into the cable, so it plugs directly into SFP+ ports without separate optical modules.

Q: What is the minimum bend radius?
A: The minimum bend radius for the 3 m cable is 32 mm (1.26").
