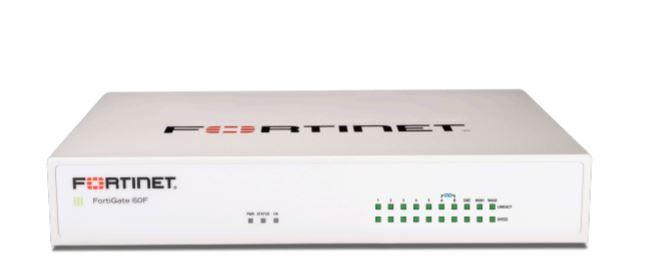

• Fortinet FG-60F firewall with white chassis, green LEDs and black branding
1 1

Fortinet

Fortinet FG-60F | Entry-Level Firewall, 10x GE RJ45, 1 Gbps NGFW

Fortinet FG-60F | Entry-Level Firewall, 10x GE RJ45, 1 Gbps NGFW

Authorised Fortinet Partner

FG-60F

In stock:2

$1,500.01 inc. GST
$1,363.65 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FG-60F is an entry-level next-generation firewall for small offices and branch sites, built on Fortinet's SoC4 processor. It delivers 10 x GE RJ45 ports (7 internal, 2 WAN and 1 DMZ), 1 Gbps NGFW throughput and 700 Mbps threat protection throughput. This is the wired model with no internal storage and no WiFi.

Security and SD-WAN networking functions are combined in a single appliance, with 10 Gbps firewall throughput on large packets and IPsec VPN support for site-to-site and remote access. It integrates with FortiManager for centralised visibility across locations and supports HA deployments for continuous protection and minimal downtime.

Features

- Integrated security and SD-WAN networking in one appliance
- Works with FortiManager for centralised visibility and management across locations
- HA support for continuous protection and minimal downtime
- Part of the 60F series, which also includes variants with internal storage (FG-61F) and WiFi (FWF-60F/61F)
- FG-60F-HA SKUs are bought in pairs and entitle the HA pair to a single service contract

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
โ€ข Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
โ€ข Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
โ€ข Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the productโ€™s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 10 x GE RJ45 ports (7 x Internal, 2 x WAN, 1 x DMZ)
- 1 x USB port, 1 x console port
- SoC4 processor
- No internal storage, wired (non-WiFi) model
- IPS Throughput: 1.4 Gbps
- NGFW Throughput: 1 Gbps
- Threat Protection Throughput: 700 Mbps
- Firewall Throughput (1518/512/64 byte UDP): 10/10/6 Gbps
- Firewall Latency (64 byte UDP): 3.3 ฮผs
- Firewall Throughput: 9 Mpps
- Concurrent Sessions (TCP): 700,000
- New Sessions/Second (TCP): 35,000
- Firewall Policies: 2,000
- IPsec VPN Throughput (512 byte): 6.5 Gbps
- Gateway-to-Gateway IPsec VPN Tunnels: 200
- Client-to-Gateway IPsec VPN Tunnels: 500

FAQs

Q: How many ports does the FG-60F have and how are they allocated?
A: The FG-60F has 10 x GE RJ45 ports: 7 internal ports, 2 WAN ports and 1 DMZ port. It also includes 1 x USB port and 1 x console port.

Q: Does the FG-60F include WiFi or internal storage?
A: No. The FG-60F is the wired model with no internal storage. The FG-61F adds internal storage, and the FWF-60F and FWF-61F models add WiFi.

Q: What throughput can I expect from the FG-60F?
A: It delivers 10 Gbps firewall throughput (1518/512 byte UDP), 1.4 Gbps IPS, 1 Gbps NGFW and 700 Mbps threat protection throughput.

Q: Can the FG-60F be deployed in a high availability pair?
A: Yes. The FG-60F supports HA. FG-60F-HA SKUs are bought in pairs and entitle the HA pair to leverage a single service contract.

Q: How many IPsec VPN tunnels does the FG-60F support?
A: It supports up to 200 gateway-to-gateway IPsec VPN tunnels and 500 client-to-gateway tunnels, with 6.5 Gbps IPsec VPN throughput (512 byte).

Q: Can the FG-60F be managed centrally across multiple sites?
A: Yes. It works with FortiManager for centralised visibility and management across locations, which suits branch and multi-site deployments.
