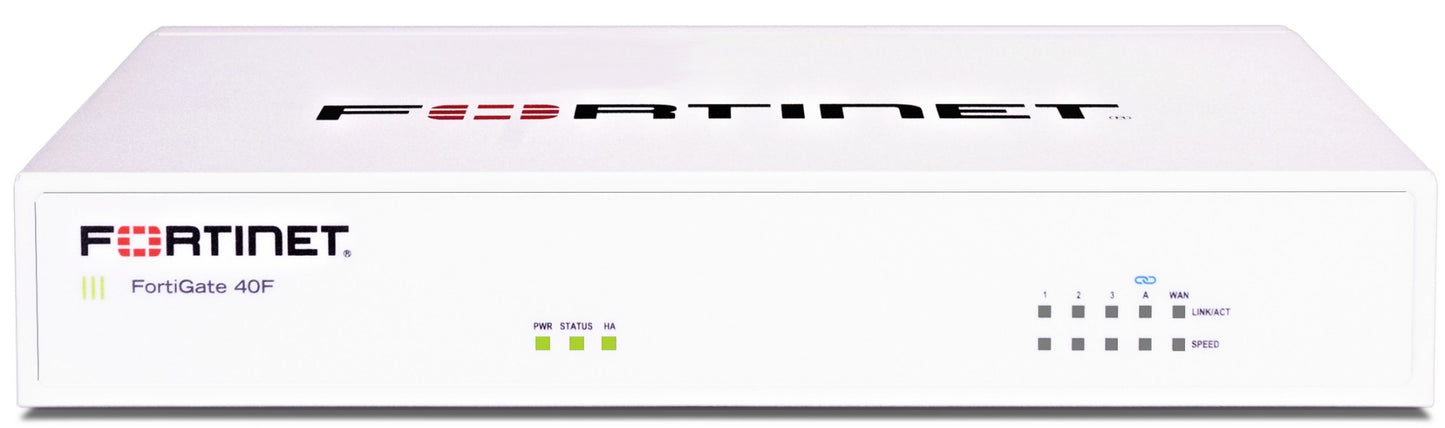

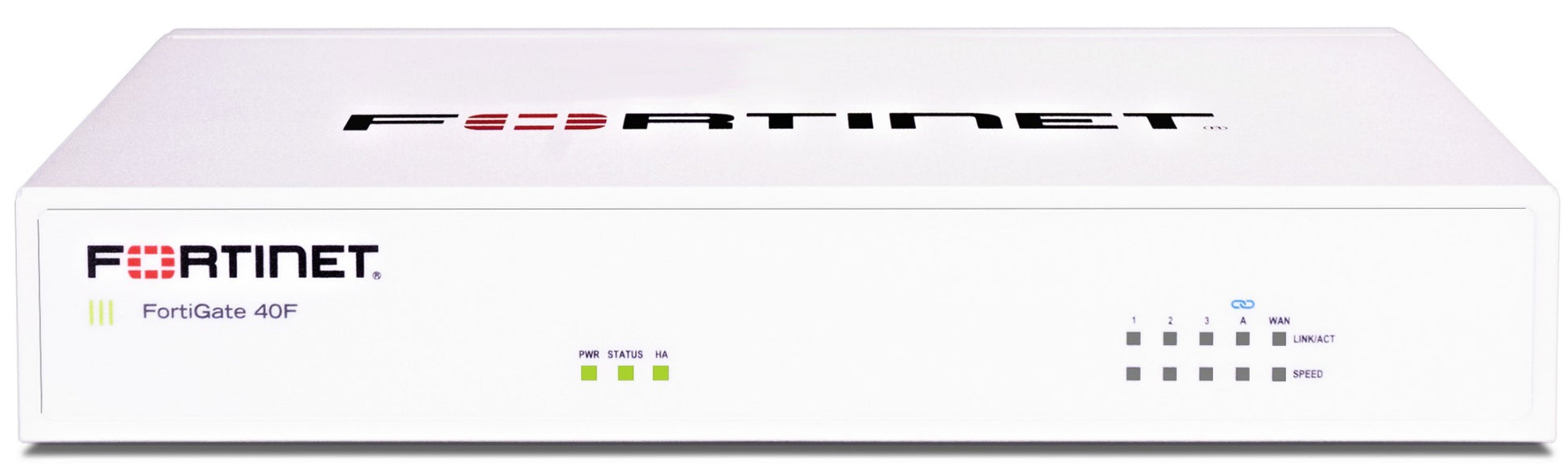

• Fortinet FG-40F 40F firewall white rectangular appliance 5 GE RJ45 ports
1 1

Fortinet

Fortinet FG-40F | Next-Gen Firewall, 5x GE RJ45, 5 Gbps, SD-WAN

Fortinet FG-40F | Next-Gen Firewall, 5x GE RJ45, 5 Gbps, SD-WAN

Authorised Fortinet Partner

FG-40F

In stock:10

$1,322.73 inc. GST
$1,202.48 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGate 40F is a compact desktop next-generation firewall with 5 Gbps firewall throughput, built for small offices, teleworkers and distributed enterprise branches. This hardware-only model (no wireless or 3G/4G) provides 5 x GE RJ45 ports, including 1 WAN, 1 FortiLink and 3 internal, and combines firewalling, Secure SD-WAN and threat protection in a single appliance.

Powered by Fortinet's purpose-built SOC4 ASIC and running FortiOS, the FortiGate 40F delivers 1 Gbps IPS and 800 Mbps NGFW throughput. The FortiLink port lets you manage a FortiSwitch as a logical extension of the firewall, and the appliance integrates with the wider Fortinet Security Fabric with FortiGuard AI-Powered Security Services.

Features

- Purpose-built SOC4 Secure SD-WAN ASIC combining a RISC-based CPU with Fortinet's proprietary security processing
- FortiGuard AI-Powered Security Services for layered threat defence
- Integrated Secure SD-WAN and NGFW capabilities
- FortiLink port for managing a FortiSwitch as a logical extension of the firewall (the port can be reconfigured as a regular port)
- OT security capabilities including virtual patching and industry-specific protocol decoders
- Zero Touch Provisioning and a central management console
- Part of the Fortinet Security Fabric, with FortiOS as the operating system

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5 x GE RJ45 ports (1 x WAN, 1 x FortiLink, 3 x Internal)
- 1 x USB port, 1 x RJ45 console port
- Firewall throughput: 5 / 5 / 5 Gbps (1518 / 512 / 64 byte UDP)
- Firewall latency: 4 µs (64 byte UDP)
- Firewall throughput: 7.5 Mpps
- IPS throughput: 1 Gbps
- NGFW throughput: 800 Mbps
- Threat Protection throughput: 600 Mbps
- IPsec VPN throughput (512 byte): 4.4 Gbps
- SSL-VPN throughput: 490 Mbps
- SSL inspection throughput (IPS, avg. HTTPS): 310 Mbps
- Concurrent sessions (TCP): 700,000
- New sessions per second (TCP): 35,000
- Gateway-to-Gateway IPsec VPN tunnels: 200; Client-to-Gateway: 250
- Virtual Domains (default/max): 10 / 10
- Max FortiSwitches supported: 8; Max FortiAPs (total/tunnel): 10 / 5
- Form factor: Desktop; Dimensions 1.44"H x 5.5"W x 8.52"D; Weight 2.20 lbs
- Power: external DC power adapter, 100-240V AC
- Processor: Fortinet SOC4 ASIC
- Operating system: FortiOS

FAQs

Q: How many network ports does the FG-40F have?
A: The FG-40F has 5 x GE RJ45 ports: 1 WAN, 1 FortiLink and 3 internal. It also has 1 USB port and 1 RJ45 console port.

Q: Does the FG-40F include built-in Wi-Fi or 3G/4G?
A: No. The FG-40F is a hardware-only model with no wireless or 3G/4G capability.

Q: What is the FortiLink port used for?
A: The FortiLink port lets you manage a FortiSwitch as a logical extension of the firewall. It can also be reconfigured as a regular port if you do not need FortiLink.

Q: How many FortiSwitches and FortiAPs can the FG-40F manage?
A: It supports up to 8 FortiSwitches and up to 10 FortiAPs in total, of which 5 can be tunnel-mode.

Q: What throughput can I expect when security features are enabled?
A: The FG-40F delivers 1 Gbps IPS, 800 Mbps NGFW and 600 Mbps Threat Protection throughput. SSL inspection throughput is 310 Mbps.

Q: What VPN capacity does the FG-40F support?
A: It supports 200 Gateway-to-Gateway and 250 Client-to-Gateway IPsec VPN tunnels, with 4.4 Gbps IPsec VPN throughput (512 byte) and 490 Mbps SSL-VPN throughput.
