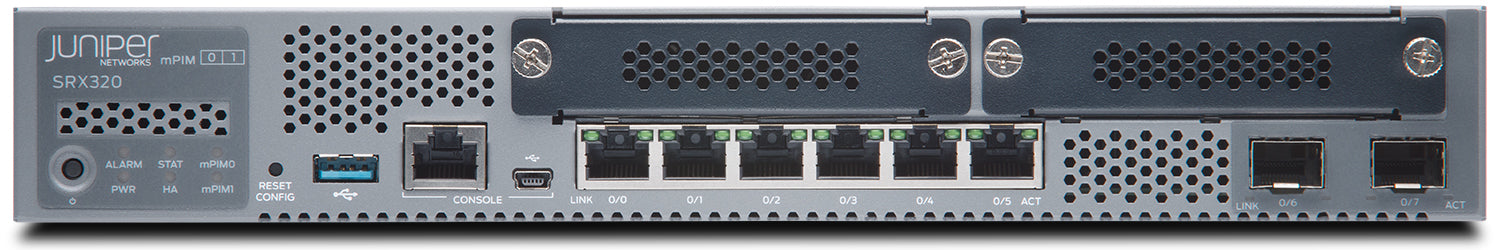

• Juniper SRX320 silver firewall with perforated casing and Ethernet ports
1 1

Juniper

Juniper SRX320 | Firewall, Hardware Only, 8GE, 2x SFP, 2x MPIM

Juniper SRX320 | Firewall, Hardware Only, 8GE, 2x SFP, 2x MPIM

Authorised Juniper Partner

SRX320

Stock Status: Enquire

$2,322.43 inc. GST
$2,111.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Juniper SRX320 is a compact desktop branch-office firewall that combines security, routing, switching and WAN connectivity in a single device. This hardware-only SKU provides 8 x 1GbE onboard ports (6 x RJ-45 and 2 x SFP), 2 x Mini-PIM WAN slots, 4 GB RAM and 8 GB flash, in a non-PoE configuration with an external AC power supply.

This SKU ships without Junos software and requires a Junos software SKU such as the SRX320-JSB or SRX320-JSE to complete the system. The two Mini-PIM slots allow WAN interface expansion, and the SFP ports are MACsec-capable for secure Ethernet links.

Features

- Consolidates security, routing, switching and WAN connectivity in a compact desktop device
- Two Mini-PIM slots for WAN interface expansion such as T1/E1, Wi-Fi or LTE modules
- MACsec-capable ports for encrypted Ethernet links
- 2 x SFP ports for fibre uplinks alongside 6 x RJ-45 ports
- Hardware-only SKU that requires a Junos software SKU (SRX320-JSB or SRX320-JSE) to complete the system

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 1GbE onboard ports (6 x RJ-45 and 2 x SFP)
- 2 x Mini-PIM (WAN) slots
- 4 GB RAM and 8 GB flash
- Up to 1.9 Gbps firewall performance
- Up to 336 Mbps IPsec VPN performance
- 200 Mbps IPS performance
- 64,000 maximum concurrent sessions
- 5,000 new sessions per second
- 256 IPsec VPN tunnels
- 1 x RJ-45 and miniUSB console port, 1 x USB 3.0 Type A port
- Desktop form factor, external AC power supply
- Non-PoE model
- Dimensions: 29.99 x 4.39 x 19.10 cm

FAQs

Q: Does the SRX320 hardware-only SKU include Junos software?
A: No. This SKU is hardware only and requires a Junos software SKU such as the SRX320-JSB or SRX320-JSE to complete the system.

Q: How many ports does the SRX320 have?
A: It has 8 x 1GbE onboard ports, made up of 6 x RJ-45 and 2 x SFP, plus two Mini-PIM slots for WAN expansion.

Q: Does this SRX320 model support PoE?
A: No. This is the non-PoE hardware. PoE+ on 6 ports is only available on the SRX320-SYS-JB-P model.

Q: Is a rack mount kit included?
A: No. The unit is a desktop form factor and the rack mount kit is not included. An external power supply and cable are supplied.

Q: What WAN expansion options does the SRX320 offer?
A: Two Mini-PIM slots allow WAN interface modules to be added, for example T1/E1, Wi-Fi or LTE modules.

Q: What firewall throughput can the SRX320 deliver?
A: Up to 1.9 Gbps firewall performance, with 336 Mbps IPsec VPN and 200 Mbps IPS performance, supporting up to 64,000 concurrent sessions.
