• Ubiquiti UACC-AOC-SFP10-30M 30m teal SFP+ 10Gbps direct attach cable
1 1

Ubiquiti

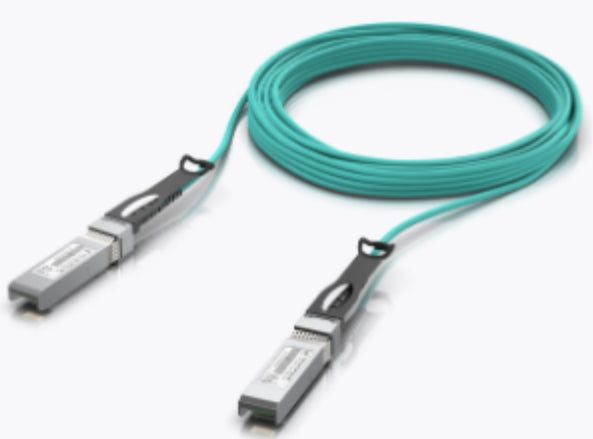

Ubiquiti UACC-AOC-SFP10-30M | UniFi 10G SFP+ Active Optical Direct Attach Cable, 30m

Ubiquiti UACC-AOC-SFP10-30M | UniFi 10G SFP+ Active Optical Direct Attach Cable, 30m

Authorised Ubiquiti Partner

UACC-AOC-SFP10-30M

In stock:12

$141.68 inc. GST
$128.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The UniFi 10G SFP+ Active Optical Direct Attach Cable in the 30m length links SFP+ ports at up to 10 Gbps over long runs, well beyond the reach of passive copper DACs. Built on thin multi-mode OM3 fibre with an SFP+ optical transceiver at each end, it suits switch-to-switch and switch-to-server connections in racks, comms rooms and across a floor.

The 30m cable (98.4 ft) operates at 850 nm and supports both 10 Gbps and 1 Gbps data rates, so it works with SFP+ and SFP interfaces. The slim 3.0 mm aqua PVC jacket and 30 mm minimum bend radius make it easy to route through cable management.

Features

- 10 Gbps maximum data rate, with 1 Gbps also supported
- Compatible with SFP+ and SFP interfaces
- Long-range active optical cable for runs up to 30m
- Thin 3.0 mm multi-mode OM3 fibre cable with an SFP+ optical transceiver at each end
- Aqua PVC jacket with a tight 30 mm bend radius for easy cable routing

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Connector type: SFP+ to SFP+
- Cable length: 30 m (98.4 ft)
- Supported data rate: 10 / 1 Gbps
- Wavelength: 850 nm
- Cable features: Wire, OM3 fibre
- Jacket material: PVC, aqua colour
- Jacket outer diameter: 3.0 mm (0.12 in)
- Minimum bend radius: 30 mm (1.18 in)
- Ambient operating temperature: 0 to 70 C (32 to 158 F)
- Pack option: Single unit

FAQs

Q: What data rates does the UACC-AOC-SFP10-30M support?
A: It supports 10 Gbps and 1 Gbps, so it can be used with both SFP+ and SFP interfaces.

Q: How long is this cable and what other lengths are available?
A: This SKU is the 30m (98.4 ft) version. The UniFi range is also available in 5, 10 and 20m lengths.

Q: What fibre type and wavelength does it use?
A: It uses multi-mode OM3 fibre operating at 850 nm, with an SFP+ optical transceiver at each end.

Q: Why choose an active optical cable over a passive copper DAC?
A: The optical design supports a much longer reach, up to 30m, while the cable remains thin and flexible at 3.0 mm outer diameter.

Q: What is the operating temperature range?
A: The ambient operating temperature range is 0 to 70 C (32 to 158 F).
