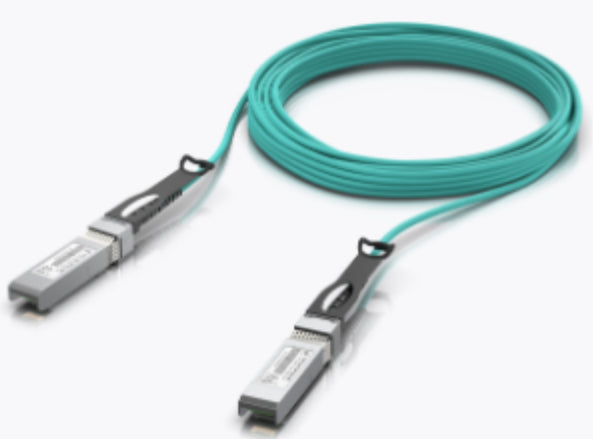

Ubiquiti UACC-AOC-SFP28-10M | SFP28 25G Active Optical Cable, 10m, OM3, Aqua

Ubiquiti UACC-AOC-SFP28-10M | SFP28 25G Active Optical Cable, 10m, OM3, Aqua

Authorised Ubiquiti Partner

SKU:UACC-AOC-SFP28-10M

$180.90 inc. GST
$164.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 5

Description

The UACC-AOC-SFP28-10M is a 10m SFP28 to SFP28 active optical direct attach cable for short-reach 25G links between switches, servers and storage. It supports 25, 10 and 1 Gbps data rates, so it can be deployed in mixed-speed SFP28 and SFP+ environments, and uses 850 nm multimode optics over OM3 fibre.

The slim 3.0 mm aqua PVC jacket makes runs easy to identify and route in the rack, with a minimum bend radius of 30 mm. This 10m version is part of a family offered in 5, 10, 20 and 30 m lengths, and is supplied as a single cable with fixed SFP28 connectors on both ends. Operating temperature range is 0 to 70 C.

Features

- Long-range SFP28 active optical cable with 25 Gbps maximum throughput
- Supports 25, 10 and 1 Gbps data rates
- Available in 5, 10, 20 and 30 m lengths
- Slim 3.0 mm cable for easier routing in dense racks
- Aqua PVC jacket for easy identification

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Connectors: SFP28 to SFP28
- Cable length: 10 m (32.8 ft)
- Supported data rates: 25 / 10 / 1 Gbps
- Wavelength: 850 nm
- Cable type: OM3 multimode fibre
- Jacket: PVC, aqua colour
- Jacket outer diameter: 3.0 mm (0.12 in)
- Minimum bend radius: 30 mm (1.18 in)
- Operating temperature: 0 to 70 C (32 to 158 F)
- Pack: single unit

FAQs

Q: What data rates does the UACC-AOC-SFP28-10M support?
A: It supports 25, 10 and 1 Gbps data rates over its 10m SFP28 active optical link.

Q: How long is this cable?
A: This SKU is the 10 m (32.8 ft) version. The same family is also offered in 5, 20 and 30 m lengths.

Q: What type of fibre does it use?
A: It is built on OM3 multimode fibre and operates at an 850 nm wavelength.

Q: Is this a passive DAC or an active optical cable?
A: It is an active optical cable (AOC) with fixed SFP28 connectors on both ends, which allows longer reach than a passive copper DAC.

Q: What is the minimum bend radius?
A: The minimum bend radius is 30 mm (1.18 in), and the jacket outer diameter is 3.0 mm.

Q: What operating temperature range does it support?
A: The cable is rated for operation from 0 to 70 C (32 to 158 F).
