ATEN

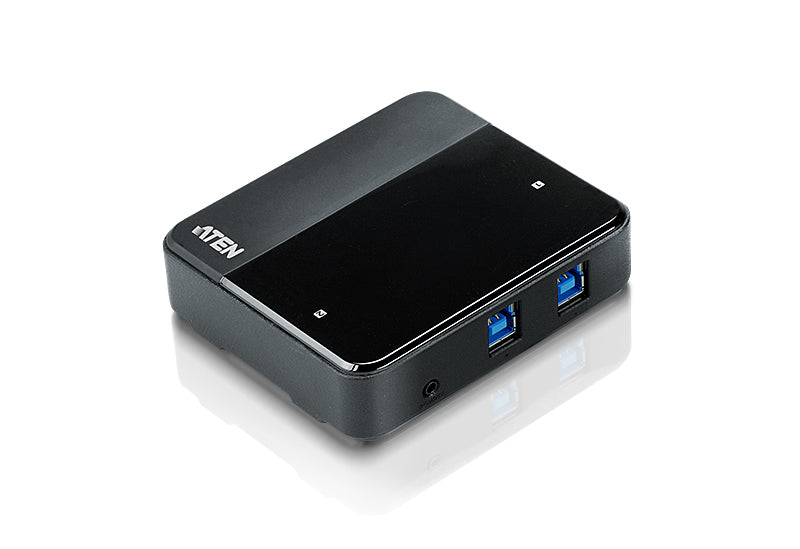

ATEN US234-AT | US234 2-Port USB 3.0 Peripheral Switch, 4x USB-A, Remote

ATEN US234-AT | US234 2-Port USB 3.0 Peripheral Switch, 4x USB-A, Remote

Authorised ATEN Partner

SKU:US234-AT

$80.85 inc. GST
$73.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The ATEN US234 is a 2-port USB 3.0 peripheral switch that lets two computers share four USB-A devices, such as keyboards, mice, storage drives and printers. It supports data rates up to 5Gbps (USB 3.1 Gen 1) and includes a remote port selector on a 1.8 m cable, so the switch can sit out of sight while you change computers from the desk.

Two USB Type-B computer ports and four USB Type-A device ports make it a compact fit for shared workstations, test benches and control rooms. It is backwards compatible with USB 2.0 and 1.1 devices, supports Windows, Linux and Mac, and is hot pluggable with no driver or software required. It is bus-powered, with an optional micro USB power jack for additional power. LEDs show which computer is active, and over-current protection helps protect connected devices.

Features

- Lets 2 computers share 4 USB 3.0 devices
- Remote port selector for convenient switch placement
- USB 3.0 compliant with transfer rates up to 5Gbps
- LEDs indicate which computer is active
- Over-current protection
- Windows, Linux and Mac support
- Bus-powered, with micro USB power jack for additional power supply
- Hot pluggable, no driver or software required

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Computer connections: 2 x USB Type-B female
- Device connections: 4 x USB Type-A female (USB 3.0 / USB 3.1 Gen 1)
- Data transfer rate: up to 5 Gbps, backwards compatible with USB 2.0 and 1.1
- Port selection: remote port selector with 1.8 m cable
- Optional power: 1 x USB Micro-B female
- LEDs: 2 x Selected (white)
- Included USB cables: 2 x 1.2 m Type-B to Type-A
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 60 C
- Humidity: 0 to 80% RH, non-condensing
- Housing: plastic
- Weight: 0.12 kg
- Dimensions (L x W x H): 93.7 x 93 x 26.8 mm
- Package contents: US234, 2 x USB 3.1 Gen 1 Type-B to Type-A cables, remote port selector, user instructions

FAQs

Q: How many computers and devices does the ATEN US234 support?
A: The US234 connects two computers through its two USB Type-B ports and shares four USB Type-A devices between them.

Q: What speed does the US234 support?
A: It is USB 3.0 (USB 3.1 Gen 1) compliant and supports data transfer rates up to 5Gbps. It is also backwards compatible with USB 2.0 and 1.1 devices.

Q: Are the USB cables included?
A: Yes. The package includes two 1.2 m USB 3.1 Gen 1 Type-B to Type-A cables and the remote port selector.

Q: Does the US234 need drivers or an external power supply?
A: No drivers or software are required, and the unit is hot pluggable. It is bus-powered, with a micro USB power jack available for additional power if needed (power adapter sold separately).

Q: How do I switch between computers?
A: Use the remote port selector, which has a 1.8 m cable so you can place it within easy reach. LEDs show which computer is currently active.

Q: Which operating systems does it work with?
A: The US234 supports Windows, Linux and Mac computers.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
