ATEN

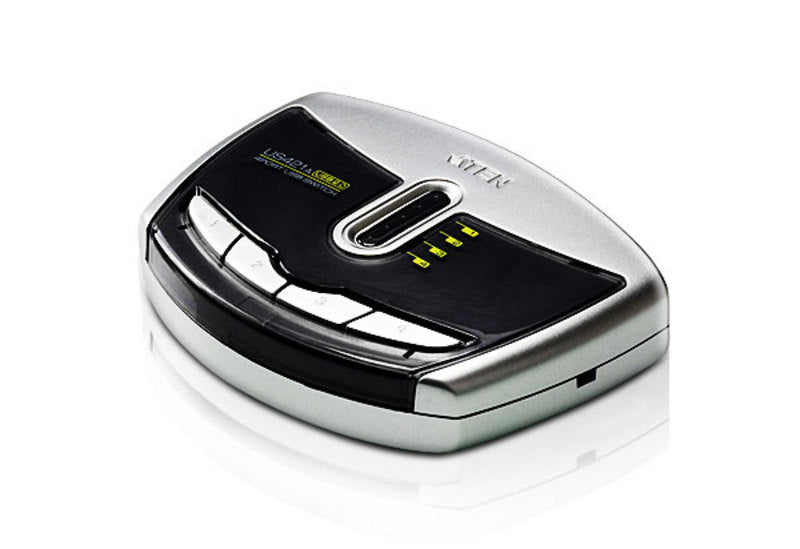

ATEN US421A-AT | US421A 4-Port USB 2.0 Peripheral Switch, 4 x PC, 1 x USB

ATEN US421A-AT | US421A 4-Port USB 2.0 Peripheral Switch, 4 x PC, 1 x USB

Authorised ATEN Partner

SKU:US421A-AT

$67.38 inc. GST
$61.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The ATEN US421A is a 4-port USB 2.0 peripheral switch that lets up to four computers share a single USB device such as a printer, scanner or storage drive. It provides 4 x USB Type-B computer ports and 1 x USB Type-A device port, with transfer rates up to 480 Mbps. Port focus can be changed with front pushbuttons, a software utility or the Auto Switch function, so no print server is needed.

The switch is bus powered and hot pluggable, which keeps deployment simple on shared desks and meeting spaces. LED indicators show the active port, a buzzer signals switching between computers, and overcurrent protection helps safeguard connected devices. It supports Windows and Mac systems and works with multifunction printers. A 1.8 m USB Type-A to Type-B cable is included.

Features

- Lets four computers share a single USB peripheral device
- Port selection via pushbuttons, configuration utility or Auto Switch function
- Auto Switch function means no print server is needed
- USB 2.0 compliant, up to 480 Mbps
- Supports Windows and Mac
- LED indicators show port focus
- Overcurrent protection
- Bus-powered and hot pluggable
- Buzzer indicates switching between computers
- Supports multifunction printers

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x USB Type-B computer ports
- 1 x USB Type-A device port
- USB 2.0, transfer rate up to 480 Mbps
- Port selection: pushbuttons, software, Auto Switch
- Power: USB bus powered
- LEDs: 4 x green selected, 1 x orange device
- Operating temperature: 0-40 C
- Storage temperature: -20-60 C
- Humidity: 0-80% RH, non-condensing
- Housing: plastic
- Weight: 0.10 kg (0.22 lb)
- Dimensions (L x W x H): 10.40 x 7.96 x 2.20 cm (4.09 x 3.13 x 0.87 in.)
- Package contents: 1 x US421A switch, 1 x USB Type-A to Type-B cable (1.8 m), 1 x user instructions

FAQs

Q: How many computers can share one device with the US421A?
A: Up to four computers can connect to the 4 x USB Type-B ports and share the single USB Type-A device port.

Q: What kinds of devices can be shared?
A: USB peripherals such as printers, scanners and storage drives can be shared, including multifunction printers.

Q: How do I switch between computers?
A: Use the front pushbuttons, the software configuration utility, or the Auto Switch function, which changes port focus automatically.

Q: Does it need external power?
A: No. The US421A is USB bus powered and hot pluggable, so no separate power adapter is required.

Q: Is a USB cable included?
A: Yes. One 1.8 m USB Type-A to Type-B cable is supplied with the switch.

Q: Does Auto Switch work on all Windows versions?
A: Auto Switch may be disabled on Windows 8.1 or lower when a USB 3.0 driver is installed. Manual switching by pushbutton or software still applies.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
