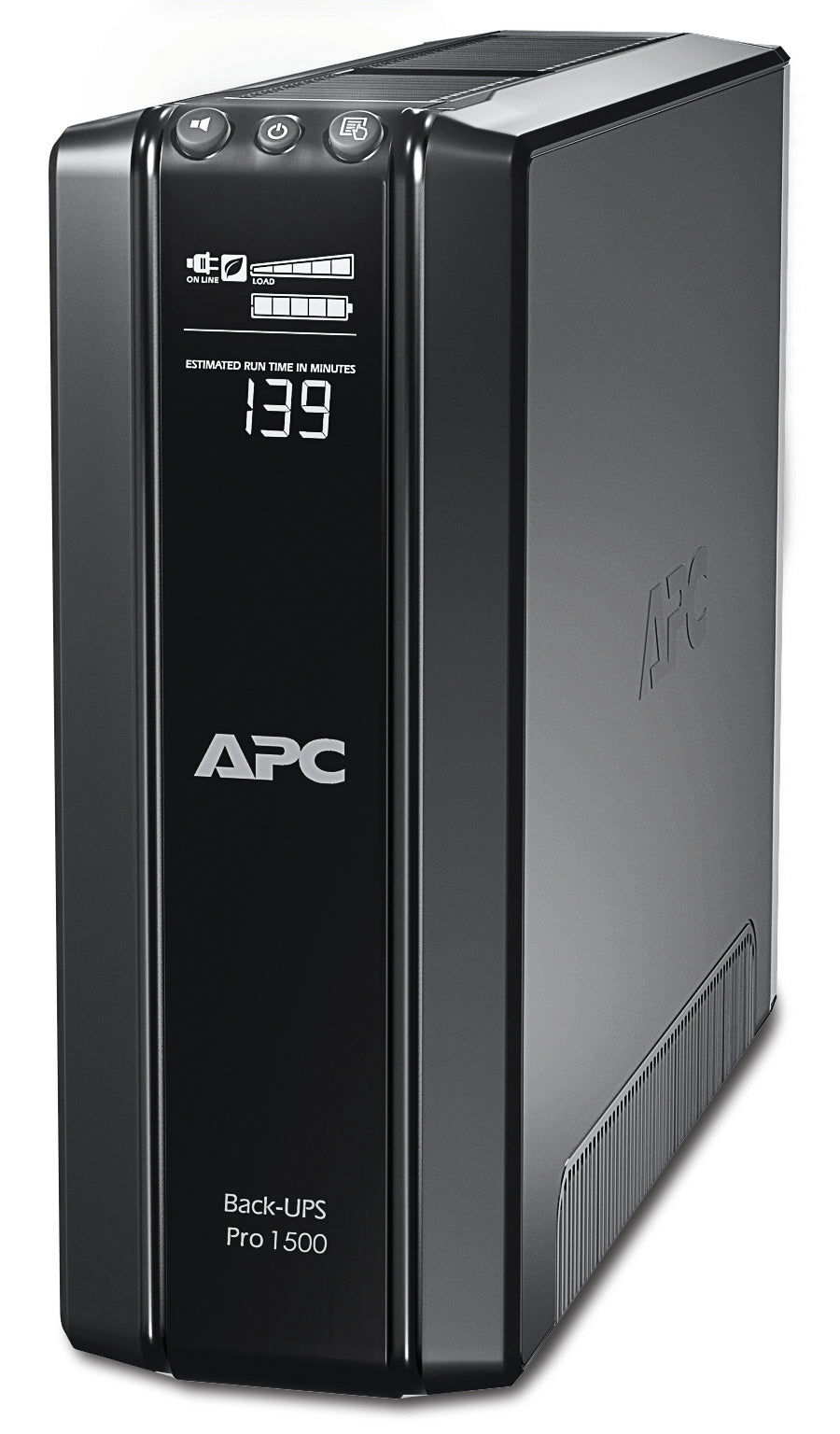

APC BR1500GI | Back-UPS Pro 1500VA/865W Tower UPS, 10x IEC C13, LCD

APC BR1500GI | Back-UPS Pro 1500VA/865W Tower UPS, 10x IEC C13, LCD

Authorised APC Partner

SKU:BR1500GI

In stock:59

$719.79 inc. GST
$654.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC BR1500GI is a Back-UPS Pro 1500VA/865W line-interactive tower UPS with 230V output, 10x IEC C13 outlets and automatic voltage regulation. Five outlets provide battery backup and five provide surge protection only, making it well suited to protecting workstations, routers, storage and other network equipment. A multi-function LCD status console and an external battery connector for extended runtime support day-to-day monitoring and scalable protection.

The user-replaceable sealed lead-acid battery (APCRBC124 cartridge) allows quick servicing without specialist tools. The Power-Saving function switches off peripherals when the master device sleeps or is powered down, while USB connectivity, RJ-11 and RJ-45 data line surge protection and audible alarms help keep connected equipment safe and visible. The unit ships with a detachable IEC power cord, 2x IEC jumper cords, telephone cable, USB cable and software CD.

Features

- Power-Saving function: Master and Controlled outlets switch off peripherals when the master device sleeps or is switched off
- Automatic voltage regulation (AVR) corrects brown-outs and over-voltages without using the battery
- Multi-function LCD display for status and configuration
- User-replaceable battery for simple maintenance
- Audible alarms for on-battery, low-battery and overload conditions
- Ethernet and phone line surge protection
- Includes software CD, detachable IEC power cord, telephone cable and USB cable

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 1500VA / 865W output power capacity
- 230V nominal output voltage, line-interactive topology with AVR
- Stepped approximation to a sinewave output waveform
- 10 x IEC C13 outlets: 5 battery backup and 5 surge protection only
- 2 x IEC jumper cords (battery backup)
- Input: 230V, 50/60Hz auto-sensing, IEC-320 C14 inlet, 10A input breaker, 1.83m cord
- Input voltage range for main operations: 151-299V
- Battery: maintenance-free sealed lead-acid, replacement cartridge APCRBC124, typical recharge time 8 hours
- Efficiency: 89% at full load, 85% at half load
- Interface: USB, multi-function LCD status and control console
- Data line protection: RJ-11 phone/DSL and RJ-45 10/100/1000 Ethernet
- External battery pack connector (BR24BPG extended run option)
- Dimensions (H x W x D): 302 x 112 x 382 mm, net weight 12.7 kg
- Operating environment: 0-40°C, 0-95% relative humidity, up to 3000m elevation
- CE certified

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many outlets are battery backed on the APC BR1500GI?
A: The BR1500GI has 10 IEC C13 outlets. Five provide battery backup with surge protection and five provide surge protection only, so non-critical devices do not draw on battery runtime.

Q: Can the battery be replaced by the user?
A: Yes. The sealed lead-acid battery is user replaceable. The replacement cartridge is the APC APCRBC124.

Q: Can I extend the runtime of this UPS?
A: Yes. The BR1500GI has an external battery pack connector that supports the BR24BPG extended run battery option.

Q: What is the Power-Saving function?
A: Master and Controlled outlets let the UPS switch off peripherals such as monitors and printers automatically when the master device, for example a PC, goes to sleep or is turned off, reducing standby power use.

Q: What type of output waveform does it provide?
A: It is a line-interactive UPS with a stepped approximation to a sinewave output on battery, with AVR for correcting input voltage variations.

Q: Does it protect network and phone lines?
A: Yes. It includes data line surge protection for RJ-11 phone/DSL and RJ-45 10/100/1000 Ethernet connections.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.
