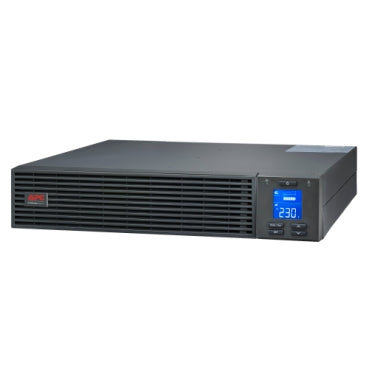

• APC SRV2KRIRK-E UPS front view with digital display showing 1230 and control buttons
1 1

APC

APC SRV2KRIRK-E | Easy UPS On-Line Rack UPS, 2000VA/1800W, 2U, 4x C13, Rail Kit

APC SRV2KRIRK-E | Easy UPS On-Line Rack UPS, 2000VA/1800W, 2U, 4x C13, Rail Kit

Authorised APC Partner

SRV2KRIRK-E

In stock:97

$1,352.29 inc. GST
$1,229.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Easy UPS On-Line SRV is a double-conversion on-line rackmount UPS rated at 2000VA/1800W, delivering clean pure sine wave power to servers, network equipment and other essential IT loads. This 2U model provides 4x IEC C13 outlets on 230V single phase and ships with a rail kit for straightforward rack installation.

On-line topology protects connected equipment from unstable mains conditions, with a wide input voltage window that reduces battery use, plus automatic and manual internal bypass. A multifunction LCD gives clear status and control, and an Intelligent (SmartSlot) card slot with USB and serial connectivity allows integration with network management cards. Output voltage is configurable for 220, 230 or 240V.

Features

- Double-conversion on-line protection against the most unstable power conditions
- Pure sine wave output suitable for sensitive IT and network equipment
- Wide input voltage window (110...285 V at 40% load) reduces battery use
- Automatic and manual internal bypass
- Multifunction LCD for status and control
- Intelligent (SmartSlot) card slot for network management cards
- USB and serial connectivity
- Rail kit included for rack installation in a 2U space
- Configurable 220/230/240 V nominal output voltage

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Rated power: 2000 VA / 1800 W
- Topology: On-Line double-conversion
- Waveform: Pure sine wave
- Input: 230 V AC single phase, IEC 60320 C14, 40...70 Hz auto sensing
- Output: 230 V AC single phase (configurable 220/230/240 V), 50/60 Hz
- Output connections: 4 x IEC 60320 C13
- Bypass: Internal automatic and manual
- Battery: Internal lead-acid, 48 V, included
- Replacement battery: APCRBCV201
- Typical recharge time: 4 hours
- Control panel: Multifunction LCD status and control console
- Connectivity: USB port, serial port, 1 x Intelligent (SmartSlot) card slot
- Form factor: 2U rackmount, rail kit included
- Dimensions (H x W x D): 86 x 438 x 462 mm
- Weight: 18.8 kg
- Operating temperature: 0...40 C
- Acoustic level: 50 dBA
- Efficiency: 88% at full load
- Certifications: CE, UKCA, TISI

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of UPS is the SRV2KRIRK-E?
A: It is an on-line double-conversion UPS with pure sine wave output, rated at 2000VA/1800W, which continuously conditions power for connected equipment.

Q: Is a rail kit included?
A: Yes. A rail kit is supplied for installing the UPS in a standard rack, and the unit occupies 2U of rack space.

Q: What outlets and input connection does it have?
A: It provides 4 x IEC 60320 C13 output outlets and uses an IEC 60320 C14 input connection, with a 1.5 m input cable.

Q: Can I add network management to this UPS?
A: Yes. It has one Intelligent (SmartSlot) card slot for management cards, plus USB and serial ports for local connectivity.

Q: What happens if the UPS is overloaded or has an internal fault?
A: The UPS includes internal automatic and manual bypass, and it sounds a continuous tone alarm when overloaded.

Q: How is the battery replaced?
A: The UPS contains an internal 48 V lead-acid battery. The replacement battery cartridge is APCRBCV201, with typical battery life of 3 to 5 years.
