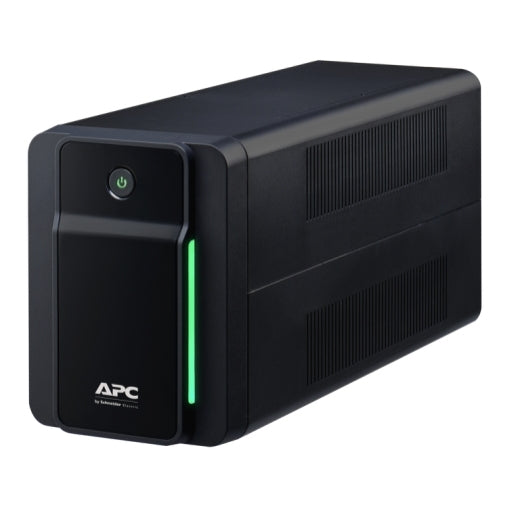

• APC BX950MI-AZ 950VA UPS black surge protector with green LED
1 1

APC

APC BX950MI-AZ | Back-UPS 950VA/520W Tower UPS, 4x AS/NZS 3112, AVR

APC BX950MI-AZ | Back-UPS 950VA/520W Tower UPS, 4x AS/NZS 3112, AVR

Authorised APC Partner

BX950MI-AZ

In stock:262

$191.36 inc. GST
$173.96 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC Back-UPS BX950MI-AZ is a line-interactive tower UPS rated 950VA / 520W with automatic voltage regulation, built for home and small office electronics. It provides battery backup and surge protection through four Australian-standard AS/NZS 3112 outlets, making it a practical fit for PCs, routers, modems and other everyday equipment.

AVR corrects brownouts and over-voltage without draining the battery, while a USB data port with SmartConnect compatibility supports remote monitoring. An LED display shows on-line and on-battery status, and the compact black tower design (160 x 120 x 355 mm, 6.1 kg) sits neatly on a desk or floor. It uses a 12 V sealed lead-acid battery and is not rack-mountable.

Features

- Automatic voltage regulation (AVR) corrects brownouts and over-voltage without draining the battery
- Battery backup and surge protection for PCs, networking and home or office electronics
- Four Australian-standard outlets with battery backup and surge protection
- USB connectivity with SmartConnect compatibility for remote monitoring
- LED status display showing on-line and on-battery operation
- Compact tower design suits desktop or floor placement
- Take-back available and packaging made with recycled cardboard

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 950 VA / 520 W rated output
- Line-interactive topology with AVR
- Input voltage range (AVR): 140 to 300 V
- 230 V AC single-phase input and output
- 4 x AS/NZS 3112 (Australian) outlets
- Input frequency: 50/60 Hz +/- 5 Hz auto-sensing
- Waveform: stepped approximation to a sinewave
- Transfer time: 6 ms typical, 10 ms maximum
- Runtime: 6 min 30 s at half load (240 W), 1 min at full load (480 W)
- Battery: 12 V sealed lead-acid, internal, included
- Typical recharge time: 8 hours
- Surge energy rating: 273 J
- USB data port, SmartConnect compatible
- LED status display (on line / on battery)
- Input cable length: 1.2 m
- Dimensions (H x W x D): 160 x 120 x 355 mm
- Weight: 6.1 kg
- Tower form factor, not rack-mountable
- Acoustic level: 40 dBA
- Certifications: CE, CB, RCM

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Can the BX950MI-AZ be rack mounted?
A: No. It is a tower-format UPS and is not rack-mountable.

Q: What type of outlets does it have?
A: It has four AS/NZS 3112 Australian outlets, all with battery backup and surge protection.

Q: How long will it run on battery?
A: Runtime is about 6 minutes 30 seconds at half load (240 W) and about 1 minute at full load (480 W).

Q: Does it include automatic voltage regulation?
A: Yes. AVR corrects brownouts and over-voltage across a 140 to 300 V input range without switching to battery.

Q: How can I monitor the UPS?
A: It has a USB data port and is compatible with SmartConnect software for remote monitoring. An LED display shows on-line and on-battery status.

Q: What battery does it use and how long does it last?
A: It uses an internal 12 V sealed lead-acid battery, included, with a typical battery life of 3 to 5 years.

APC Replacement Battery Finder

How Do I Choose the Right APC UPS Battery?

Finding the correct replacement battery for your APC UPS can be confusing Our APC Battery Finder makes it easy. Simply enter your UPS model to get the exact battery match, the correct quantity required, and guidance if your unit is end-of-life with upgrade options.

Designed for fast, accurate results, this tool helps Australian businesses & IT teams avoid downtime and order the right APC UPS battery the first time.

Find My APC Battery
