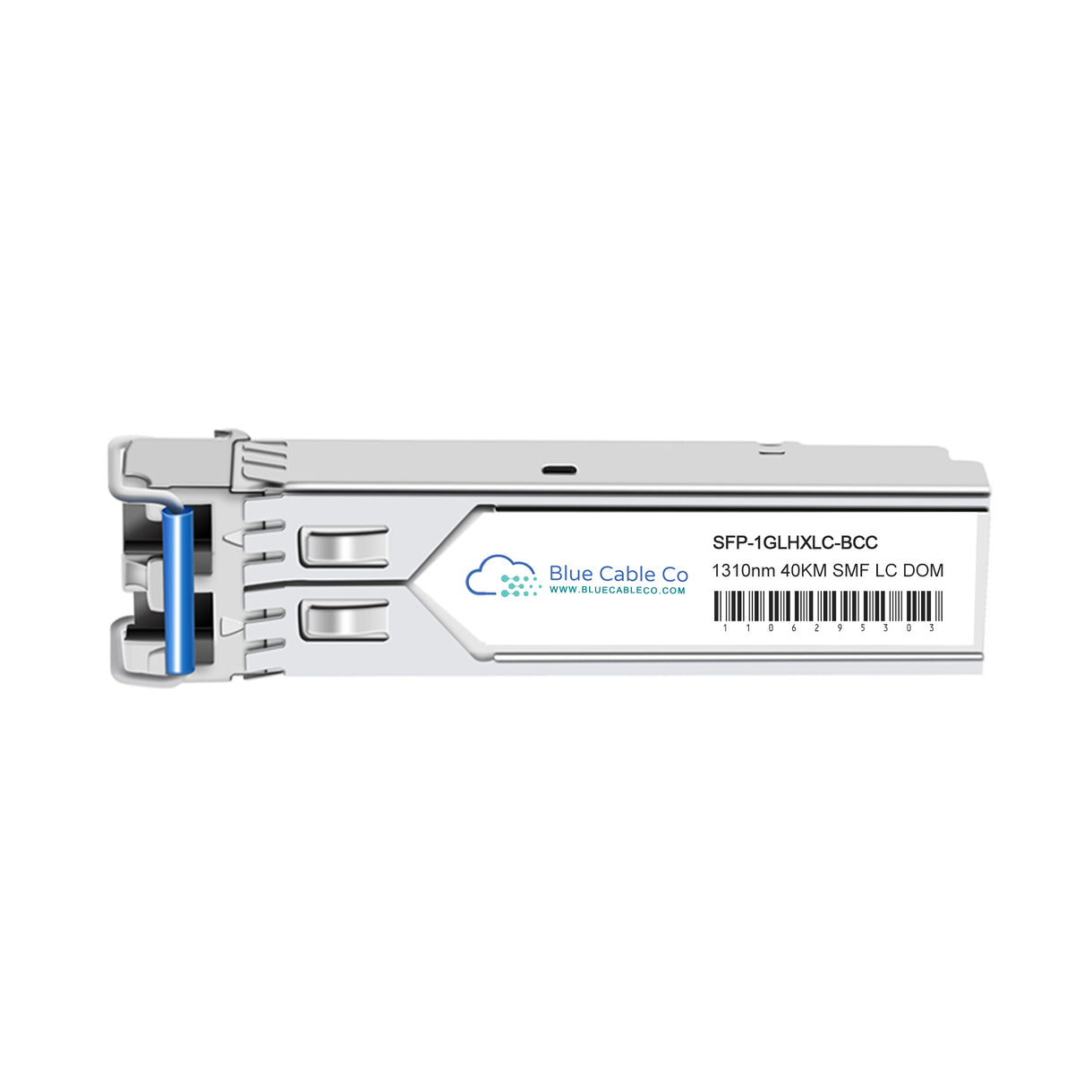

• Silver SFP-1GLHXLC-BCC transceiver with blue LC connector, Moxa compatible
1 1

Blue Cable Co

SFP-1GLHXLC-BCC | Moxa Compatible 1GB Single-Mode ER - 40km (1000BASE-EX)

SFP-1GLHXLC-BCC | Moxa Compatible 1GB Single-Mode ER - 40km (1000BASE-EX)

SFP-1GLHXLC-BCC

In stock:12

$69.30 AUD
$69.30 AUD
$69.30 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SFP-1GLHXLC-BCC is a drop-in compatible replacement for the Moxa SFP-1GLHXLC. This SFP transceiver provides plug-and-play compatibility with Moxa Gigabit Ethernet switches that require 1000BASE-EX connectivity over single-mode fiber. - IEEE 802.3z compliant for standards-based Gigabit Ethernet operation - SFP form factor, 1.25Gbps data rate, 1310nm wavelength, 40km maximum reach over 9/125um single-mode fiber - LC duplex connector with hot-pluggable design for field serviceability - Digital Diagnostic Monitoring (DDM) support via SFF-8472 for real-time performance tracking - 0 to 60°C operating temperature range suitable for industrial networking environments

Features

• IEEE 802.3z compliance ensures interoperability with standards-based Gigabit Ethernet equipment across vendor platforms
• 1310nm DFB laser transmitter with higher power budget than 1000BASE-LX extends reach to 40km over OS1/OS2 single-mode fiber
• DDM functionality provides real-time access to transmit power, receive power, temperature, voltage, and bias current for proactive link monitoring
• Hot-pluggable SFP footprint with differential LVPECL interface supports live insertion and removal without disrupting adjacent ports
• Class 1 laser safety compliant design suitable for deployment in industrial automation, building interconnect, and campus backbone applications
• 1000BASE-EX nomenclature indicates extended-reach variant exceeding standard 1000BASE-LX distance specifications

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty item, minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-1GLHXLC-BCC
Compatible Replacement For: SFP-1GLHXLC
Compatibility: Moxa compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25Gbps
Standards: IEEE 802.3z (1000BASE-EX), SFP MSA, SFF-8472
Wavelength: 1310nm
Fibre Type: Single-mode (9/125um)
Connector Type: LC duplex
Max Reach: 40km (subject to fibre quality and link loss budget)
DOM Support: Yes (DDM via SFF-8472)
Operating Temperature: 0 to 60°C

FAQs

Q: Will this work in place of the Moxa SFP-1GLHXLC?
A: Yes. This module is engineered to the same 1000BASE-EX specification as the Moxa SFP-1GLHXLC: SFP form factor, 1.25Gbps data rate, 1310nm wavelength, 40km reach over single-mode fiber, and LC duplex connector. It is plug-and-play compatible with Moxa switches and requires no configuration changes.

Q: Which Moxa switches and platforms support this transceiver?
A: This module is compatible with Moxa ICS-G7000, ICS-G7800, EDS-G500, EDS-518A, EDS-510A, IKS-G6800, IKS-6700, and similar Gigabit Ethernet switches with SFP slots. Any Moxa platform with an MSA-compliant SFP port supporting 1000BASE-EX or 1000BASE-LX will accept this transceiver.

Q: What fiber type and quality are required to achieve 40km reach?
A: This transceiver requires 9/125um single-mode fiber meeting OS1 or OS2 specifications. Actual reach depends on link loss budget: connectors, splices, bends, and fiber age all reduce optical power. The 1310nm wavelength and extended power budget are designed to overcome typical insertion losses over 40km spans.

Q: How do I access the DDM parameters for link diagnostics?
A: The module supports SFF-8472 Digital Diagnostic Monitoring. Most managed Moxa switches expose DDM data via CLI or web interface, displaying transmit power, receive power, temperature, voltage, and laser bias current. These real-time measurements help identify marginal links, dirty connectors, or fiber degradation before complete link failure.

Q: Can this transceiver operate in outdoor or harsh temperature environments?
A: This standard-temperature variant operates from 0 to 60°C, suitable for indoor networking cabinets and climate-controlled environments. For outdoor deployments or industrial applications requiring extended temperature tolerance down to -40°C, Moxa offers the SFP-1GLHXLC-T variant with hardened components.
