SFP-10GSR-Dell-BCC | Dell Compatible 10GB Multi-Mode 300m (10GBASE-SR)

SFP-10GSR-Dell-BCC | Dell Compatible 10GB Multi-Mode 300m (10GBASE-SR)

SFP-10GSR-Dell-BCC

In stock:10

$62.70 AUD
$62.70 AUD
$62.70 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The SFP-10GSR-Dell-BCC is a drop-in compatible replacement for the Dell SFP-10G-SR and its variants (407-BBOU, 407-BCBN, 407-BBVJ, 407-10596). This SFP+ transceiver provides plug-and-play compatibility with Dell networking equipment, delivering 10 Gigabit Ethernet connectivity over multi-mode fibre. - IEEE 802.3ae 10GBASE-SR compliance ensures seamless interoperability with Dell switches and routers equipped with SFP+ ports - SFP+ form factor, 10 Gbps data rate, 850nm VCSEL wavelength, duplex LC connector - Supports up to 300m over OM3 multi-mode fibre, up to 400m over OM4 - Digital Diagnostic Monitoring (DDM) via SFF-8472 interface for real-time access to temperature, optical power, bias current, and supply voltage - Hot-pluggable design with low power consumption, typically under 1.05W - Available as SFP-10G-SR, 407-BBOU, 407-BCBN, 407-BBVJ, and 407-10596 variant options

Features

• IEEE 802.3ae 10GBASE-SR compliance guarantees interoperability with Dell SFP+ ports and ensures compatibility across multi-vendor 10 Gigabit Ethernet networks
• 850nm VCSEL transmitter with PIN photodiode receiver and trans-impedance preamplifier delivers reliable optical transmission over OM1, OM2, OM3, and OM4 multi-mode fibre types
• DDM capability via SFF-8472 two-wire serial interface provides real-time monitoring of five critical parameters: transceiver temperature, laser bias current, transmit optical power, receive optical power, and supply voltage
• Hot-pluggable SFP+ footprint allows insertion and removal without powering down the host device, supporting pay-as-you-populate network expansion
• Low power budget design with typical consumption under 1.05W reduces thermal load in high-density switch environments
• Supports multiple Dell part number variants (SFP-10G-SR, 407-BBOU, 407-BCBN, 407-BBVJ, 407-10596) for unified inventory management across different Dell platforms

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we"ll deliver a replacement part before you return the faulty item,minimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-10GSR-Dell-BCC
Compatible Replacement For: SFP-10G-SR, 407-BBOU, 407-BCBN, 407-BBVJ, 407-10596
Compatibility: Dell compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP+
Data Rate: 10 Gbps
Wavelength: 850nm
Fibre Type: Multi-mode (MMF)
Connector Type: Duplex LC
DOM Support: Yes (SFF-8472)
Standards: IEEE 802.3ae 10GBASE-SR, SFF-8431, SFF-8432, SFP+ MSA
Max Reach: 300m over OM3, 400m over OM4 (per datasheet, subject to fibre and link conditions)
Operating Temperature: 0 to 70°C
Power Supply: 3.3V
Power Consumption: <1.05W typical

FAQs

Q: Will this work in place of the Dell SFP-10G-SR or 407-BBOU / 407-BCBN / 407-BBVJ / 407-10596?
A: Yes. This transceiver is engineered to the same IEEE 802.3ae 10GBASE-SR standard, SFP+ form factor, and 10 Gbps data rate as the Dell originals. It is plug-and-play compatible and will operate identically in any Dell SFP+ port that accepts these part numbers.

Q: Which Dell platforms support this transceiver?
A: This module is compatible with Dell PowerEdge servers (R440, R540, R640, R720, R730, R740, R815, R910, T130, T330, T430, T630, T640) and Dell Networking switches (N-series, S-series, X-series) equipped with SFP+ ports. Any Dell device with an open SFP+ slot supporting 10GBASE-SR will accept this transceiver.

Q: What fibre types can I use, and what reach can I expect?
A: This transceiver supports OM1 (62.5/125μm) up to 33m, OM2 (50/125μm) up to 82m, OM3 (50/125μm) up to 300m, and OM4 (50/125μm) up to 400m. Actual reach depends on the optical power budget of 4.6 dB minimum, fibre quality, patch panel losses, and connector cleanliness. Always verify link budget for your specific installation.

Q: How do I access the DDM parameters on this module?
A: DDM data is accessible via the SFF-8472 two-wire I2C serial interface at address A2h. Most Dell network operating systems and management tools (ONIE, Dell Networking OS, iDRAC for certain NICs) expose these values through CLI or GUI. Parameters include temperature, TX bias current, TX power, RX power, and supply voltage, updated in real time.

Q: Can I mix this transceiver with OEM Dell optics on the same switch?
A: Yes. Because this module complies with the same SFP+ MSA mechanical specification and IEEE 802.3ae electrical and optical standards, it will interoperate seamlessly with Dell OEM optics and third-party transceivers on the same chassis. Mixing is supported as long as all optics on a given link use the same wavelength and fibre type (850nm multi-mode in this case).

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% Compatible With Equipment From Major Vendors

Coded & tested in our state of the art lab in Sydney

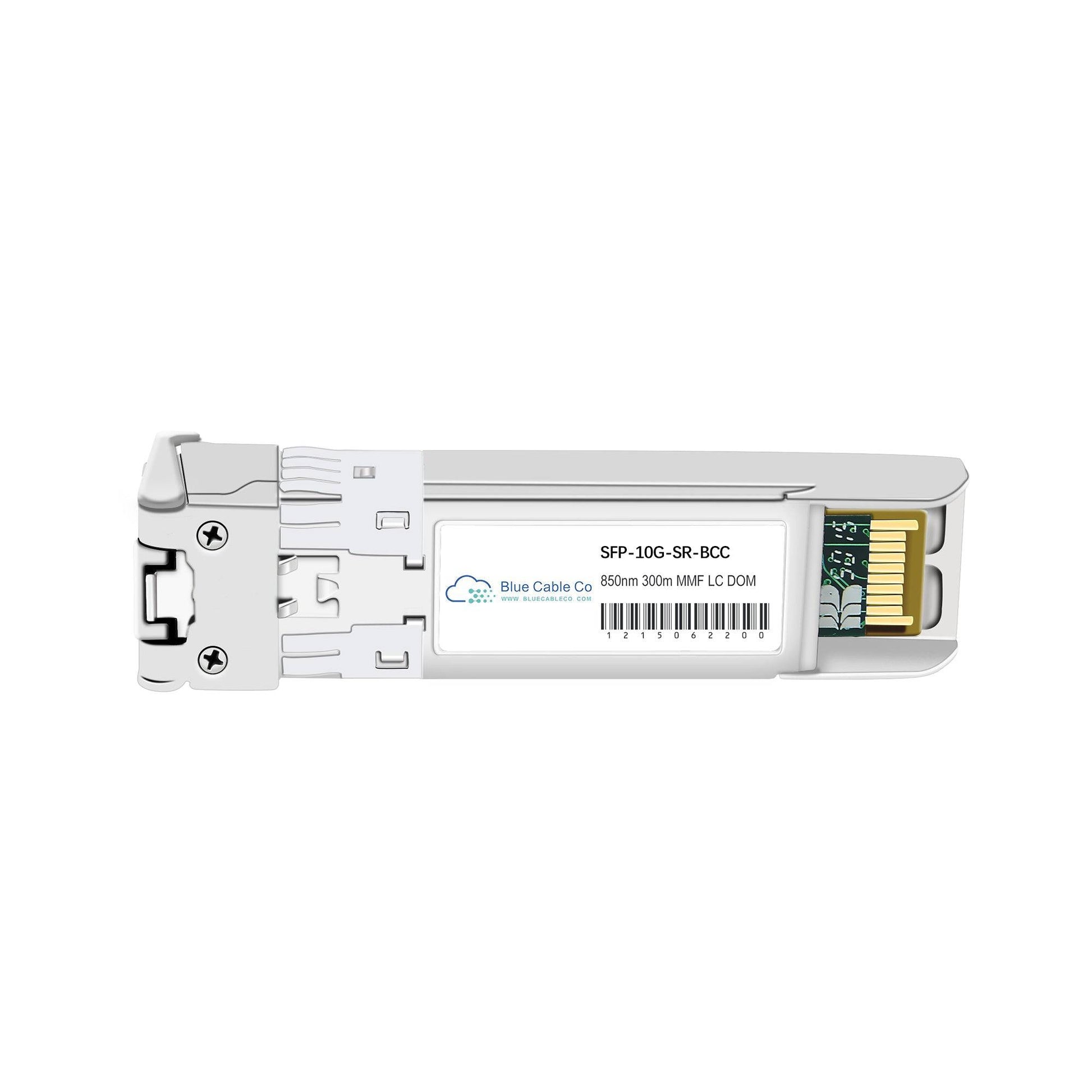

Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
