Moxa WK-UP200A-BOT-SI | UPort 200A Bottom Mount Panel Kit, 2 Plates, 6x M3x5

Authorised Moxa Partner

SKU:WK-UP200A-BOT-SI

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

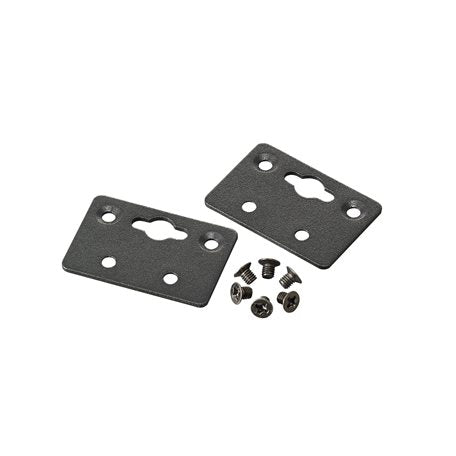

The Moxa WK-UP200A-BOT-SI is a bottom-side panel mount kit for UPort 200A series USB hubs. It includes two metal mounting plates measuring 43 x 30 x 2 mm and six M3x5 screws, giving a secure and tidy way to fix a UPort 204A or 207A hub to a wall or panel.

The low-profile 2 mm plates keep the installation neat in control cabinets, equipment panels and other industrial enclosures. This bottom-mount option is separate from the side-mount kit for the UPort 200A series, so you can choose the orientation that suits your installation.

Features

- Enables bottom-side wall or panel mounting of UPort 200A hubs
- Low profile design with 2 mm plate height
- Includes all screws needed for installation
- Alternative to the side-mount kit for the UPort 200A series

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Compatible with UPort 200A Series (UPort 204A and UPort 207A USB hubs)
- Mounting orientation: bottom side
- 2 x mounting plates, 43 x 30 x 2 mm (1.69 x 1.18 x 0.08 in)
- 6 x M3x5 mm screws
- Plate centre spacing: 163 mm (UPort 207A) / 123 mm (UPort 204A)
- Recommended screw tightening torque: 4.5 kgf-cm +/- 0.5 (type F, PH2)

FAQs

Q: Which Moxa hubs does the WK-UP200A-BOT-SI fit?
A: It is designed for the UPort 200A series, including the UPort 204A and UPort 207A USB hubs.

Q: What is included in the kit?
A: The kit contains two metal mounting plates measuring 43 x 30 x 2 mm and six M3x5 mm screws.

Q: Is this a bottom or side mount kit?
A: It is a bottom-side mount kit. A separate side-mount kit is available for the UPort 200A series if you need a different orientation.

Q: What is the plate spacing for each hub model?
A: The plate centre spacing is 163 mm for the UPort 207A and 123 mm for the UPort 204A.

Q: What screw tightening torque is recommended?
A: The recommended tightening torque is 4.5 kgf-cm +/- 0.5, using a type F, PH2 screwdriver.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
