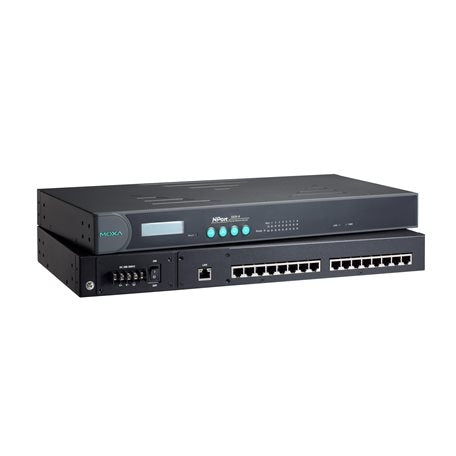

Moxa NPort 5610-16 | 16-Port RS-232 Rackmount Device Server, RJ45

Authorised Moxa Partner

SKU:NPort 5610-16

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5610-16 is a 16-port RS-232 rackmount serial device server that makes serial devices network-ready over a 10/100 Ethernet LAN. It provides sixteen 8-pin RJ45 serial ports, a 100 to 240 VAC universal power input and a 19-inch rackmount metal housing, making it a practical choice for consolidating serial equipment in server rooms, control rooms and industrial cabinets.

Operation modes include Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217 and Pair Connection, with Real COM and Real TTY drivers for Windows, Linux and macOS. An LCD panel and push buttons allow on-device setup, while Web (HTTP/HTTPS) and Telnet consoles, SNMPv1/v2c/v3 and HTTPS (TLS 1.2) support remote management and secure access.

Features

- Makes serial devices network-ready over an IP-based Ethernet LAN
- Real COM and Linux Real TTY drivers, plus fixed TTY drivers for macOS
- Operation modes include TCP Server/Client, UDP, Reverse Telnet, RFC2217 and Pair Connection
- Windows Real COM drivers for Windows 11 down to legacy versions, plus Android API support
- Web (HTTP/HTTPS) and Telnet console configuration
- LCD panel and push buttons for on-device setup
- SNMPv1/v2c/v3 and HTTPS (TLS 1.2) for management and security
- Built-in watchdog timer (WDT) for automatic reboot
- 19-inch rackmount metal housing with built-in 100 to 240 VAC universal power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) Ethernet port (RJ45) with 1.5 kV built-in magnetic isolation
- Baudrate 50 bps to 921.6k bps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input voltage 100 to 240 VAC, 47 to 63 Hz
- Input current 141 mA @ 100 VAC
- Metal housing, 19-inch rack mounting
- Dimensions with ears: 480 x 45.5 x 198.25 mm
- Dimensions without ears: 440 x 45.5 x 198.25 mm
- Weight 2,490 g (5.49 lb)
- Operating temperature 0 to 60 C, storage temperature -20 to 70 C
- Ambient relative humidity 5 to 95% (non-condensing)
- Safety: UL 62368-1; EMI: CISPR 32, FCC Part 15B Class A
- MTBF 680,154 hrs (MIL-HDBK-217F)

FAQs

Q: How many serial ports does the NPort 5610-16 have and what type are they?
A: It has 16 RS-232 serial ports, each using an 8-pin RJ45 connector. Supported signals are TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND.

Q: What network connection does this device server use?
A: It has one 10/100BaseT(X) Ethernet port with an RJ45 connector and 1.5 kV built-in magnetic isolation protection.

Q: How is the NPort 5610-16 powered?
A: It has a built-in 100 to 240 VAC, 47 to 63 Hz universal power input, so no external adapter is needed. Input current is 141 mA at 100 VAC.

Q: Which operating systems and operation modes are supported?
A: Real COM drivers cover Windows 11 down to legacy versions, Real TTY drivers cover Linux, and fixed TTY drivers cover macOS. Android API support is also available. Modes include Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217 and Pair Connection.

Q: How do I configure the device?
A: You can configure it using the Web console (HTTP/HTTPS), the Telnet console or the Windows utility. The front LCD panel and push buttons also allow on-device setup.

Q: Can it be mounted in a standard rack?
A: Yes. It has a 19-inch rackmount metal housing. Dimensions are 480 x 45.5 x 198.25 mm with mounting ears and 440 x 45.5 x 198.25 mm without.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
