Teltonika NTP001000000 | NTP001 Stratum-1 GNSS NTP Time Server, DIN Rail

Name: Teltonika NTP001000000 | NTP001 Stratum-1 GNSS NTP Time Server, DIN Rail
Brand: Teltonika
SKU: NTP001000000
Price: 282.1 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:NTP001000000

In stock:25

$282.10 inc. GST

$256.45 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

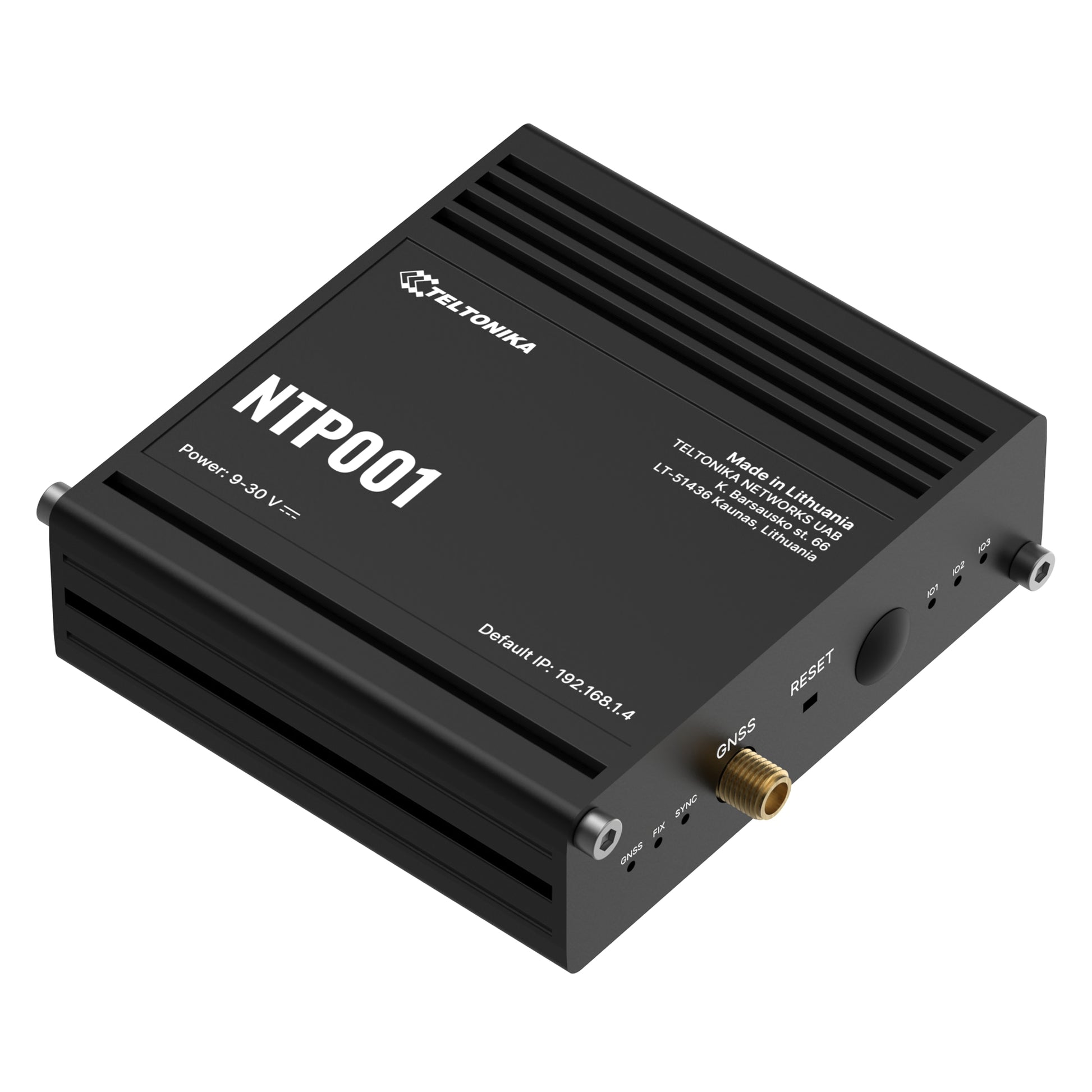

The Teltonika NTP001 is a Stratum-1 GNSS NTP time server that delivers accurate, UTC-traceable time to public and private networks without needing internet access. It supports NTPv4 with GPS, GLONASS, BeiDou, Galileo and QZSS time sources, with Ethernet NTP accuracy of ±1 ms and wire-speed handling of more than 300 NTP requests per second.

Built as a compact DIN-rail industrial unit running RutOS, the NTP001 includes a 10/100 Mbps LAN port, RS232 and RS485 serial interfaces, an analog input and three configurable digital I/Os. It operates from -40 °C to 75 °C on a 9-30 VDC supply, making it suited to industrial, utility and enterprise time synchronisation deployments.

Features

- Synchronises UTC-traceable time without internet access
- Broadcasts time over UDP or serial (RS232/RS485); Daytime protocol TCP/UDP
- NTP authentication (MD5/SHA1); unicast, multicast and broadcast modes
- RutOS (OpenWrt-based) with Web UI, SSH, SNMP v1/v2/v3, JSON-RPC API and MQTT
- Modbus RTU/TCP server/client and Modbus-MQTT gateway
- Security: X.509 certificates, TACACS+, RADIUS, 802.1x client, access control for SSH/Web/CLI, login-attempt blocking
- Connection monitoring: Ping Reboot, Wget Reboot, periodic reboot
- Over-voltage, reverse-polarity and surge protection on the power input

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Stratum-1 NTP server (NTPv4) with GNSS time source (GPS, GLONASS, BeiDou, Galileo, QZSS)
- Ethernet NTP accuracy ±1 ms overall; more than 300 NTP requests per second (wire speed)
- GNSS acquisition sensitivity -146 dBm; reacquisition and tracking sensitivity -157 dBm
- 1 x 10/100 Mbps LAN port (IEEE 802.3, 802.3u, 802.3az, auto MDI/MDIX)
- RS232 (TX, RX, RTS, CTS) and RS485 (D+, D-, R+, R-) via 16-pin terminal block
- 1 analog input and 3 configurable digital I/Os
- 1 x SMA antenna connector for GNSS
- Power input 9-30 VDC via 2-pin terminal block; idle approx. 2 W, max 3.5 W
- Operating temperature -40 °C to 75 °C; humidity 10-90% non-condensing
- IP30 rating; DIN rail or wall mounting
- Dimensions 82.6 x 25 x 83 mm; weight 180 g
- CPU Mediatek 580 MHz MIPS 24KEc; 128 MB DDR2 RAM; 16 MB NOR flash
- Certifications: CE, UKCA, CB, UCRF, EAC, WEEE

FAQs

Q: Does the NTP001 need an internet connection to provide accurate time?
A: No. It is a Stratum-1 server that takes UTC-traceable time directly from GNSS satellites, so it can serve accurate time to isolated or private networks.

Q: Which GNSS systems does the NTP001 support?
A: It supports GPS, GLONASS, BeiDou, Galileo and QZSS as time sources, connected via a single SMA antenna connector.

Q: How is the NTP001 powered and mounted?
A: It runs from a 9-30 VDC supply through a 2-pin terminal block and mounts on a DIN rail or a wall. It has an IP30 rating and draws a maximum of 3.5 W.

Q: Can it distribute time over serial as well as Ethernet?
A: Yes. It can broadcast time over UDP or serial (RS232/RS485) and also supports the Daytime protocol over TCP/UDP.

Q: What management and security options are available?
A: It runs RutOS with a Web UI, SSH, SNMP v1/v2/v3, JSON-RPC API and MQTT. NTP authentication (MD5/SHA1), X.509 certificates, TACACS+, RADIUS and 802.1x client support are included.

Q: What operating temperature range does the NTP001 support?
A: It operates from -40 °C to 75 °C at 10-90% non-condensing humidity, suitable for industrial environments.
