Moxa NPort S9650I-16-2HV-MSC-T | NPort S9650I 16-Port RS-232/422/485 Serial Server, 2x MM SC Fibre, HV

Authorised Moxa Partner

SKU:NPort S9650I-16-2HV-MSC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

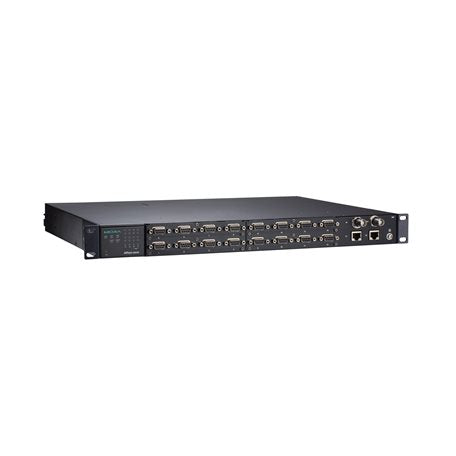

The NPort S9650I-16-2HV-MSC-T is a rugged 16-port RS-232/422/485 serial device server with a built-in managed Ethernet switch, designed for power substation and other harsh industrial deployments. It provides 2 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode SC fibre ports, takes a high-voltage 88-300 VDC / 85-264 VAC dual power input, and operates from -40 to 85°C in a 19-inch rack-mount metal chassis.

Serial ports support Real COM, RFC2217, TCP Client/Server, UDP, Modbus and DNP3 modes, with 2 kV isolation and 4 kV surge protection on the serial side. Hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation, Turbo Ring and RSTP redundancy, and IEC 61850-3 and IEEE 1613 compliance make it well suited to utility and critical infrastructure networks.

Features

- Combines a managed Ethernet switch and a 16-port serial device server in one unit
- Hardware-based IEEE 1588v2 PTP time synchronisation and IRIG-B support
- Turbo Ring v1/v2, Turbo Chain and RSTP network redundancy
- Dual power inputs with reverse polarity protection
- Modbus TCP and DNP3 protocol support
- Built-in watchdog timer, buzzer and RTC
- Security features including HTTPS/SSL, SSH, RADIUS and TACACS+
- Compliant with IEC 61850-3 and IEEE 1613 for power substations
- 2 kV serial isolation and 4 kV surge protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (DB9 male)
- 2 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX multi-mode SC fibre ports
- Baudrate 50 bps to 921.6 kbps
- 2 kV serial isolation, 4 kV serial surge protection
- Dual power inputs, 88-300 VDC / 85-264 VAC
- Operating temperature -40 to 85°C
- 19-inch rack mount, metal housing
- Dimensions 457 x 32 x 330 mm
- Weight 5.15 kg
- IEC 61850-3 and IEEE 1613 compliant
- MTBF 156,949 hrs (Telcordia SR332)

FAQs

Q: What fibre connection does this model use?
A: It has 2 x 100BaseFX multi-mode SC fibre ports, alongside 2 x 10/100BaseT(X) RJ45 copper ports.

Q: What power input does the HV variant accept?
A: It accepts 88-300 VDC or 85-264 VAC across dual power inputs, with reverse polarity protection.

Q: Which serial interfaces are supported?
A: All 16 DB9 male ports support RS-232, RS-422 and RS-485, with ADDC for RS-485 data direction control.

Q: Is it suitable for power substation use?
A: Yes. It complies with IEC 61850-3 and IEEE 1613, and supports hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation.

Q: What operating modes can the serial ports run in?
A: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3 and DNP3 Raw Socket modes are supported.

Q: What redundancy options are available?
A: The built-in switch supports RSTP, Turbo Ring v1/v2 and Turbo Chain for network redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
