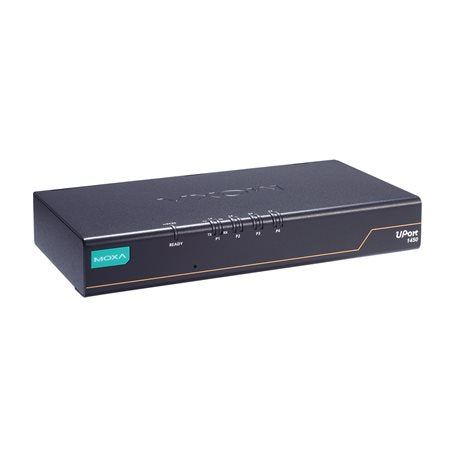

Moxa UPort 1450-G2-T | UPort 1400-G2 4-Port RS-232/422/485 USB Converter, -40 to 75°C

Authorised Moxa Partner

SKU:UPort 1450-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1450-G2-T is an industrial 4-port RS-232/422/485 USB-to-serial converter with a USB 3.2 Gen 1 interface and a wide -40 to 75°C operating temperature range. This is the non-isolated, wide-temperature model of the UPort 1400-G2 series, housed in a rugged metal enclosure with DB9 male serial connectors.

Each serial port is individually software-selectable between RS-232, RS-422 and RS-485, supports baudrates from 50 bps to 921.6 kbps and includes a 512-byte FIFO. The unit can be powered from the USB bus or an external 12 to 48 VDC adaptor, and drivers are available for Windows, Linux, macOS and Android, including Arm-based platforms.

Features

- USB 3.2 Gen 1 interface (5 Gbps), backward compatible with USB 2.0/1.1
- Four serial ports individually software-selectable for RS-232, RS-422 or RS-485
- Automatic data direction control (ADDC) for RS-485
- Wide operating temperature range of -40 to 75°C
- Rugged metal housing for industrial use
- Drivers for Windows, Linux, macOS and Android, plus virtual machine and Arm-based platform support
- Powered from the USB bus or an external 12 to 48 VDC adaptor
- 0.5 kV serial surge protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x USB Type B (USB 3.2 Gen 1, backward compatible with USB 2.0/1.1)
- 4 x RS-232/422/485 serial ports, DB9 male
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- 512-byte FIFO
- Parity: None, Even, Odd, Space, Mark
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Flow control: RTS/CTS, XON/XOFF
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms
- RS-485 terminator: 120 ohms
- Serial surge protection: 0.5 kV
- Isolation: none (non-isolated model)
- Power input: 5 VDC USB bus power or 12 to 48 VDC external adaptor
- Input current: 266 mA @ USB 2.0, 452 mA @ USB 3.2, 240 mA @ 12 VDC
- Housing: metal, IP20
- Dimensions: 185 x 30 x 90.6 mm
- Weight: 373 g
- Operating temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 1,431,860 hrs (Telcordia SR332)

FAQs

Q: Is the UPort 1450-G2-T isolated?
A: No. The UPort 1450-G2-T is the non-isolated model. 2 kV isolation is only available on the I models of the UPort 1400-G2 series.

Q: Which serial interfaces does each port support?
A: Each of the four DB9 male ports is software-selectable for RS-232, RS-422, RS-485 2-wire or RS-485 4-wire, with automatic data direction control for RS-485.

Q: Can it be used with a USB 2.0 port?
A: Yes. The converter uses USB 3.2 Gen 1 and is backward compatible with USB 2.0 and USB 1.1, though maximum USB throughput is lower on older ports.

Q: How is the UPort 1450-G2-T powered?
A: It can be powered from the 5 VDC USB bus or from an external 12 to 48 VDC power adaptor.

Q: Which operating systems are supported?
A: Drivers are available for Windows 11, 10, 8.1, 8 and 7, Windows Server 2008 R2 through 2022, Linux kernel 4.x to 6.x, macOS 10.1x to 13, Android 3.1.x and later, and Arm-based Linux platforms.

Q: What is the operating temperature range?
A: The UPort 1450-G2-T operates from -40 to 75°C, making it suitable for harsh industrial environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
