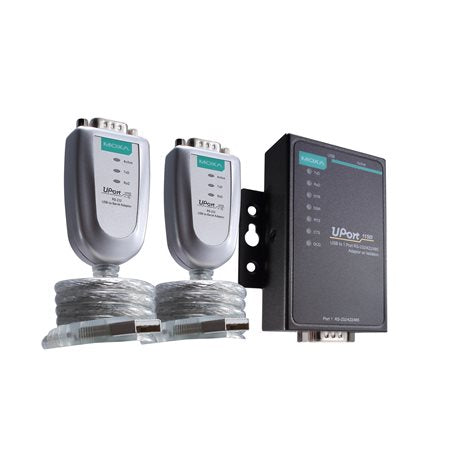

Moxa UPort-1150I | UPort 1150I USB-to-Serial Converter, RS-232/422/485, 2kV

Authorised Moxa Partner

SKU:UPort 1150I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1150I is a 1-port RS-232/422/485 USB-to-serial converter with 2 kV isolation protection. It adds a software-selectable DB9 serial port to laptops and workstations that no longer have one, making it well suited to connecting instrumentation, controllers and point-of-sale equipment over USB.

Supporting up to 921.6 kbps, the converter uses a Hi-Speed USB 2.0 interface and a metal housing. LEDs show USB and TxD/RxD activity, and an included mini-DB9-female-to-terminal-block adapter simplifies wiring. Drivers are provided for Windows, macOS, Linux and WinCE.

Features

- Hi-Speed USB 2.0 interface for fast USB data transmission
- 921.6 kbps maximum baudrate for fast serial data transmission
- 2 kV isolation protection for the serial port
- Drivers provided for Windows, macOS, Linux and WinCE
- Mini-DB9-female-to-terminal-block adapter for easy wiring
- LEDs indicate USB and TxD/RxD activity
- Metal housing for durability

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 male
- USB 2.0 Hi-Speed interface, USB Type B connector
- USB 1.0/1.1 compliant, USB 2.0 compatible
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Isolation: 2 kV
- Input voltage: 5 VDC, input current 260 mA
- Metal housing
- Dimensions: 52 x 80 x 22 mm
- Mini-DB9-female-to-terminal-block adapter included

FAQs

Q: Which serial standards does the UPort 1150I support?
A: It provides a single DB9 male serial port that supports RS-232, RS-422 and RS-485.

Q: What operating systems have drivers available?
A: Drivers are provided for Windows, macOS, Linux and WinCE.

Q: What does the 2 kV isolation do?
A: The 2 kV isolation protection helps guard the host computer and connected equipment against electrical interference and surges on the serial side.

Q: What is the maximum baudrate?
A: The converter supports baudrates from 50 bps up to 921.6 kbps.

Q: Does it include an adapter for terminal block wiring?
A: Yes, a mini-DB9-female-to-terminal-block adapter is included to simplify wiring.

Q: What USB connector does the UPort 1150I use?
A: The UPort 1150I uses a USB Type B connector.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
