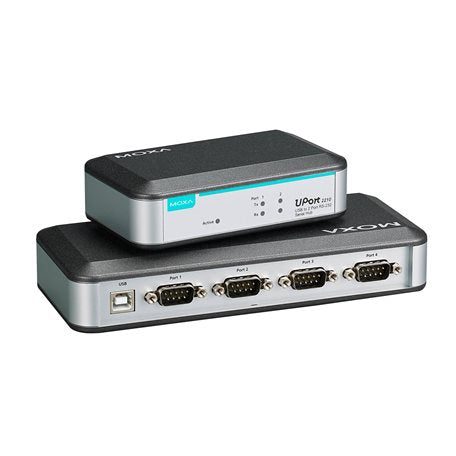

Moxa UPort 2210 | USB-to-Serial Converter, 2-Port RS-232, DB9

Authorised Moxa Partner

SKU:UPort 2210

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 2210 is a 2-port RS-232 USB-to-serial converter that adds two DB9 male serial ports to a computer through a single USB Type-B connection. It is suited to connecting industrial equipment, PLCs, sensors, point-of-sale devices and legacy serial peripherals to modern PCs and laptops that no longer include native serial ports.

The converter supports baudrates from 50 bps to 921.6 kbps with full RS-232 modem control signals, and is powered directly from the USB port, so no external power supply is required. Drivers are available for Windows, Linux (including Arm-based platforms) and macOS, with support for VMware Fusion and Parallels Desktop virtual machines. It is part of the UPort 2210/2410 series and is built in a compact polycarbonate housing.

Features

- Adds 2 RS-232 serial ports to a computer over a single USB port
- Hi-Speed USB 2.0 (480 Mbps) interface
- Drivers for Windows, Linux and macOS, including Arm-based Linux platforms
- Supports VMware Fusion and Parallels Desktop virtual machines
- Full RS-232 modem control signals for reliable device communication
- Powered over USB, no external power supply needed
- Compact polycarbonate housing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232 serial ports, DB9 male
- USB 1.1/2.0 (12/480 Mbps), USB Type-B connector
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input: 5 VDC, 140 mA (USB powered)
- Housing: Polycarbonate (PC)
- Dimensions: 70 x 35 x 120 mm
- Weight: 120 g
- Operating temperature: 0 to 55 °C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Safety: UL 60950-1
- EMC: EN 55032/24
- MTBF: 4,221,778 hrs

FAQs

Q: How many serial ports does the UPort 2210 provide?
A: It provides two RS-232 serial ports with DB9 male connectors, connected to the host computer through a single USB Type-B port.

Q: Does the UPort 2210 need an external power supply?
A: No. It is powered from the USB port, drawing 140 mA at 5 VDC.

Q: Which operating systems are supported?
A: Drivers are available for Windows (including Windows 10 and Server editions), Linux kernel 2.6.x to 5.x including Arm-based platforms, and macOS 10.12 to 11.x.

Q: Can it be used with virtual machines?
A: Yes. It supports VMware Fusion and Parallels Desktop, allowing Windows virtual machines on macOS to access the serial ports.

Q: What baudrates and RS-232 signals does it support?
A: Baudrates range from 50 bps to 921.6 kbps, and the ports carry TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals.

Q: How does the UPort 2210 differ from the UPort 2410?
A: The UPort 2210 provides 2 RS-232 ports, while the UPort 2410 in the same series offers 4 ports for applications needing more serial connections.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
