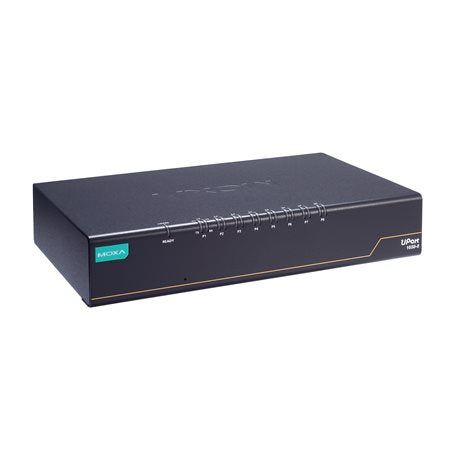

Moxa UPort 1650I-8-G2 | USB to 8-Port RS-232/422/485, 2 kV Isolation

Authorised Moxa Partner

SKU:UPort 1650I-8-G2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1650I-8-G2 is an 8-port USB 3.2 Gen 1 to RS-232/422/485 serial converter with 2 kV isolation between the serial ports and the host computer. It suits industrial, instrumentation and point-of-sale deployments that need reliable connectivity to legacy serial devices, and it operates across a 0 to 60°C temperature range.

Each port provides DB9 male connectivity with software-selectable RS-232, RS-422 or RS-485 modes, a 512-byte on-chip FIFO and hardware or software flow control. Drivers are provided for a broad selection of operating systems including Windows and Linux, and corner LEDs show power, TX and RX status at a glance.

Features

- USB 3.2 SuperSpeed capability for fast multi-port serial throughput
- 2 kV isolation protection between the UPort and the host computer
- 512-byte on-chip FIFO and flow control for enhanced performance
- Drivers provided for a broad selection of operating systems, including Windows and Linux
- Double-sided corner LEDs show power, TX and RX status
- Latching USB cable design for a firmer connection
- Compatible with legacy serial devices for instrumentation and point-of-sale applications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- USB 3.2 Gen 1 (5 Gbps), USB 1.1/2.0 compliant (480/12 Mbps)
- 1 x USB Type-B upstream port
- 8 x RS-232/422/485 serial ports, DB9 male connectors
- 2 kV serial isolation protection
- Baudrate 50 bps to 921.6 kbps, non-standard baudrates supported
- 512-byte on-chip FIFO
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity None, Even, Odd, Space, Mark
- Flow control RTS/CTS, XON/XOFF
- RS-485 Automatic Data Direction Control (ADDC)
- RS-485 pull high/low resistor 1 kΩ / 150 kΩ
- Input voltage 12 to 48 VDC via external power adaptor
- Operating temperature 0 to 60°C (32 to 140°F)
- Storage temperature -40 to 75°C, humidity 5 to 95% non-condensing

FAQs

Q: What serial interfaces does the UPort 1650I-8-G2 support?
A: It provides 8 DB9 male serial ports, each supporting RS-232, RS-422 and RS-485 operation.

Q: What does the 'I' in the model name mean?
A: The 'I' denotes 2 kV isolation protection between the serial ports and the host computer, helping protect equipment from surges and ground loops.

Q: Does it need external power?
A: Yes. It operates from an external power adaptor with an input range of 12 to 48 VDC.

Q: Which operating systems are supported?
A: Moxa provides drivers for a broad selection of operating systems, including Windows and Linux.

Q: What is the operating temperature range?
A: The converter operates from 0 to 60°C (32 to 140°F).

Q: Is it compatible with USB 2.0 ports?
A: Yes. It is USB 3.2 Gen 1 (5 Gbps) and also compliant with USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
