Moxa UPort 1650I-8-G2-T | USB to 8-Port RS-232/422/485, 2 kV, -40 to 75C

Authorised Moxa Partner

SKU:UPort 1650I-8-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

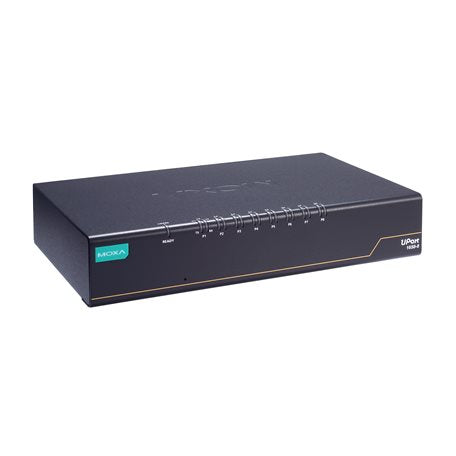

The Moxa UPort 1650I-8-G2-T is an industrial USB to 8-port RS-232/422/485 serial converter with 2 kV isolation protection and a wide -40 to 75°C operating temperature range. It connects up to eight serial devices to a host over a single SuperSpeed USB 3.2 Gen 1 link (backward compatible with USB 2.0/1.1), making it well suited to factory automation, remote monitoring and other harsh-environment deployments.

Each DB9 male port is software-selectable between RS-232, RS-422 and RS-485, supports bitrates from 50 bps to 921.6 kbps, and has a 512-byte FIFO. The metal housing is powered by an external 12 to 48 VDC adaptor, and drivers are available for Windows, Linux, macOS, Android and Arm-based platforms.

Features

- SuperSpeed USB 3.2 Gen 1 interface, backward compatible with USB 2.0/1.1
- Eight serial ports software-selectable for RS-232, RS-422 or RS-485
- 2 kV isolation protection on the serial ports
- Wide -40 to 75°C operating temperature for harsh environments
- Automatic Data Direction Control (ADDC) for RS-485
- Drivers for Windows, Linux, macOS, Android and Arm-based platforms
- Rugged metal housing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- USB to 8 x RS-232/422/485 serial ports (DB9 male)
- USB 3.2 Gen 1 (USB 1.1/2.0 compliant), USB Type B connector
- USB speeds: 5 Gbps, 480 Mbps, 12 Mbps
- 2 kV isolation, 0.5 kV surge
- Bitrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- 512-byte FIFO
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, XON/XOFF
- RS-485 ADDC, 120 ohm terminator, 1 kilo-ohm and 150 kilo-ohm pull high/low resistors
- Input: 12 to 48 VDC external power adaptor, 530 mA @ 12 VDC
- Metal housing, IP20
- Dimensions: 216 x 41.5 x 121.6 mm, weight 678 g
- Operating and storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Certifications: CISPR 32, FCC Part 15B Class A, EN 55032/35, IEC/EN/UL 62368-1, KC, RoHS, CRoHS, WEEE
- MTBF: 782,795 hrs (Telcordia SR332 Issue 2)

FAQs

Q: Which serial interfaces does the UPort 1650I-8-G2-T support?
A: Each of the eight DB9 male ports is software-selectable for RS-232, RS-422, RS-485 2-wire or RS-485 4-wire.

Q: Is it compatible with older USB ports?
A: Yes. It uses a USB 3.2 Gen 1 interface and is backward compatible with USB 2.0 and USB 1.1 hosts, with speed limited to the host port.

Q: What does the 2 kV isolation provide?
A: It provides 2 kV isolation protection on the serial ports, helping protect the host computer and connected equipment from ground loops and electrical interference in industrial settings.

Q: What operating systems are supported?
A: Drivers are available for Windows (including Windows 11 and 10), Linux kernel 4.x, 5.x and 6.x, macOS, Android 3.1.x and later, and Arm-based platforms running Linux.

Q: How is the unit powered?
A: It is powered by an external power adaptor accepting 12 to 48 VDC, drawing 530 mA at 12 VDC.

Q: What temperature range can it operate in?
A: The -T model operates from -40 to 75°C, suitable for outdoor cabinets, factory floors and other harsh environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
