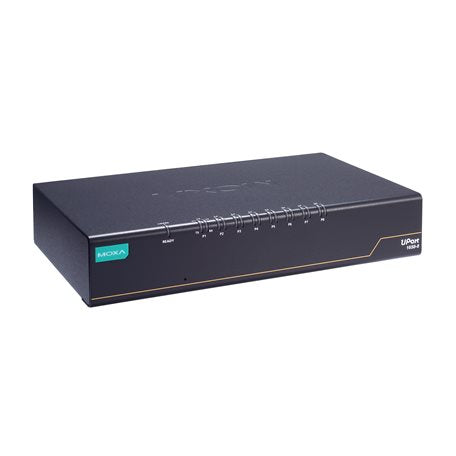

Moxa UPort 1650-8-G2 | USB to 8-Port RS-232/422/485 Converter

Authorised Moxa Partner

SKU:UPort 1650-8-G2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The UPort 1650-8-G2 is an industrial USB to 8-port serial converter that connects eight RS-232/422/485 DB9 devices to a single USB host port. This non-isolated model has software-selectable serial modes on every port, a SuperSpeed USB 3.2 Gen 1 interface and a metal IP20 housing rated for 0 to 60°C operation.

Each port supports baudrates from 50 bps to 921.6 kbps with a 512-byte FIFO, and RS-485 operation includes automatic data direction control with built-in terminator and pull high/low resistors. It can be powered from the USB bus or an external 12-48 VDC adapter, with drivers available for Windows, Linux, macOS and Android.

Features

- SuperSpeed USB 3.2 Gen 1 interface for fast host connectivity
- Up to 921.6 kbps baudrate on all 8 ports
- 512-byte FIFO per port for high-throughput serial transfers
- Automatic Data Direction Control (ADDC) for RS-485
- Built-in 120-ohm terminator and 1 kilo-ohm/150 kilo-ohm pull high/low resistors for RS-485
- Dual power input: USB bus power or external 12-48 VDC adapter
- Latching USB cable design with corner LEDs for TX/RX/PWR status
- Drivers for Windows, Linux, macOS and Android, including ARM-based Linux platforms and VMware/Parallels virtual machines

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x DB9 male serial ports, RS-232/422/485 software-selectable
- USB 3.2 Gen 1 SuperSpeed interface, backward compatible with USB 2.0/1.1
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- FIFO: 512 bytes per port
- Parity: None, Even, Odd, Space, Mark
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Flow control: RTS/CTS, XON/XOFF
- RS-485 data direction control: ADDC
- RS-485 pull high/low resistors: 1 kilo-ohm, 150 kilo-ohms
- RS-485 terminator: 120 ohms
- Surge protection: 0.5 kV
- Power input: 5 VDC USB bus power or 12 to 48 VDC external adapter
- Input current: 466 mA @ USB 2.0, 652 mA @ USB 3.2, 350 mA @ 12 VDC
- Housing: metal, IP20
- Dimensions: 216 x 41.5 x 121.6 mm
- Weight: 670 g
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- MTBF: 951,145 hrs (Telcordia SR332)
- Safety: IEC 62368-1, EN 62368-1, UL 62368-1 (CB), KC
- EMC/EMI: EN 55032/35, CISPR 32, FCC Part 15B Class A
- Green product: RoHS, CRoHS, WEEE

FAQs

Q: Which serial standards does the UPort 1650-8-G2 support?
A: All eight DB9 male ports support RS-232, RS-422 and RS-485 (2-wire and 4-wire), selectable in software.

Q: Does this model provide electrical isolation?
A: No. This is the non-isolated version. It offers 0.5 kV surge protection but not the 2 kV isolation found on the isolated models.

Q: How is the converter powered?
A: It can run from the 5 VDC USB bus or from an external 12 to 48 VDC power adapter.

Q: What operating systems are supported?
A: Drivers are available for Windows 11, 10, 8.1, 8 and 7, Windows Server 2022 to 2008 R2, Linux kernels 4.x to 6.x, macOS 10.1x to 13, and Android 3.1.x and later.

Q: What is the maximum baudrate?
A: Each port supports baudrates from 50 bps up to 921.6 kbps, including non-standard baudrates.

Q: What is the operating temperature range?
A: This standard temperature model operates from 0 to 60°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
