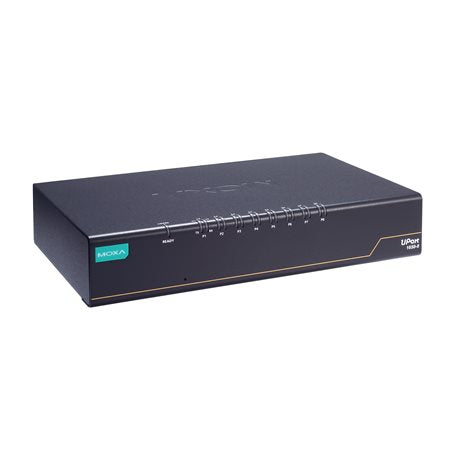

Moxa UPort 1650-8-G2-T | 8-Port USB to Serial Converter, RS-232/422/485, -40 to 75C

Authorised Moxa Partner

SKU:UPort 1650-8-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1650-8-G2-T is an industrial 8-port USB to serial converter that connects up to eight RS-232/422/485 serial devices to a computer through a single USB 3.2 Gen 1 port. Built in a rugged metal housing with a wide -40 to 75°C operating temperature range, it suits factory floors, outdoor cabinets and other harsh environments. This non-isolated model delivers 8 software-selectable serial ports on DB9 male connectors.

Each port supports baudrates from 50 bps to 921.6 kbps with a 512-byte FIFO, and RS-485 operation uses Automatic Data Direction Control (ADDC). The converter can be powered from the USB bus or from a 12 to 48 VDC external adaptor, and drivers are available for Windows, Linux, macOS and the Android API, including virtual machine and Arm-based Linux platforms.

Features

- SuperSpeed USB 3.2 Gen 1 with USB 2.0 backward compatibility
- 8 serial ports software-selectable for RS-232, RS-422, 2-wire RS-485 or 4-wire RS-485
- Automatic Data Direction Control (ADDC) for RS-485
- 512-byte FIFO for high-performance serial throughput
- Wide -40 to 75°C operating temperature for harsh environments
- Rugged metal housing
- Drivers for Windows, Linux and macOS, plus Android API support
- Supports virtual machines (VMware, Parallels) and Arm-based Linux platforms
- Powered by USB bus or 12 to 48 VDC external adaptor

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports, DB9 male
- USB 3.2 Gen 1 (5 Gbps), USB 2.0/1.1 compatible, USB Type B
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- FIFO: 512 bytes
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, XON/XOFF
- RS-485 data direction control: ADDC
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms; terminator: 120 ohms
- Serial surge protection: 0.5 kV
- Power input: 5 VDC USB bus power or 12 to 48 VDC external adaptor
- Input current: 466 mA @ USB 2.0, 652 mA @ USB 3.2, 350 mA @ 12 VDC
- Housing: metal, IP20
- Dimensions: 216 x 41.5 x 121.6 mm
- Weight: 670 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Certifications: CISPR 32, FCC Part 15B Class A, EN 55032/35, IEC 62368-1, UL 62368-1, KC, RoHS, CRoHS, WEEE
- MTBF: 951,145 hrs (Telcordia SR332)

FAQs

Q: Which serial interfaces does the UPort 1650-8-G2-T support?
A: All 8 ports are software-selectable between RS-232, RS-422, and 2-wire or 4-wire RS-485, so a mix of device types can be connected through one converter.

Q: Does this model provide electrical isolation?
A: No. The UPort 1650-8-G2-T is the non-isolated version, with 0.5 kV serial surge protection per port.

Q: What operating systems are supported?
A: Drivers are available for Windows 11, 10, 8.1, 8, 7, Vista and XP, Windows Server versions, Linux kernel 4.x, 5.x and 6.x, and macOS, with Android API support for Android 3.1.x and later.

Q: How is the converter powered?
A: It can run from 5 VDC USB bus power or from a 12 to 48 VDC external power adaptor.

Q: What temperature range can it operate in?
A: The operating range is -40 to 75°C, making it suitable for unconditioned cabinets, outdoor enclosures and industrial sites.

Q: What connectors does it use?
A: The host connection is USB Type B and each of the 8 serial ports uses a DB9 male connector.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
