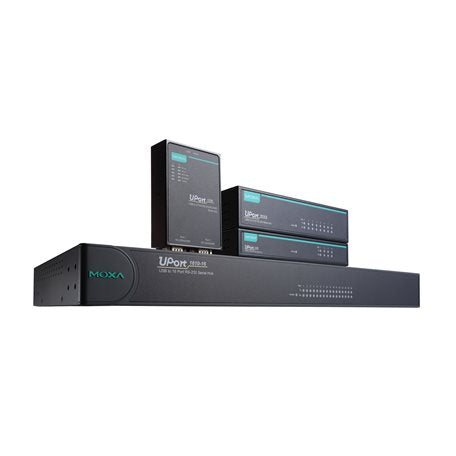

Moxa UPort 1650-16 | USB to 16-Port RS-232/422/485 Serial Hub

Authorised Moxa Partner

SKU:UPort 1650-16

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The UPort 1650-16 is a USB 2.0 Hi-Speed to 16-port RS-232/422/485 serial hub that connects up to 16 serial devices to a single USB port on a PC or server. Each port uses a DB9 male connector and supports baudrates from 50 bps up to 921.6 kbps, making it well suited to industrial automation, data acquisition, POS and network equipment console management.

The metal housing includes a built-in 100 to 240 VAC power input and a USB Type B upstream connector, and the unit is compatible with USB 1.1 and USB 2.0 hosts. Drivers are available for Windows, Linux, macOS and Android, with support for virtual machine environments (VMware, Parallels) and Arm-based Linux platforms.

Features

- Connects up to 16 serial devices over a single USB port
- Hi-Speed USB 2.0 interface (480 Mbps)
- Software-selectable RS-232/422/485 on each DB9 male port
- Baudrates up to 921.6 kbps
- Drivers for Windows, Linux, macOS and Android, plus virtual machine and Arm-based platform support
- Metal housing with built-in 100 to 240 VAC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- USB to 16-port RS-232/422/485 serial hub
- USB 1.1/2.0 compliant, 12 Mbps / 480 Mbps, USB Type B connector
- 16 x DB9 male serial ports
- Baudrate: 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Input voltage: 100 to 240 VAC, 220 mA @ 100 VAC
- Metal housing, 440 x 45.5 x 198.1 mm, 3,485 g
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -20 to 75°C (-4 to 167°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 120,001 hrs (MIL-HDBK-217F)
- Approvals: FCC Part 15B Class A, CISPR 32, UL 60950-1, RoHS, CRoHS, WEEE

FAQs

Q: How many serial devices can the UPort 1650-16 connect?
A: It provides 16 DB9 male serial ports, so up to 16 RS-232/422/485 devices can be connected through a single USB connection to the host.

Q: Which serial interfaces does each port support?
A: Each DB9 male port supports RS-232, RS-422, RS-485 2-wire and RS-485 4-wire, with baudrates from 50 bps to 921.6 kbps.

Q: Which operating systems are supported?
A: Drivers are available for Windows (including Windows 11/10 and Windows Server), Linux kernels 2.4.x to 6.x, macOS 10.12 to 11.x and Android 3.1.x and later. VMware and Parallels virtual machines and Arm-based Linux platforms are also supported.

Q: Does it need an external power adapter?
A: No. The unit has a built-in 100 to 240 VAC power input, so it connects directly to mains power and to the host via a USB Type B cable.

Q: Is it compatible with USB 1.1 hosts?
A: Yes. It is USB 1.1/2.0 compliant and operates at 12 Mbps on USB 1.1 and up to 480 Mbps on USB 2.0 Hi-Speed ports.

Q: What is the operating temperature range?
A: The UPort 1650-16 operates from 0 to 55°C (32 to 131°F), so it is intended for indoor or cabinet installation rather than wide-temperature environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
