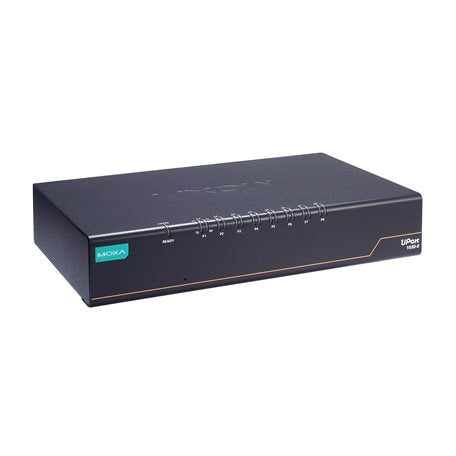

Moxa UPort 1610-8-G2 | USB to 8-Port RS-232 Serial Converter

Authorised Moxa Partner

SKU:UPort 1610-8-G2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1610-8-G2 is an industrial USB to 8-port RS-232 serial converter that lets a computer connect up to eight legacy serial devices through a single USB 3.2 Gen 1 port. This RS-232 only, non-isolated model uses DB9 male connectors, supports baudrates from 50 bps to 921.6 kbps and operates from 0 to 60°C, making it well suited to control rooms, test benches and industrial edge connectivity deployments.

A 512-byte FIFO and flow control help maintain reliable data transfer across all eight ports, and nonstandard baudrates are supported for specialised equipment. Drivers are provided for a broad selection of operating systems, including Windows and Linux, and the unit is USB 1.1/2.0 compliant for use with older host systems.

Features

- USB 3.2 SuperSpeed capability for fast host connectivity
- Connects eight RS-232 serial devices through one USB port
- 512-byte on-chip FIFO and flow control for enhanced performance
- Supports nonstandard baudrates
- Drivers provided for a broad selection of operating systems including Windows and Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interface: USB 3.2 Gen 1 (SuperSpeed), USB 1.1/2.0 compliant
- USB speeds: 5 Gbps, 480 Mbps, 12 Mbps
- Upstream port: 1 x USB (UFP)
- Serial ports: 8 x RS-232, DB9 male
- FIFO: 512 bytes
- Baudrate: 50 bps to 921.6 kbps, nonstandard baudrates supported
- Operating temperature: 0 to 60°C
- Input current: 308 mA @ USB 2.0, 495 mA @ USB 3.2, 260 mA @ 12 VDC
- Weight: 650 g (1.43 lb)
- Ingress rating: IP20
- MTBF: 1,431,860 hrs (Telcordia SR332)

FAQs

Q: How many serial devices can the UPort 1610-8-G2 connect?
A: It provides 8 x RS-232 serial ports with DB9 male connectors, so up to eight serial devices can be connected through a single USB port.

Q: Does this model support RS-422 or RS-485?
A: No. The UPort 1610-8-G2 is an RS-232 only model and does not provide RS-422 or RS-485 interfaces.

Q: Does it provide serial port isolation?
A: No. This variant does not include isolation protection.

Q: What operating temperature range is supported?
A: The converter is rated for 0 to 60°C operation.

Q: Which operating systems are supported?
A: Drivers are provided for a broad selection of operating systems, including Windows and Linux.

Q: Is it compatible with older USB ports?
A: Yes. It is USB 3.2 Gen 1 capable and also USB 1.1/2.0 compliant, though maximum throughput depends on the host port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
