Moxa UPort 1610-16 | USB to 16-Port RS-232 Serial Hub, DB9

Authorised Moxa Partner

SKU:UPort 1610-16

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

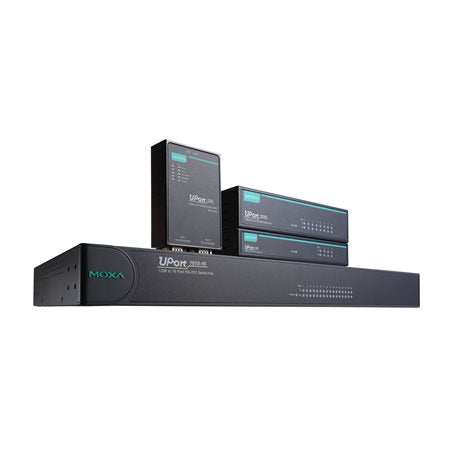

The Moxa UPort 1610-16 is a USB to 16-port RS-232 serial hub that connects up to 16 serial devices to a single computer USB port through DB9 male connectors. It uses a Hi-Speed USB 2.0 interface (480 Mbps) and supports serial baudrates from 50 bps to 921.6 kbps, making it well suited to industrial automation, data acquisition and equipment management applications.

Housed in a 1U rack-mountable metal chassis with a wide-range 100 to 240 VAC power input, the UPort 1610-16 is built for industrial and server room use. Drivers are available for Windows, Linux and macOS, with Android API support and virtual machine compatibility for flexible deployment.

Features

- Connects up to 16 serial devices over a single USB port
- Hi-Speed USB 2.0 interface (480 Mbps)
- Serial baudrate up to 921.6 kbps
- Drivers for Windows, Linux and macOS, plus Android API support
- Virtual machine support including VMware and Parallels
- Metal housing for industrial use
- Wide-range 100 to 240 VAC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- USB to 16-port RS-232 serial hub
- USB 1.1/2.0 compliant (12 Mbps / 480 Mbps), USB Type B connector
- 16 x DB9 male serial ports
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Input voltage: 100 to 240 VAC, 220 mA @ 100 VAC
- Metal housing, 440 x 45.5 x 198.1 mm, 2,475 g
- Operating temperature: 0 to 55°C
- Storage temperature: -20 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMI: CISPR 32, FCC Part 15B Class A; safety: UL 60950-1
- RoHS, CRoHS and WEEE compliant
- MTBF: 138,704 hrs (MIL-HDBK-217F)

FAQs

Q: How many serial devices can the UPort 1610-16 connect?
A: It provides 16 RS-232 serial ports on DB9 male connectors, all driven from a single USB port on the host computer.

Q: Which operating systems are supported?
A: Drivers are available for Windows (including Windows 11/10 and Windows Server editions), Linux kernels 2.4.x to 6.x, and macOS 10.12 to 13. Android API support is also provided for Android 3.1.x and later.

Q: What is the maximum serial speed?
A: Each port supports baudrates from 50 bps up to 921.6 kbps, with selectable data bits, stop bits, parity and flow control (None, RTS/CTS, XON/XOFF).

Q: Which USB standard does it use?
A: It is USB 1.1/2.0 compliant, operating at 12 Mbps or 480 Mbps (Hi-Speed), and connects to the host via a USB Type B port.

Q: How is the UPort 1610-16 powered?
A: It accepts a 100 to 240 VAC input, drawing 220 mA at 100 VAC, so it suits a wide range of mains supplies.

Q: What serial standard do the ports support?
A: All 16 ports are RS-232 on DB9 male connectors, supporting the TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
