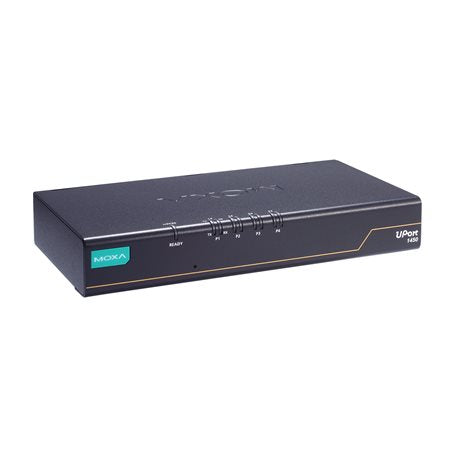

Moxa UPort 1450-G2 | USB to 4-Port RS-232/422/485 Converter

Authorised Moxa Partner

SKU:UPort 1450-G2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1450-G2 is an industrial USB 3.2 Gen 1 to 4-port RS-232/422/485 serial converter with DB9 male connectors, ideal for adding multiple serial ports to a PC or industrial controller. This 4-port, non-isolated model is housed in a rugged metal enclosure and operates across a 0 to 60°C temperature range, supporting baudrates from 50 bps to 921.6 kbps.

It can be powered from the USB bus or from an external 12 to 48 VDC adaptor, and includes 0.5 kV surge protection, 512-byte FIFO and automatic data direction control for RS-485. Drivers are available for Windows, Linux, macOS and Android, including Arm-based Linux platforms.

Features

- SuperSpeed USB 3.2 Gen 1 with USB 2.0/1.1 backward compatibility
- Up to 921.6 kbps baudrate for high-speed serial performance
- 512-byte FIFO per port
- Automatic Data Direction Control (ADDC) for RS-485
- Driver support for Windows, Linux, macOS and Android
- Support for Arm-based platforms (Linux kernel 6.x, 5.x, 4.x)
- Metal housing with 0.5 kV surge protection
- Powered via USB bus or external 12 to 48 VDC adaptor

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- USB to 4 x RS-232/422/485 serial ports (DB9 male)
- USB 3.2 Gen 1 (5 Gbps), USB 2.0/1.1 compatible, USB Type B connector
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- 512-byte FIFO
- Parity: None, Even, Odd, Space, Mark
- Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2
- Flow control: RTS/CTS, XON/XOFF
- RS-485 pull high/low resistors: 1 kilo-ohm, 150 kilo-ohms; 120 ohm terminator
- 0.5 kV surge protection, no isolation on this model
- Power: 5 VDC USB bus power or 12 to 48 VDC external adaptor
- Housing: metal, IP20
- Dimensions: 185 x 30 x 90.6 mm, weight 373 g
- Operating temperature: 0 to 60°C; storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Certifications: CISPR 32, FCC Part 15B Class A, EN 55032/35, IEC/UL 62368-1, KC, RoHS, CRoHS, WEEE
- MTBF: 1,431,860 hrs (Telcordia SR332)

FAQs

Q: How many serial ports does the UPort 1450-G2 provide?
A: It provides four serial ports with DB9 male connectors, each software-selectable as RS-232, RS-422 or RS-485.

Q: Does this model include electrical isolation?
A: No. The UPort 1450-G2 is a non-isolated model with 0.5 kV surge protection. Isolation of 2 kV is only available on the I models in the range.

Q: How is the UPort 1450-G2 powered?
A: It can run from 5 VDC USB bus power or from an external 12 to 48 VDC power adaptor.

Q: Which operating systems are supported?
A: Drivers are available for Windows 11, 10, 8.1, 8 and 7, Windows Server 2008 R2 to 2022, Linux kernel 4.x, 5.x and 6.x, macOS and Android 3.1.x and later.

Q: Is it backward compatible with older USB ports?
A: Yes. The USB 3.2 Gen 1 interface is compatible with USB 2.0 and USB 1.1 hosts, running at 480 Mbps and 12 Mbps respectively.

Q: What temperature range does this model support?
A: The standard UPort 1450-G2 operates from 0 to 60°C, so it suits typical indoor and cabinet installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
