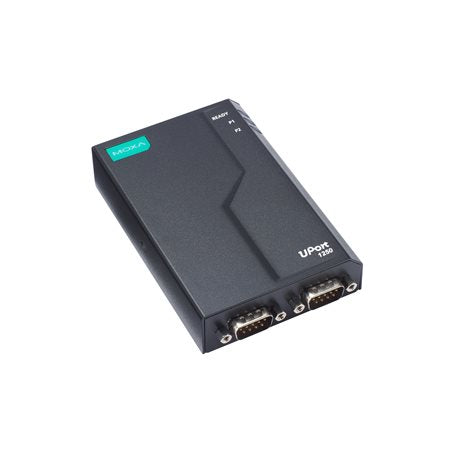

Moxa UPort 1250-G2-T | UPort 1200-G2 2-Port USB-to-Serial Converter, -40 to 75°C

Authorised Moxa Partner

SKU:UPort 1250-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1250-G2-T is a 2-port RS-232/422/485 USB-to-serial converter with a SuperSpeed USB 3.2 Gen 1 interface, built for industrial automation and field deployments. This non-isolated wide temperature model is rated for operation from -40 to 75°C, and its metal housing suits control cabinets and harsh environments.

Each DB9 male serial port is software-selectable between RS-232, RS-422 and RS-485, with baudrates from 50 bps to 921.6 kbps and a 512-byte FIFO. Automatic Data Direction Control simplifies RS-485 wiring, and the unit draws power from the USB bus so no external power supply is needed. Drivers are available for Windows, Linux, macOS and Android, with Arm-based platform support.

Features

- SuperSpeed USB 3.2 Gen 1 interface with USB 2.0/1.1 compatibility
- Two software-selectable RS-232/422/485 serial ports
- Automatic Data Direction Control (ADDC) for RS-485
- Drivers for Windows, Linux, macOS and Android, plus virtual machine and Arm-based platform support
- Wide operating temperature range of -40 to 75°C
- Rugged metal housing
- Powered by the USB bus, no external power supply needed
- Supports non-standard baudrates for specialised serial devices

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports, DB9 male
- USB 3.2 Gen 1 (5 Gbps), USB 1.1/2.0 compliant, USB Type B connector
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- FIFO: 512 bytes
- Parity: None, Even, Odd, Space, Mark
- Data bits: 5, 6, 7, 8. Stop bits: 1, 1.5, 2
- Flow control: RTS/CTS, XON/XOFF
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms. Terminator: 120 ohms
- Surge protection: 0.5 kV (no isolation on this model)
- Power: 5 VDC from USB bus, 320 mA at USB 3, 160 mA at USB 2
- Housing: metal, IP20
- Dimensions: 75.8 x 25.0 x 111.0 mm
- Weight: 259 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- MTBF: 2,142,392 hrs (Telcordia SR332)

FAQs

Q: Which serial interfaces does the UPort 1250-G2-T support?
A: Each of the two DB9 male ports is software-selectable between RS-232, RS-422 and RS-485 (2-wire and 4-wire).

Q: Does this model provide electrical isolation?
A: No. The UPort 1250-G2-T is the non-isolated model and offers 0.5 kV surge protection. The 2 kV isolation applies only to the I models in the range.

Q: Does it need an external power supply?
A: No. It is powered from the USB bus at 5 VDC, drawing 320 mA on USB 3 or 160 mA on USB 2.

Q: What operating temperature range is supported?
A: The T model operates from -40 to 75°C, making it suitable for industrial cabinets and outdoor enclosures.

Q: Which operating systems have drivers?
A: Drivers are available for Windows (including Windows 11 and Server 2022), Linux kernel 4.x to 6.x, macOS 10.1x to 13 and Android 3.1.x and later, plus Arm-based Linux platforms.

Q: Can it connect to older USB ports?
A: Yes. It is USB 1.1/2.0 compliant, so it works on older ports at reduced speeds of 12 Mbps or 480 Mbps, with a lower current draw.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
