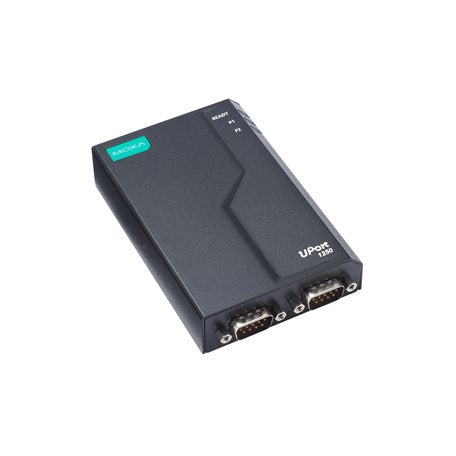

Moxa UPort 1250-G2 | 2-Port USB-to-Serial Converter, RS-232/422/485, 0.5kV Surge

Authorised Moxa Partner

SKU:UPort 1250-G2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa UPort 1250-G2 is a 2-port RS-232/422/485 USB-to-serial converter that connects legacy serial devices such as PLCs, meters, sensors and barcode readers to modern PCs over a SuperSpeed USB 3.2 Gen 1 connection. This non-isolated model offers 0.5 kV surge protection and operates across a 0 to 60°C temperature range, suited to office, lab and light industrial environments.

Each DB9 male serial port is individually software-selectable for RS-232, RS-422 or RS-485, with Automatic Data Direction Control (ADDC) for RS-485 and baudrates from 50 bps to 921.6 kbps. The metal housing is bus-powered over USB so no external power supply is needed, and drivers are available for Windows, Linux, macOS and Android, including virtual machine and Arm-based Linux platforms.

Features

- SuperSpeed USB 3.2 Gen 1 interface with USB 2.0 backward compatibility
- Two serial ports individually software-selectable for RS-232, RS-422 or RS-485
- Automatic Data Direction Control (ADDC) for RS-485
- COM port mapping and driver support for Windows, Linux, macOS and Android
- Supports virtual machines (VMware, Parallels) and Arm-based Linux platforms
- Metal housing and USB bus power with no external power supply required

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports, DB9 male
- USB 3.2 Gen 1 (5 Gbps), USB 2.0/1.1 compatible, USB Type B connector
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- 512-byte FIFO
- Parity: None, Even, Odd, Space, Mark; data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms; 120 ohm terminator
- Flow control: RTS/CTS, XON/XOFF
- Surge protection: 0.5 kV (no isolation on this model)
- Power: 5 VDC via USB bus; 320 mA at USB 3, 160 mA at USB 2
- Housing: metal, IP20
- Dimensions: 75.8 x 25.0 x 111.0 mm; weight 259 g
- Operating temperature: 0 to 60°C; storage -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Certifications: CISPR 32, FCC Part 15B Class A, EN 55032/35, IEC 62368-1, KC, RoHS, CRoHS, WEEE
- MTBF: 2,142,392 hours (Telcordia SR332)

FAQs

Q: Does the UPort 1250-G2 need an external power supply?
A: No. It is bus-powered at 5 VDC from the USB port, drawing 320 mA on USB 3 and 160 mA on USB 2.

Q: Which serial interfaces does each port support?
A: Each of the two DB9 male ports is individually software-selectable for RS-232, RS-422 or RS-485 (2-wire or 4-wire), with Automatic Data Direction Control for RS-485.

Q: Does this model provide isolation?
A: No. The UPort 1250-G2 provides 0.5 kV surge protection but no isolation. Isolation (2 kV) is only available on the I model variants of the series.

Q: Which operating systems are supported?
A: Drivers are available for Windows (including Windows 11 and Windows Server 2022), Linux kernels 4.x to 6.x, macOS 10.1x to 13 on Intel 64, and Android 3.1.x and later.

Q: Will it work with USB 2.0 ports?
A: Yes. The converter is backward compatible with USB 2.0 and 1.1 hosts, though full 5 Gbps USB speed requires a USB 3.2 Gen 1 port.

Q: What is the operating temperature range?
A: This model is rated for 0 to 60°C operation, so it suits standard indoor environments rather than extended-temperature installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
