Description

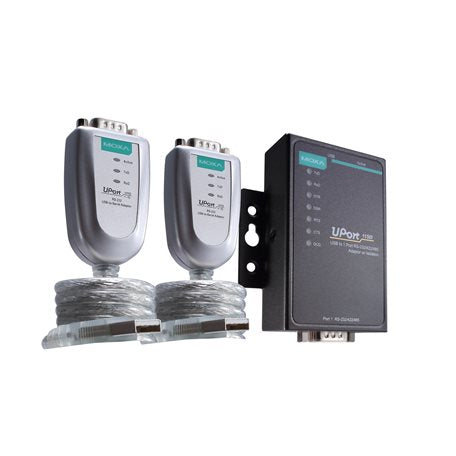

The Moxa UPort 1130I is a compact 1-port USB-to-serial converter that adds an isolated RS-422/485 serial port to any computer with a USB Type A port. With 2 kV isolation protection, it safeguards both the host PC and connected serial devices from ground loops and electrical surges, making it well suited to industrial automation, building management and test equipment connections.

The UPort 1130I supports baudrates from 50 bps up to 921.6 kbps and is powered directly from the USB port. A mini-DB9-female-to-terminal-block adapter is included for simple field wiring, and drivers are provided for Windows, macOS, Linux and WinCE. Activity LEDs show USB and TxD/RxD status at a glance.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- 2 kV isolation protection for the host PC and serial devices
- Drivers provided for Windows, macOS, Linux and WinCE
- Mini-DB9-female-to-terminal-block adapter included for easy wiring
- LEDs indicate USB and TxD/RxD activity
- Bus powered from USB, no external power supply required

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-422/485 serial port (DB9 male)
- USB 1.0/1.1 compliant, USB 2.0 compatible, USB Type A, 12 Mbps
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Isolation: 2 kV
- Serial standards: RS-422, RS-485-2w, RS-485-4w
- Power: 5 VDC from USB, 65 mA
- Housing: ABS + Polycarbonate
- Dimensions: 37.5 x 20.5 x 60 mm
- Weight: 65 g
- Operating temperature: 0 to 55 C
- Storage temperature: -20 to 70 C
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: Which serial standards does the UPort 1130I support?
A: It provides one DB9 male serial port supporting RS-422, RS-485 4-wire and RS-485 2-wire.

Q: Does the UPort 1130I need an external power supply?
A: No. It is powered from the USB port at 5 VDC and draws 65 mA.

Q: What does the 2 kV isolation protect against?
A: The isolation separates the USB host from the serial side, protecting the PC and connected devices from ground loops and electrical surges.

Q: Which operating systems are supported?
A: Drivers are provided for Windows, macOS, Linux and WinCE.

Q: Is a terminal block adapter included for wiring?
A: Yes. A mini-DB9-female-to-terminal-block adapter is included to simplify field wiring of RS-422/485 signals.

Q: What is the maximum baudrate?
A: The UPort 1130I supports baudrates from 50 bps up to 921.6 kbps.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
