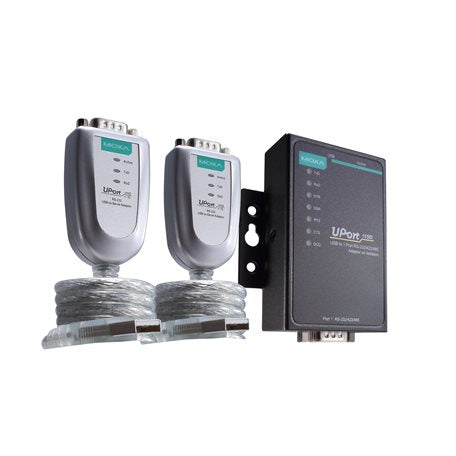

Moxa UPort-1130 | UPort 1130 USB-to-Serial Converter, 1-Port RS-422/485

Authorised Moxa Partner

SKU:UPort 1130

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The UPort 1130 is a 1-port RS-422/485 USB-to-serial converter that adds a DB9 male serial port to a laptop or workstation through a USB Type-A connection. This non-isolated model is plug-and-play and suited to mobile, instrumentation and point-of-sale applications where a native serial port is not available.

The converter is USB 2.0 compatible at 12 Mbps and supports serial baudrates from 50 bps to 921.6 kbps. It draws its power directly from the USB port, so no external power supply is required. Its compact housing measures 37.5 x 20.5 x 60 mm and weighs 65 g, and driver support covers Windows, Linux and macOS.

Features

- Plug-and-play USB to RS-422/485 conversion for laptops and workstations without a serial port
- Hi-Speed USB 2.0 interface with 921.6 kbps maximum serial baudrate
- Powered directly from the USB port, no external power supply needed
- Compact industrial-grade design for mobile, instrumentation and POS applications
- Driver support for Windows, Linux and macOS

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-422/485 serial port (DB9 male)
- USB 2.0 compatible (12 Mbps), USB Type-A connector
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- RS-422 signals: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w signals: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w signals: Data+, Data-, GND
- Power input: 5 VDC, 60 mA (USB powered)
- Housing: ABS + Polycarbonate
- Dimensions: 37.5 x 20.5 x 60 mm
- Weight: 65 g
- Operating temperature: 0 to 55°C
- Storage temperature: -20 to 70°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class 1

FAQs

Q: What serial interfaces does the UPort 1130 support?
A: It provides one serial port on a DB9 male connector supporting RS-422, RS-485 4-wire and RS-485 2-wire.

Q: Does the UPort 1130 need an external power supply?
A: No. It is powered from the USB port at 5 VDC and draws 60 mA.

Q: Which operating systems are supported?
A: Driver support is available for Windows, Linux and macOS.

Q: What is the maximum baudrate?
A: The serial baudrate ranges from 50 bps to 921.6 kbps.

Q: Is the UPort 1130 isolated?
A: No. This 1-port RS-422/485 model is non-isolated.

Q: What USB connection does it use?
A: It connects through a USB Type-A connector and is USB 2.0 compatible at 12 Mbps, with USB 1.1/1.0 compliance.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
