• Moxa NPort S9650I-8-2HV-SSC-T 8-port RS232/422/485 rugged device server
1 1

Moxa

Moxa NPort S9650I-8-2HV-SSC-T | NPort S9650I 8-Port Serial Device Server, 2x SC SM Fibre

Moxa NPort S9650I-8-2HV-SSC-T | NPort S9650I 8-Port Serial Device Server, 2x SC SM Fibre

Authorised Moxa Partner

NPort S9650I-8-2HV-SSC-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

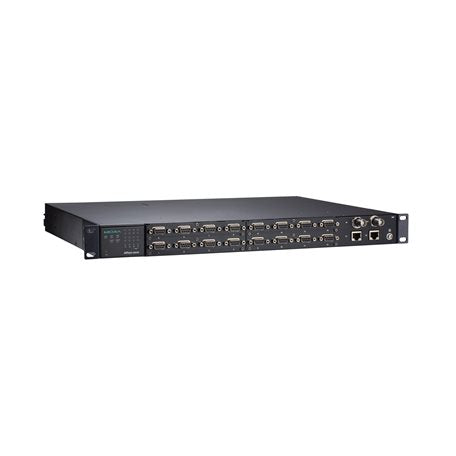

The Moxa NPort S9650I-8-2HV-SSC-T is an 8-port RS-232/422/485 rugged serial device server with a built-in managed Ethernet switch, designed for electrical substations and other harsh industrial sites. It provides 8 DB9 male serial ports, 2 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX single-mode SC fibre ports, and accepts 88-300 VDC or 85-264 VAC power (2HV) across a -40 to 85°C operating range.

Built to IEC 61850-3 and IEEE 1613, the unit supports hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation, Turbo Ring and Turbo Chain redundancy, and DNP3 and Modbus protocol handling. Dual power inputs, a metal housing and 19-inch rack mounting suit permanent substation and utility cabinet installations, while Real COM/TTY drivers allow legacy serial equipment to be networked from Windows and Linux hosts.

Features

- 8-port RS-232/422/485 serial interface with managed Ethernet switch ports
- Hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation
- Supports DNP3 and Modbus TCP protocols, and IEC 61850 MMS
- Ethernet redundancy with Turbo Ring v1/v2, Turbo Chain and RSTP
- Real COM/TTY drivers for Windows and Linux
- Security features including HTTPS/SSL, SSH, RADIUS and TACACS+, based on IEC 62443/NERC CIP
- Dual wide-range AC/DC power inputs for substation environments
- 40 to 85°C wide operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports (DB9 male)
- 2 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX single-mode SC fibre ports, typical distance 40 km at 1310 nm
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Serial isolation 2 kV, serial surge protection 4 kV
- Console port: RS-232, 10-pin RJ45
- Dual power inputs, 88 to 300 VDC or 85 to 264 VAC, reverse polarity protection
- Alarm contact: resistive load, 1 A @ 24 VDC
- Operating temperature -40 to 85°C, humidity 5 to 95% non-condensing
- Metal housing, 19-inch rack mounting, 457 x 32 x 330 mm, 5.15 kg
- IEC 61850-3 and IEEE 1613 compliant
- MTBF 220,944 hrs (Telcordia SR332)

FAQs

Q: What serial interfaces does the NPort S9650I-8-2HV-SSC-T support?
A: It has 8 DB9 male serial ports, each software-selectable as RS-232, RS-422 or RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: What fibre connections does this model have?
A: It has 2 x 100BaseFX single-mode ports with SC connectors, with a typical distance of 40 km at 1310 nm, plus 2 x 10/100BaseT(X) RJ45 copper ports.

Q: What power supply does the 2HV variant use?
A: The unit has dual power inputs accepting 88 to 300 VDC or 85 to 264 VAC, with reverse polarity protection.

Q: Is it suitable for electrical substations?
A: Yes. It is compliant with IEC 61850-3 and IEEE 1613, operates from -40 to 85°C and supports IEEE 1588v2 PTP and IRIG-B time synchronisation.

Q: Which industrial protocols does it support?
A: It supports Modbus TCP, DNP3 and IEC 61850 MMS, with up to 32 Modbus TCP client connections and 16 server connections.

Q: Which network redundancy options are available?
A: The built-in switch supports Turbo Ring v1 and v2, Turbo Chain and RSTP for resilient Ethernet topologies.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
