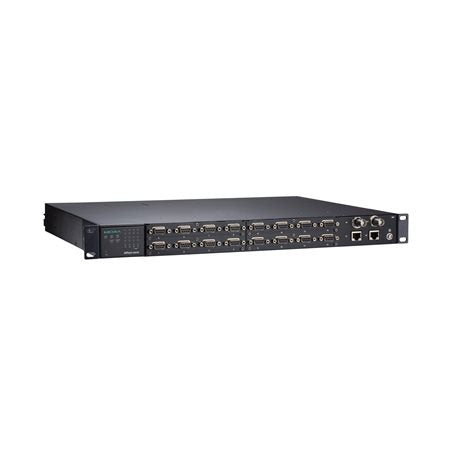

Moxa NPort S9650I-8-2HV-E-T | NPort S9650I 8-Port RS-232/422/485 Rugged Device Server, HV, -40 to 85C

Moxa NPort S9650I-8-2HV-E-T | NPort S9650I 8-Port RS-232/422/485 Rugged Device Server, HV, -40 to 85C

Authorised Moxa Partner

NPort S9650I-8-2HV-E-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort S9650I-8-2HV-E-T is a rugged 8-port RS-232/422/485 serial device server with an integrated managed Ethernet switch, built for power substation and harsh industrial environments. This variant pairs 8 DB9 serial ports with a 2-port Ethernet RJ45 module (4 x 10/100BaseT(X)), HV power inputs (100 to 240 VAC / 100 to 250 VDC) and a -40 to 85°C operating range. Hardware-based IEEE 1588v2 PTP and IRIG-B support provide precise time synchronisation.

It carries IEC 61850-3 and IEEE 1613 power substation compliance, with 2 kV serial isolation and 4 kV surge protection. Modbus TCP and DNP3 gateway functions, Real COM/TTY drivers and Turbo Ring, Turbo Chain and RSTP redundancy make it suited to utility, energy and industrial automation networks. The 19-inch metal rackmount housing and dual power inputs support reliable continuous operation.

Features

- Combines a managed Ethernet switch and an 8-port serial device server in one unit
- Hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation
- Turbo Ring v1/v2, Turbo Chain and RSTP network redundancy
- Dual redundant universal HV power inputs with reverse polarity protection
- Wide operating temperature range of -40 to 85°C
- Compliant with IEC 61850-3 and IEEE 1613 for power substations
- Modbus TCP and DNP3 gateway functions plus Real COM/TTY drivers for Windows, Linux and others
- HTTPS/SSL, SSH, RADIUS and TACACS+ security features

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports (DB9 male)
- 4 x 10/100BaseT(X) RJ45 Ethernet ports (2-port Ethernet RJ45 module)
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- Serial isolation 2 kV, serial surge protection 4 kV
- Time management: NTP, SNTP, IEEE 1588v2 PTP (hardware-based), IRIG-B
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3
- Redundancy: RSTP, Turbo Chain, Turbo Ring v1/v2
- Dual power inputs, 100 to 240 VAC / 100 to 250 VDC, reverse polarity protection
- Operating temperature: -40 to 85°C
- Power substation compliance: IEC 61850-3, IEEE 1613
- Housing: metal, 19-inch rack mount
- Dimensions: 457 x 32 x 330 mm, weight 5.15 kg
- MTBF: 224,670 hrs (Telcordia SR332)

FAQs

Q: What serial interfaces does the NPort S9650I-8-2HV-E-T support?
A: It provides 8 DB9 male serial ports, each software-selectable for RS-232, RS-422 or RS-485, with baud rates from 50 bps to 921.6 kbps.

Q: What power input does this model use?
A: This HV variant has dual power inputs accepting 100 to 240 VAC or 100 to 250 VDC, with reverse polarity protection.

Q: Is it suitable for power substations?
A: Yes. It complies with IEC 61850-3 and IEEE 1613 and supports hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation.

Q: What Ethernet connectivity is included?
A: This SKU includes a 2-port Ethernet RJ45 module providing 4 x 10/100BaseT(X) ports through the integrated managed switch.

Q: Which industrial protocols and operation modes are supported?
A: It supports Real COM, RFC2217, TCP Client, TCP Server and UDP modes, plus Modbus TCP server (slave) and DNP3 TCP outstation gateway functions.

Q: What is the operating temperature range?
A: This model operates from -40 to 85°C at 5 to 95% non-condensing relative humidity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
