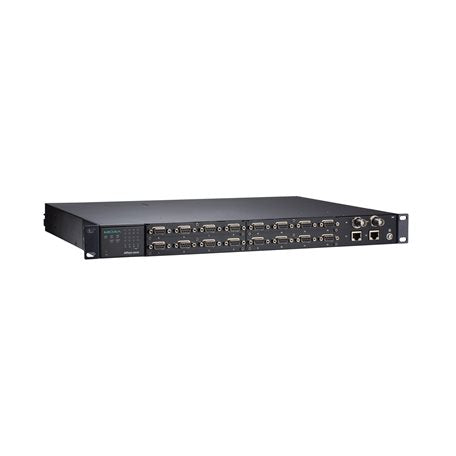

• Moxa NPort S9650I-16F-2HV-MSC-T 16-port rugged device server rack-mount switch
1 1

Moxa

Moxa NPort S9650I-16F-2HV-MSC-T | NPort S9650I 16-Port Serial Device Server, ST Fibre, SC, 2HV

Moxa NPort S9650I-16F-2HV-MSC-T | NPort S9650I 16-Port Serial Device Server, ST Fibre, SC, 2HV

Authorised Moxa Partner

NPort S9650I-16F-2HV-MSC-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort S9650I-16F-2HV-MSC-T is a 16-port RS-232/422/485 serial device server for power substation and utility networks. It combines a serial device server, a managed Ethernet switch and fibre connectivity in one 19-inch rack-mount unit. The 16 serial ports use multi-mode ST fibre connectors, and a 2-port multi-mode SC fibre Ethernet module provides 100BaseFX uplinks alongside 2 x 10/100BaseT(X) RJ45 ports.

Built for harsh environments, this 2HV model accepts dual 110/220 VAC/VDC power inputs with reverse polarity protection, operates from -40 to 85°C, and is compliant with IEC 61850-3 and IEEE 1613. Hardware-based IEEE 1588v2 PTP and IRIG-B support precise time synchronisation, while Turbo Ring, Turbo Chain and RSTP provide network redundancy. Modbus TCP and DNP3 support, plus HTTPS, SSH, RADIUS and TACACS+ security, make it suited to secure SCADA and substation automation deployments.

Features

- 3-in-1 design combining a serial device server, a managed Ethernet switch and fibre connectivity
- Serial ports use multi-mode fibre ST connectors
- Supports up to 4 managed Ethernet switch ports
- Hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation
- Turbo Ring, Turbo Chain and RSTP network redundancy
- IEC 61850-3 and IEEE 1613 power substation compliance
- Dual 110/220 VAC/VDC power inputs with reverse polarity protection
- 40 to 85°C wide operating temperature
- Modbus TCP and DNP3 protocol support
- HTTPS/SSL, SSH, RADIUS and TACACS+ security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports with multi-mode fibre ST connectors
- 2 x 10/100BaseT(X) RJ45 Ethernet ports
- 2 x 100BaseFX multi-mode SC fibre ports
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Serial isolation 2 kV, serial surge protection 4 kV
- Dual power inputs 110/220 VAC/VDC (100 to 240 VAC, 100 to 250 VDC)
- Operating temperature -40 to 85°C
- IEC 61850-3 and IEEE 1613 power substation compliance
- IEEE 1588v2 PTP (hardware-based) and IRIG-B time management
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3
- 19-inch rack mount, metal housing, 457 x 32 x 330 mm, 5.15 kg
- MTBF 256,761 hrs (Telcordia SR332)

FAQs

Q: What type of connectors do the serial ports use on this model?
A: All 16 serial ports use multi-mode fibre ST connectors and support RS-232, RS-422 and RS-485 operation.

Q: What Ethernet ports does the NPort S9650I-16F-2HV-MSC-T provide?
A: It has 2 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode SC fibre ports, giving up to 4 managed Ethernet switch ports.

Q: Is this unit suitable for power substation use?
A: Yes. It is compliant with IEC 61850-3 and IEEE 1613, supports hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation, and operates from -40 to 85°C.

Q: What power supply does the 2HV model use?
A: It has two power inputs accepting 110/220 VAC/VDC (100 to 240 VAC, 100 to 250 VDC) with reverse polarity protection, so redundant feeds can be connected.

Q: Which industrial protocols and redundancy options are supported?
A: It supports Modbus TCP and DNP3 TCP, and network redundancy through Turbo Ring v1/v2, Turbo Chain and RSTP.

Q: How is the device mounted and managed?
A: It is a 19-inch rack-mount unit with a metal housing. Management is via web console (HTTP/HTTPS), Windows utility, Device Search Utility, MCC Tool, or CLI over serial, Telnet or SSH.

Datasheet
