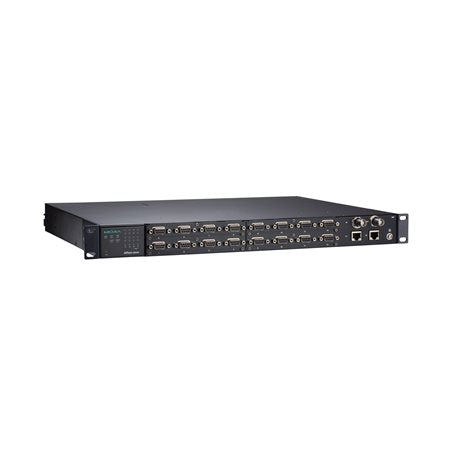

• Moxa NPort S9650I-16-2HV-SSC-T 16-port rugged device server with rack-mount black metal chassis
1 1

Moxa

Moxa NPort S9650I-16-2HV-SSC-T | NPort S9650I 16-Port Rugged Serial Device Server, SC Fibre, HV

Moxa NPort S9650I-16-2HV-SSC-T | NPort S9650I 16-Port Rugged Serial Device Server, SC Fibre, HV

Authorised Moxa Partner

NPort S9650I-16-2HV-SSC-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort S9650I-16-2HV-SSC-T is a rugged 16-port RS-232/422/485 serial device server with a built-in managed Ethernet switch, designed for rack-mounted deployment in harsh industrial and power substation environments. This variant provides 16 DB9 male serial ports, 2 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX single-mode SC fibre ports, and runs on the high-voltage (HV) power range of 100-240 VAC or 100-250 VDC across a -40 to 85°C operating temperature range.

Serial ports support Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus and DNP3 operation, with 2 kV serial isolation and 4 kV surge protection. Turbo Ring and Turbo Chain redundancy can be selected by DIP switch, the RJ45 ports support IEEE 1588v2, and dual power inputs with reverse polarity protection help keep connected serial equipment online. The metal 19-inch rackmount housing carries IEC 61850-3 and IEEE 1613 power substation certifications.

Features

- Combines a 16-port serial device server with a built-in managed Ethernet switch
- Turbo Ring and Turbo Chain redundancy, selectable by DIP switch
- IEEE 1588v2 support on the RJ45 Ethernet ports
- Wide -40 to 85°C operating temperature range
- Dual redundant power inputs with reverse polarity protection
- Power substation certifications (IEC 61850-3, IEEE 1613)
- Supports Modbus and DNP3 protocols and Modbus TCP gateway operation
- Single-mode SC fibre uplinks for long-distance, noise-immune connections

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports, DB9 male
- 2 x 10/100BaseT(X) RJ45 ports with IEEE 1588v2 support
- 2 x 100BaseFX single-mode SC fibre ports
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Data bits 5-8, stop bits 1, 1.5 or 2, parity None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Serial isolation 2 kV, serial surge protection 4 kV
- RS-485 automatic data direction control (ADDC)
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3, DNP3 Raw Socket
- Modbus TCP: up to 32 client connections and 16 server connections
- 256 IGMP groups, up to 64 VLANs (VID 1 to 4094), 4 priority queues
- 2 power inputs, 110/220 VAC/VDC (100-240 VAC, 100-250 VDC), reverse polarity protection
- Input current: 0.65 A @ 100 VAC, 0.47 A @ 100 VDC
- Operating temperature: -40 to 85°C, humidity 5 to 95% non-condensing
- Metal housing, 19-inch rack mounting, 457 x 32 x 330 mm, 5.15 kg
- Standards: IEC 61850-3, IEEE 1613, EN 61010-2-201, UL 61010-2-201

FAQs

Q: What power input does the NPort S9650I-16-2HV-SSC-T use?
A: This is the HV model, with dual power inputs accepting 100-240 VAC or 100-250 VDC. It includes reverse polarity protection.

Q: Which serial interfaces does it support?
A: It provides 16 DB9 male serial ports supporting RS-232, RS-422 and RS-485, with 2 kV isolation and 4 kV surge protection.

Q: What fibre ports are fitted?
A: It has 2 x 100BaseFX single-mode SC fibre ports alongside 2 x 10/100BaseT(X) RJ45 ports.

Q: Does it support network redundancy?
A: Yes. Turbo Ring and Turbo Chain redundancy can be selected by DIP switch (Turbo Ring, Master, Coupler).

Q: Is it suitable for power substation use?
A: Yes. It meets IEC 61850-3 and IEEE 1613 power substation standards and operates from -40 to 85°C.

Q: Can it be rack mounted?
A: Yes. It has a metal 19-inch rackmount housing measuring 457 x 32 x 330 mm.
