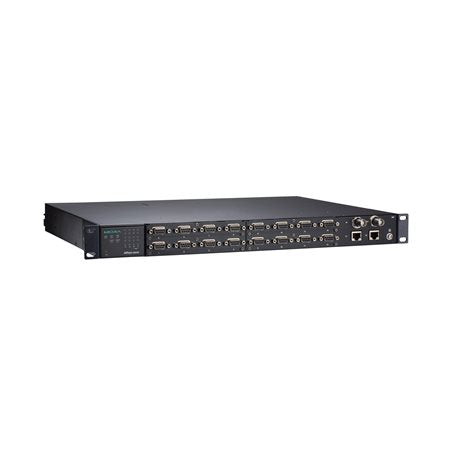

• Moxa NPort S9650I-16-2HV-E-T 16-port rugged device server front view
1 1

Moxa

Moxa NPort S9650I-16-2HV-E-T | NPort S9650I 16-Port RS-232/422/485 Device Server, 88-300 VDC

Moxa NPort S9650I-16-2HV-E-T | NPort S9650I 16-Port RS-232/422/485 Device Server, 88-300 VDC

Authorised Moxa Partner

NPort S9650I-16-2HV-E-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort S9650I-16-2HV-E-T is a 16-port RS-232/422/485 serial device server with a built-in managed Ethernet switch, designed for rugged 19-inch rack deployments such as power substations. It features 2HV power inputs accepting 88 to 300 VDC or 85 to 264 VAC, a 2-port 10/100BaseT(X) RJ45 Ethernet module, and an extended operating range of -40 to 85°C.

Hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation, Modbus TCP and DNP3 protocol support, and Turbo Ring, Turbo Chain and RSTP redundancy make it well suited to utility and industrial automation networks. Serial ports provide 2 kV isolation and 4 kV surge protection, and Real COM, Real TTY and Fixed TTY drivers support Windows, Linux and Unix hosts.

Features

- Combines a 16-port serial device server and a managed Ethernet switch in one unit
- Hardware-based IEEE 1588v2 PTP and IRIG-B time synchronisation
- Turbo Ring, Turbo Chain and RSTP network redundancy
- Modbus TCP and DNP3 protocol support
- Dual power inputs with reverse polarity protection
- Rugged design for power substations (IEC 61850-3, IEEE 1613)
- Real COM, Real TTY and Fixed TTY drivers for Windows, Linux and Unix, plus an Android API
- Security: HTTPS/SSL, SSH, RADIUS, TACACS+

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (DB9 male)
- 4 x 10/100BaseT(X) Ethernet ports (RJ45), with 2-port Ethernet RJ45 module
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Serial isolation: 2 kV, serial surge protection: 4 kV
- Power input: 88 to 300 VDC or 85 to 264 VAC, 2 power inputs with reverse polarity protection
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Time management: NTP, SNTP, IEEE 1588v2 PTP (hardware-based), IRIG-B
- Redundancy: RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2
- Industrial protocols: Modbus TCP Server (Slave), DNP3 TCP Outstation
- Console port: RS-232, 10-pin RJ45
- Alarm contact: resistive load, 1 A @ 24 VDC
- Housing: metal, 19-inch rack mounting
- Dimensions: 457 x 32 x 330 mm (18 x 1.25 x 12.99 in)
- Weight: 5.15 kg (11.35 lb)
- Standards: IEC 61850-3, IEEE 1613, EN 61000-6-2/-6-4, EN 61010-2-201, UL 61010-2-201
- MTBF: 158,816 hrs (Telcordia SR332)

FAQs

Q: What serial interfaces does the NPort S9650I-16-2HV-E-T support?
A: It provides 16 DB9 male serial ports that support RS-232, RS-422 and RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: What power input does the 2HV model accept?
A: The 2HV variant accepts 88 to 300 VDC or 85 to 264 VAC on two power inputs, with reverse polarity protection.

Q: Does it support precise time synchronisation?
A: Yes. It supports hardware-based IEEE 1588v2 PTP and IRIG-B, as well as NTP and SNTP.

Q: Which operating modes and industrial protocols are supported?
A: Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus and DNP3. It acts as a Modbus TCP Server (Slave) and DNP3 TCP Outstation.

Q: What is the operating temperature range?
A: This -T model operates from -40 to 85°C, suitable for harsh substation and industrial environments.

Q: Which operating systems have drivers for it?
A: Real COM, Real TTY and Fixed TTY drivers are available for Windows, Linux and Unix, with an Android API also provided.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
