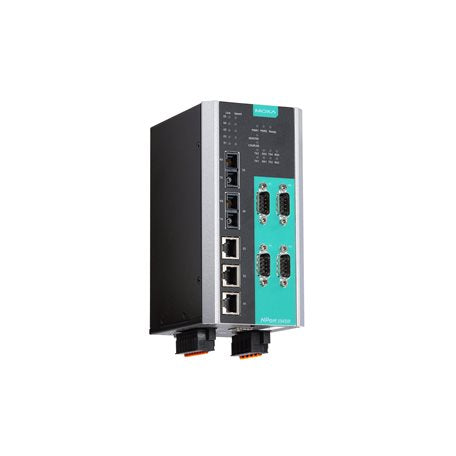

• Moxa NPort S9450I-WV-T 4-port RS232/422/485 rugged device server front view
1 1

Moxa

Moxa NPort S9450I-WV-T | NPort S9450I 4-Port RS-232/422/485 Device Server, 5x RJ45 Switch

Moxa NPort S9450I-WV-T | NPort S9450I 4-Port RS-232/422/485 Device Server, 5x RJ45 Switch

Authorised Moxa Partner

NPort S9450I-WV-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort S9450I-WV-T is a rugged 4-port RS-232/422/485 serial device server with a built-in 5-port 10/100BaseT(X) RJ45 managed Ethernet switch, powered from 24/48 VDC. It is built for power substation and harsh industrial environments, with a -40 to 85°C operating range and compliance with IEC 61850-3 and IEEE 1613. This variant has no fibre ports and uses a dual-input 24/48 VDC supply (18 to 72 VDC).

Serial ports support baudrates from 50 bps to 921.6 kbps with 2 kV isolation and 4 kV surge protection. Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus and DNP3, along with IEC 61850 MMS support, and the integrated switch provides Turbo Ring, Turbo Chain and RSTP redundancy. The metal housing mounts on a DIN rail or on a wall with an optional kit.

Features

- Combines a full-function NPort device server with a built-in managed Ethernet switch in one unit
- Supports IEC 61850 MMS protocol
- Ring redundancy with Turbo Ring v1/v2, Turbo Chain and RSTP
- 40 to 85°C wide operating temperature range
- Modbus TCP and DNP3 protocol conversion between serial and Ethernet
- Real COM, TTY and other drivers for Windows, Linux, macOS and Android
- Security features including HTTPS/SSL, SSH, RADIUS and TACACS+
- 2 kV serial isolation and 4 kV surge protection
- Dual redundant power inputs with reverse polarity protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, DB9 male
- 5 x 10/100BaseT(X) RJ45 Ethernet ports (built-in managed switch), no fibre ports
- Input voltage 24/48 VDC (18 to 72 VDC), 2 power inputs, reverse polarity protection
- Input current 520 mA @ 24 VDC
- Operating temperature -40 to 85°C
- Serial baudrate 50 bps to 921.6 kbps
- Serial isolation 2 kV, serial surge protection 4 kV
- 2 alarm contact channels, 2 digital inputs
- Up to 64 VLANs, 256 IGMP groups, 4 priority queues
- Modbus TCP, DNP3 and IEC 61850 MMS support
- Metal housing, DIN-rail mounting, wall mounting with optional kit
- Dimensions 80 x 160 x 109 mm, weight 2.54 kg
- Certifications: IEC 61850-3, IEEE 1613, UL/cUL Class I Division 2, CISPR 32, FCC Part 15B Class A
- MTBF 347,436 hrs (Telcordia SR-332)

FAQs

Q: What serial interfaces does the NPort S9450I-WV-T support?
A: It has 4 DB9 male serial ports, each configurable for RS-232, RS-422 or RS-485.

Q: Does this model have fibre ports?
A: No. This variant has 5 x 10/100BaseT(X) RJ45 Ethernet ports and no 100BaseFX fibre ports.

Q: What power input does it use?
A: It accepts 24/48 VDC (18 to 72 VDC) through a removable 5-contact terminal block, with two power inputs and reverse polarity protection.

Q: Is it suitable for power substation use?
A: Yes. It is compliant with IEC 61850-3 and IEEE 1613 and supports the IEC 61850 MMS protocol.

Q: Which redundancy protocols does the built-in switch support?
A: The integrated managed switch supports RSTP, Turbo Chain, Turbo Ring v1 and Turbo Ring v2.

Q: How is it mounted?
A: It mounts on a DIN rail as standard, or on a wall using an optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
