Moxa NPort S9450I-2S-ST-WV-T | NPort S9450I 4-Port Serial Device Server, 2x SM ST Fibre, 24-48 VDC

Authorised Moxa Partner

SKU:NPort S9450I-2S-ST-WV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

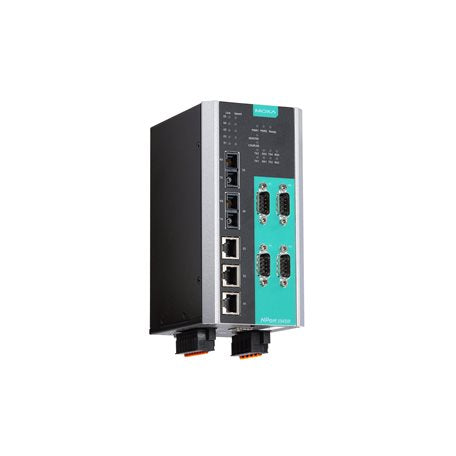

The Moxa NPort S9450I-2S-ST-WV-T is a rugged 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch, offering 3 x RJ45 and 2 x single-mode ST fibre ports. This wide-temperature model runs from -40 to 85 C on a 24-48 VDC power input, making it suited to harsh industrial environments and long-distance, noise-immune fibre links.

Four DB9 male serial ports support baud rates from 50 bps to 921.6 kbps, connecting legacy serial equipment to an Ethernet network. The 100BaseFX single-mode ST fibre ports provide long-distance uplinks, and the unit is DIN-rail mounted with surge protection for installation in control cabinets and field enclosures.

Features

- Serial-to-Ethernet device server with built-in managed Ethernet switch
- Fibre uplink options for long-distance, noise-immune links
- Wide-temperature operation for harsh environments
- DIN-rail mounting for control cabinets and field enclosures
- Surge protection for reliable industrial deployment

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- 3 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX single-mode ST fibre ports
- 1 x RJ45 RS-232 console port
- Serial baudrate 50 bps to 921.6 kbps
- 24-48 VDC power input
- Operating temperature -40 to 85 C
- DIN-rail mounting
- Width 80 mm
- Surge protection

FAQs

Q: What serial interfaces does the NPort S9450I-2S-ST-WV-T support?
A: It has four DB9 male serial ports, each supporting RS-232, RS-422 and RS-485, with baud rates from 50 bps to 921.6 kbps.

Q: What type of fibre ports does this model have?
A: It has two 100BaseFX single-mode ST fibre ports, alongside three 10/100BaseT(X) RJ45 Ethernet ports.

Q: What power input does this model use?
A: It accepts a 24-48 VDC power input.

Q: What temperature range can it operate in?
A: The WV-T wide-temperature model operates from -40 to 85 C, suitable for harsh industrial environments.

Q: How is the NPort S9450I-2S-ST-WV-T mounted?
A: It is DIN-rail mounted and is 80 mm wide, for installation in control cabinets and enclosures.

Q: Does it include a built-in Ethernet switch?
A: Yes. It combines the serial device server with a managed Ethernet switch, providing three RJ45 and two single-mode ST fibre ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
