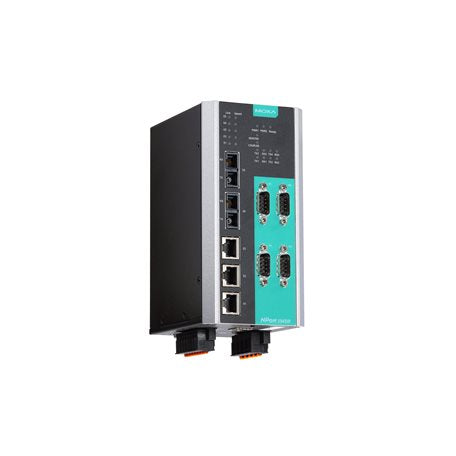

Moxa NPort S9450I-2S-SC-WV-T | NPort S9450I 4-Port Rugged Serial Device Server, 2x SC SM Fibre, 24/48VDC

Authorised Moxa Partner

SKU:NPort S9450I-2S-SC-WV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort S9450I-2S-SC-WV-T is a rugged 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch. This variant provides 3 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX single-mode SC fibre ports, runs on 24/48 VDC with dual power inputs, and operates across a -40 to 85°C temperature range, making it suited to electrical substations and other harsh industrial environments.

Support for DNP3, Modbus and IEC 61850 MMS protocols, together with IEC 61850-3 and IEEE 1613 compliance, makes it a strong fit for power utility automation. Ethernet redundancy through Turbo Ring, Turbo Chain and RSTP/STP, plus Real COM and TTY drivers for Windows, Linux and macOS, simplify integration into existing SCADA and serial networks.

Features

- Supports DNP3 and Modbus protocols
- Supports IEC 61850 MMS protocol
- IEC 61850-3 and IEEE 1613 compliant for power substations
- Ethernet redundancy with Turbo Ring, Turbo Chain and RSTP/STP
- Security features based on IEC 62443 and NERC CIP
- Real COM and TTY drivers for Windows, Linux and macOS
- Automatic Data Direction Control (ADDC) for RS-485

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- 3 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX single-mode SC fibre ports
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Serial isolation 2 kV, surge protection 4 kV
- Built-in magnetic isolation protection 1.5 kV
- 2 digital inputs, 2 alarm contact channels
- Input voltage 24/48 VDC (18 to 72 VDC), dual power inputs, reverse polarity protection
- Input current 520 mA @ 24 VDC
- Operating temperature -40 to 85°C
- Metal housing, 80 x 160 x 109 mm, 2.54 kg
- MTBF 347,436 hrs (Telcordia SR-332)

FAQs

Q: What type of fibre ports does the NPort S9450I-2S-SC-WV-T have?
A: It has 2 x 100BaseFX single-mode SC fibre ports, alongside 3 x 10/100BaseT(X) RJ45 ports.

Q: What power input does this model use?
A: The WV variant runs on 24/48 VDC (18 to 72 VDC) with dual power inputs and reverse polarity protection.

Q: Is it suitable for electrical substations?
A: Yes. It is IEC 61850-3 and IEEE 1613 compliant and supports DNP3, Modbus and IEC 61850 MMS protocols.

Q: What is the operating temperature range?
A: The -T variant operates from -40 to 85°C, suitable for extreme industrial environments.

Q: Which operating systems are supported for Real COM and TTY drivers?
A: Drivers are available for Windows, Linux and macOS.

Q: Does it support Ethernet redundancy?
A: Yes. It supports Turbo Ring, Turbo Chain and RSTP/STP for network redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
