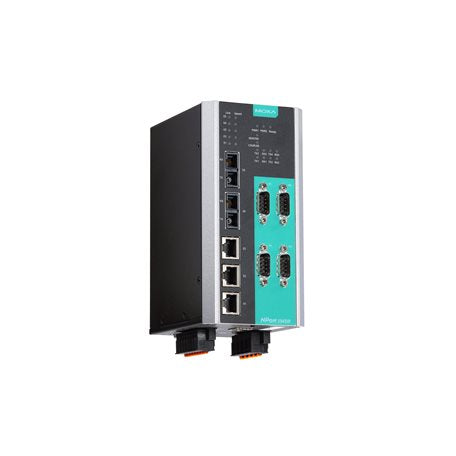

• Moxa NPort S9450I-2M-ST-WV-T 4-port RS232/422/485 rugged device server front view
1 1

Moxa

Moxa NPort S9450I-2M-ST-WV-T | NPort S9450I 4-Port Serial Device Server, 2x ST Fibre, 24/48 VDC

Moxa NPort S9450I-2M-ST-WV-T | NPort S9450I 4-Port Serial Device Server, 2x ST Fibre, 24/48 VDC

Authorised Moxa Partner

NPort S9450I-2M-ST-WV-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort S9450I-2M-ST-WV-T is a rugged 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch, built for electrical substations and harsh industrial environments. This variant provides 3 x 10/100BaseT(X) RJ45 ports and 2 x multi-mode ST fibre ports, powered from a 24/48 VDC input (18 to 72 VDC) with dual power inputs for redundancy.

IEC 61850-3 and IEEE 1613 compliance, a metal housing, DIN-rail mounting and a -40 to 85°C operating range suit it to power utility and process automation sites. It supports Real COM, RFC2217, TCP and UDP operation modes plus Modbus and DNP3 gateway functions, with Turbo Ring, Turbo Chain and RSTP for Ethernet redundancy.

Features

- 4-port RS-232/422/485 serial interface
- Built-in managed Ethernet switch with 3 RJ45 and 2 multi-mode ST fibre ports
- Modbus TCP and DNP3 TCP support, including Modbus/DNP3 gateway operation
- IEC 61850 MMS protocol support
- Ethernet redundancy with Turbo Ring v1/v2, Turbo Chain and RSTP
- Real COM/TTY drivers for Windows and Linux
- Security features based on IEC 62443/NERC CIP, including HTTPS/SSL, SSH, RADIUS and TACACS+
- Dual power inputs for redundancy
- 40 to 85°C wide operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- 3 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX multi-mode ST fibre ports, typical distance 4 km (OM1 50/125 µm, 1300 nm)
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Serial isolation 2 kV, serial surge protection 4 kV
- 24/48 VDC input (18 to 72 VDC), dual power inputs, reverse polarity protection
- Input current: 520 mA @ 24 VDC
- 2 digital input channels and 2 alarm contact channels
- Operating temperature: -40 to 85°C
- IEC 61850-3 and IEEE 1613 compliant
- UL/cUL Class I Division 2 Groups A/B/C/D
- Metal housing, DIN-rail mounting, wall mounting with optional kit
- Dimensions: 80 x 160 x 109 mm, weight 2.54 kg
- MTBF: 347,436 hrs (Telcordia SR332)

FAQs

Q: What fibre ports does the NPort S9450I-2M-ST-WV-T have?
A: It has 2 x 100BaseFX multi-mode ST fibre ports with a typical distance of 4 km over OM1 50/125 µm fibre at 1300 nm, plus 3 x 10/100BaseT(X) RJ45 ports.

Q: What power input does this model use?
A: It takes 24/48 VDC (18 to 72 VDC) through a removable 5-contact terminal block. It has two power inputs for redundancy and reverse polarity protection.

Q: Which serial interfaces and operation modes are supported?
A: The 4 DB9 male ports support RS-232, RS-422 and RS-485. Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3 and DNP3 Raw Socket.

Q: Is it suitable for electrical substations?
A: Yes. It is IEC 61850-3 and IEEE 1613 compliant, supports IEC 61850 MMS, and has a -40 to 85°C operating range.

Q: What Ethernet redundancy options are available?
A: It supports RSTP, Turbo Ring v1, Turbo Ring v2 and Turbo Chain for redundant Ethernet network designs.

Q: How is the unit mounted?
A: It has a metal housing for DIN-rail mounting, and wall mounting is available with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
