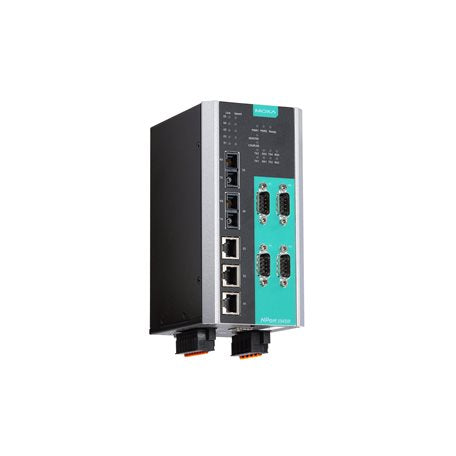

• Moxa NPort S9450I-2M-ST-HV-T rugged device server front view with black teal panel
1 1

Moxa

Moxa NPort S9450I-2M-ST-HV-T | NPort S9450I 4-Port RS-232/422/485 Serial Device Server, 2x MM ST Fibre, HV

Moxa NPort S9450I-2M-ST-HV-T | NPort S9450I 4-Port RS-232/422/485 Serial Device Server, 2x MM ST Fibre, HV

Authorised Moxa Partner

NPort S9450I-2M-ST-HV-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort S9450I-2M-ST-HV-T is a rugged 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch, designed for industrial and power substation networks. It provides 3 x 10/100BaseT(X) ports and 2 x multi-mode 100BaseFX fibre ports with ST connectors, and this high-voltage model runs from a 110/220 VAC/VDC supply across a -40 to 85°C operating range.

Supporting Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus and DNP3 operation modes, it connects legacy serial equipment to Ethernet and fibre networks. Turbo Ring, Turbo Chain and RSTP redundancy, dual power inputs, 2 kV serial isolation and a DIN-rail metal housing suit demanding field and substation deployments.

Features

- Combo device server with a built-in 3-port managed Ethernet switch and 2 fibre ports
- Turbo Ring v1/v2, Turbo Chain and RSTP network redundancy
- Dual power inputs with reverse polarity protection
- Modbus and DNP3 gateway modes
- Real COM, RFC2217, TCP Client, TCP Server and UDP operation modes
- Rugged metal housing for -40 to 85°C operation
- IEC 61850-3 and IEEE 1613 power substation compliance
- Class I Division 2 hazardous location certification
- Secure management with HTTPS/SSL, SSH, RADIUS and TACACS+

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- 3 x 10/100BaseT(X) ports
- 2 x 100BaseFX multi-mode fibre ports (ST connector), typical distance 4 km (OM1 50/125 µm), 1300 nm
- Input voltage: 110/220 VAC/VDC (88 to 300 VDC or 85 to 264 VAC)
- Operating temperature: -40 to 85°C
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- 2 kV serial isolation, 4 kV serial surge protection
- 2 digital inputs, 2 alarm contact channels (1 A @ 24 VDC)
- Dual power inputs with reverse polarity protection
- Switch: 64 VLANs, 256 IGMP groups, 4 priority queues
- Metal housing, DIN-rail mounting (wall mounting with optional kit)
- Dimensions: 80 x 160 x 109 mm, weight 2.54 kg
- Power substation standards: IEC 61850-3, IEEE 1613
- Hazardous locations: UL/cUL Class I Division 2 Groups A/B/C/D
- MTBF: 347,436 hrs (Telcordia SR-332)

FAQs

Q: What fibre connection does the NPort S9450I-2M-ST-HV-T use?
A: It has 2 x 100BaseFX multi-mode fibre ports with ST connectors, with a typical reach of 4 km over OM1 50/125 µm fibre at 1300 nm.

Q: What power supply does this model accept?
A: This high-voltage model accepts 110/220 VAC/VDC (88 to 300 VDC or 85 to 264 VAC) and has two power inputs with reverse polarity protection.

Q: Which serial interfaces and modes are supported?
A: Each of the 4 DB9 male ports supports RS-232, RS-422 and RS-485. Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus and DNP3.

Q: Can it operate in extreme temperatures?
A: Yes. The -T model operates from -40 to 85°C and is housed in a rugged metal enclosure.

Q: Does it support network redundancy?
A: Yes. The built-in Ethernet switch supports RSTP, Turbo Ring v1, Turbo Ring v2 and Turbo Chain.

Q: How is it mounted?
A: It mounts on a DIN rail as standard, and wall mounting is possible with an optional kit.
