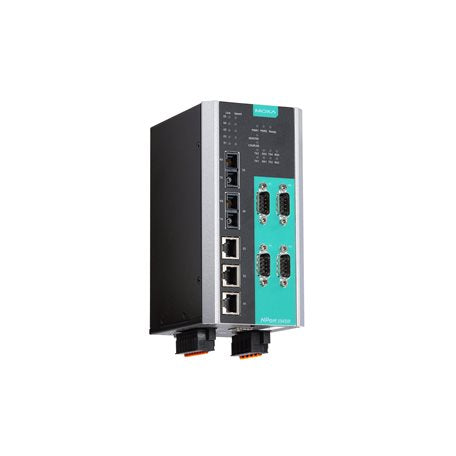

• Moxa NPort S9450I-2M-SC-WV-T rugged device server black teal front panel
1 1

Moxa

Moxa NPort S9450I-2M-SC-WV-T | NPort S9450I 4-Port Rugged Serial Device Server, Multi-Mode SC

Moxa NPort S9450I-2M-SC-WV-T | NPort S9450I 4-Port Rugged Serial Device Server, Multi-Mode SC

Authorised Moxa Partner

NPort S9450I-2M-SC-WV-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort S9450I-2M-SC-WV-T is a rugged 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch, designed for power substation and harsh industrial deployments. It combines 3 x 10/100BaseT(X) RJ45 ports with 2 x 100BaseFX multi-mode SC fibre ports, runs from 24/48 VDC dual power inputs and operates across a -40 to 85°C temperature range.

Serial ports use DB9 male connectors with 2 kV isolation and 4 kV surge protection, and support Real COM, RFC2217, TCP Client/Server, UDP, Modbus and DNP3 modes. The unit is IEC 61850-3 and IEEE 1613 compliant, includes 2 digital inputs and 2 relay alarm contacts, and supports DIN-rail mounting, with wall mounting available via an optional kit.

Features

- Built-in managed Ethernet switch with 3 RJ45 ports and 2 multi-mode SC fibre ports
- Redundancy protocols: RSTP, Turbo Ring v1/v2 and Turbo Chain
- Operation modes include Real COM, RFC2217, TCP Client/Server, UDP, Modbus and DNP3
- Modbus TCP Server (Slave) and DNP3 TCP Outstation industrial protocols
- Security: HTTPS/SSL, SSH, TACACS+ and RADIUS
- Management: CLI via Serial/Telnet/SSH, Web Console, Windows Utility, SNMPv1/v2c/v3
- Dual redundant 24/48 VDC power inputs with reverse polarity protection
- Package includes DIN-rail kit and a DB9 female to RJ45 10-pin cable

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- 3 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX multi-mode SC fibre ports, typical distance 4 km
- 24/48 VDC dual power inputs (18 to 72 VDC), reverse polarity protection
- Input current: 520 mA @ 24 VDC
- 40 to 85°C operating temperature
- 2 kV serial isolation, 4 kV serial surge
- 2 digital inputs and 2 relay alarm contacts
- Baudrate: 50 bps to 921.6 kbps
- Metal housing, 80 x 160 x 109 mm, 2.54 kg
- DIN-rail mounting, wall mounting with optional kit
- IEC 61850-3 and IEEE 1613 power substation compliant
- UL/cUL Class I Division 2 Groups A/B/C/D
- MTBF: 347,436 hrs (Telcordia SR332)
- 5-year warranty

FAQs

Q: What type of fibre does the NPort S9450I-2M-SC-WV-T support?
A: It has 2 x 100BaseFX multi-mode SC ports for OM1 50/125 µm fibre, with a typical distance of 4 km at 1300 nm.

Q: What power input does this model use?
A: It accepts 24/48 VDC (18 to 72 VDC) on two redundant inputs via a removable 5-contact terminal block, with reverse polarity protection.

Q: What operating temperature range is supported?
A: This wide-temperature model operates from -40 to 85°C, suitable for harsh industrial and substation environments.

Q: Which industrial protocols are supported?
A: Operation modes include Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus and DNP3, including Modbus TCP Server and DNP3 TCP Outstation.

Q: Is it suitable for power substation use?
A: Yes. It is IEC 61850-3 and IEEE 1613 compliant, and provides 2 kV serial isolation and 4 kV serial surge protection.

Q: How is the unit mounted?
A: It supports DIN-rail mounting using the included kit. Wall mounting is available with an optional kit.
